Caron Series C

Caron Series C

Price on Request

Get in touch to discuss the Caron Series C with CTM experts to ensure the right solution for you.

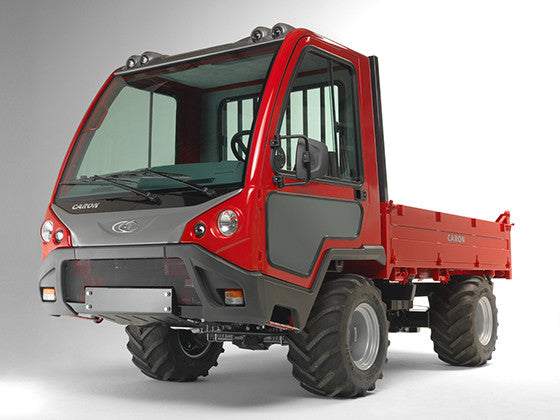

Series C is the transporter suitable for any kind of use.  For those operators who need a manageable and handy vehicle on all terrain without giving up comfort and safety.

European Approval as an agricultural tractor with a total mass of 5000 kg and towable mass of 1000 kg (unbraked) and Approved passenger seat.

Engines from 40hp up to 50hp
Max speed 40 km/h
Total approved mass of 5,000 kg
Loading capacity up to 3,200 kg

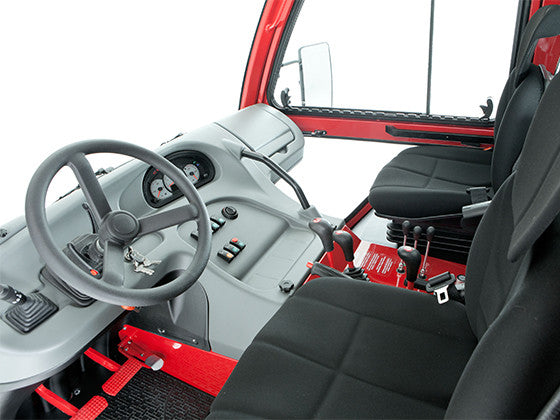

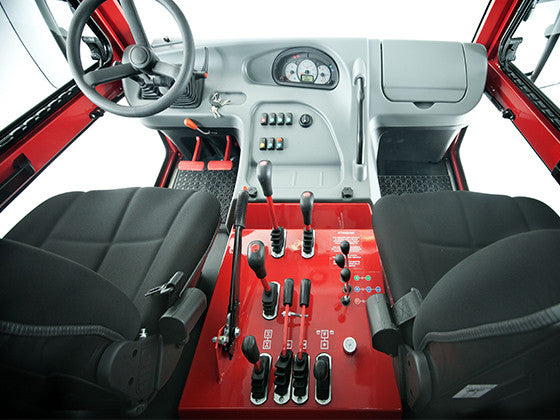

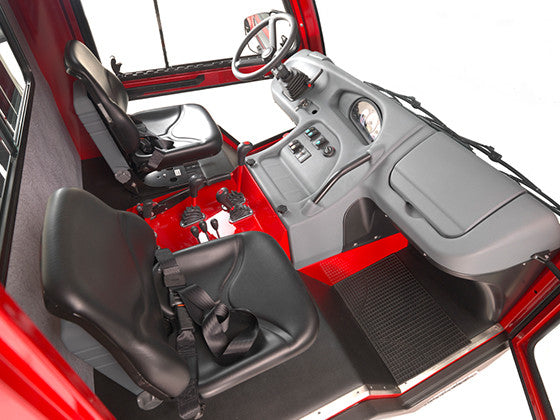

Standard Fittings include a cab (forward tipping) with doors and heating, approved as ROPS, mounted on shock absorbers and oil-silent blocks.  With sliding rear glass.  The dashboard comes complete with hour counter and warning lights.

Adjustable eco-leather seats with mechanical suspension and safety belt
Battery master switch
Toolbox
24 speed synchronised gearbox with 16 forward and 8 reverse gears, max speed 40 kph
Front and rear axle without suspension
Central joint
4x4 drive with disengagement of front drive
Rear differential lock
Hydraulic steering
Dual hydraulic braking system with floating jaws, Miniserve shoe/drum brakes acting on the 4 wheels
Parking brake is mechanical, acting on the front and rear wheels

Wheelbase: 2220 mm

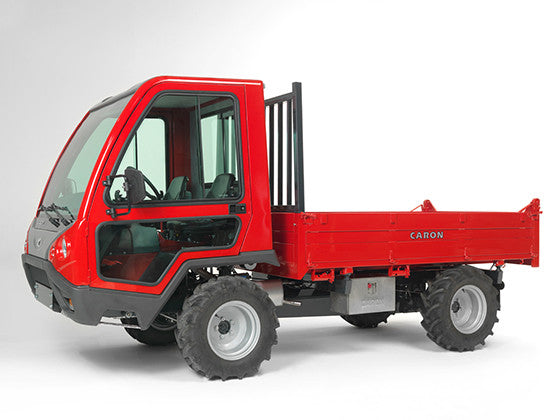

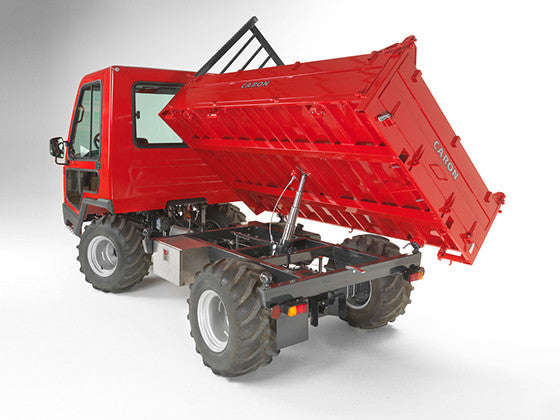

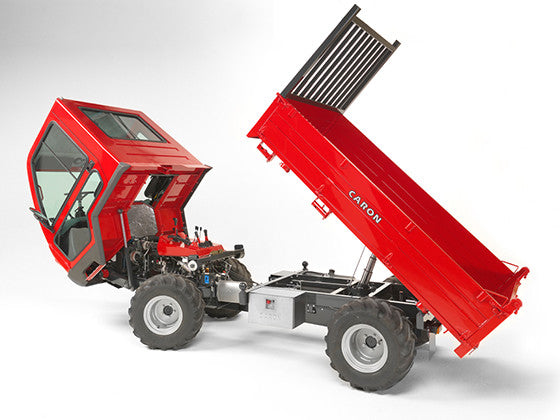

3-way hydraulic tipping body (2560x1640x400mm) with protective grille
280/17 R16 open centre tractor tyres

A truly versatile utility vehicle with many optional extras available, including:
31x15.50-15 flotation tyres in lieu of standard tyres
Central independent PTO, hyd electro clutch built into chassis

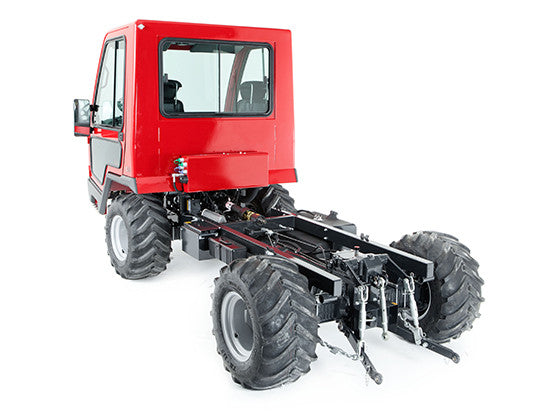

Rear 3-point linkage, 500 kg lift capacity
Delux cab with roof panel fitted with LED lights, adjustable steering column, MP3 radio with USB, fabric adjustable seats and heated mirrors

Extra hydraulics can also be fitted
Different size tipping bodies or bodies for different uses can also be fitted

Ideal for general purpose estate work, or many other jobs such as forestry, snow clearance, amenity use, and much more.
