Deleks Hydraulic Cranes for Small and Compact Tractors

Deleks Hydraulic Cranes for Small and Compact Tractors

£395.00 ex VAT / £474.00 inc VAT
£395.00
Sale Sold out
EL-300
EL-500

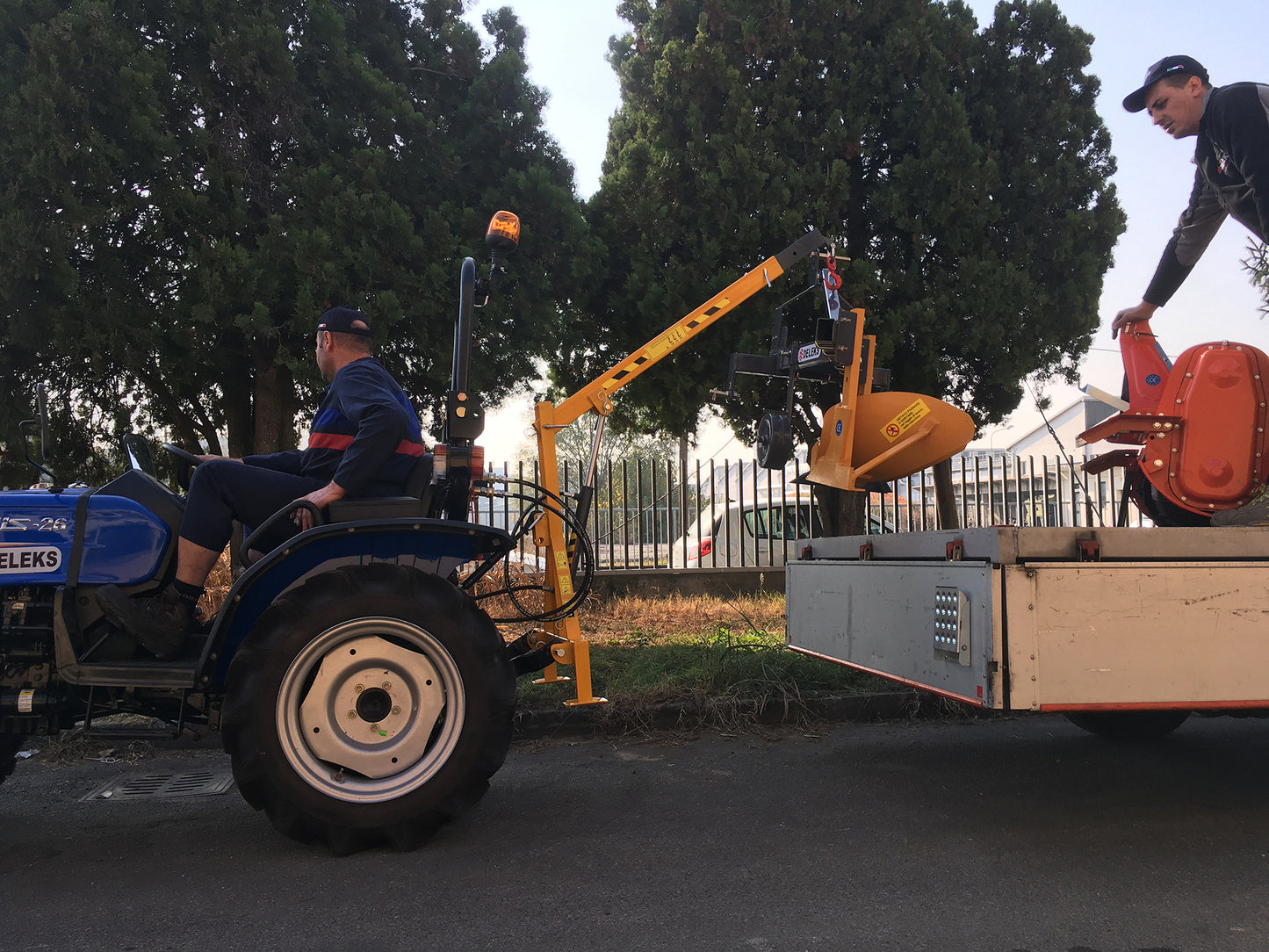

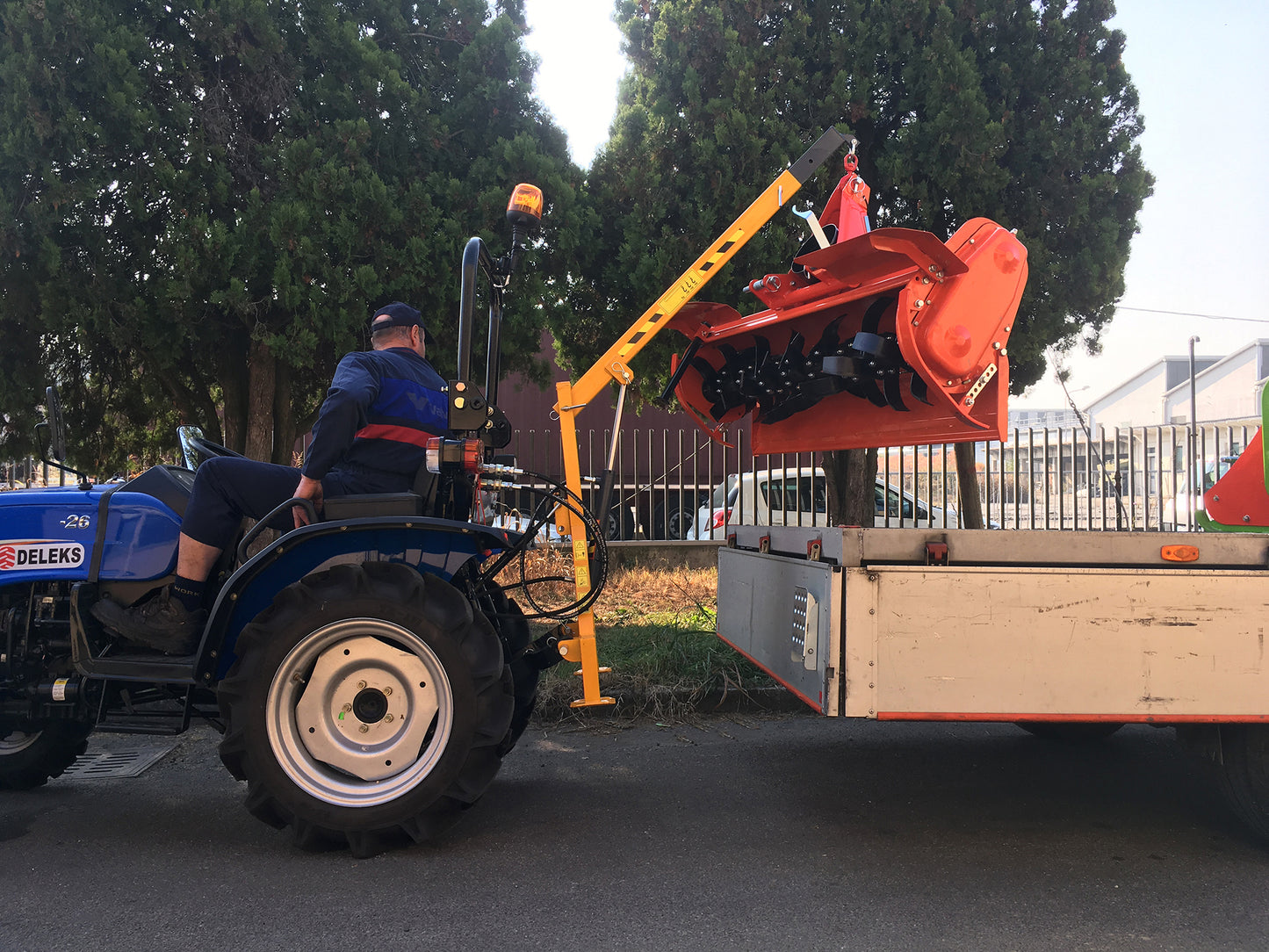

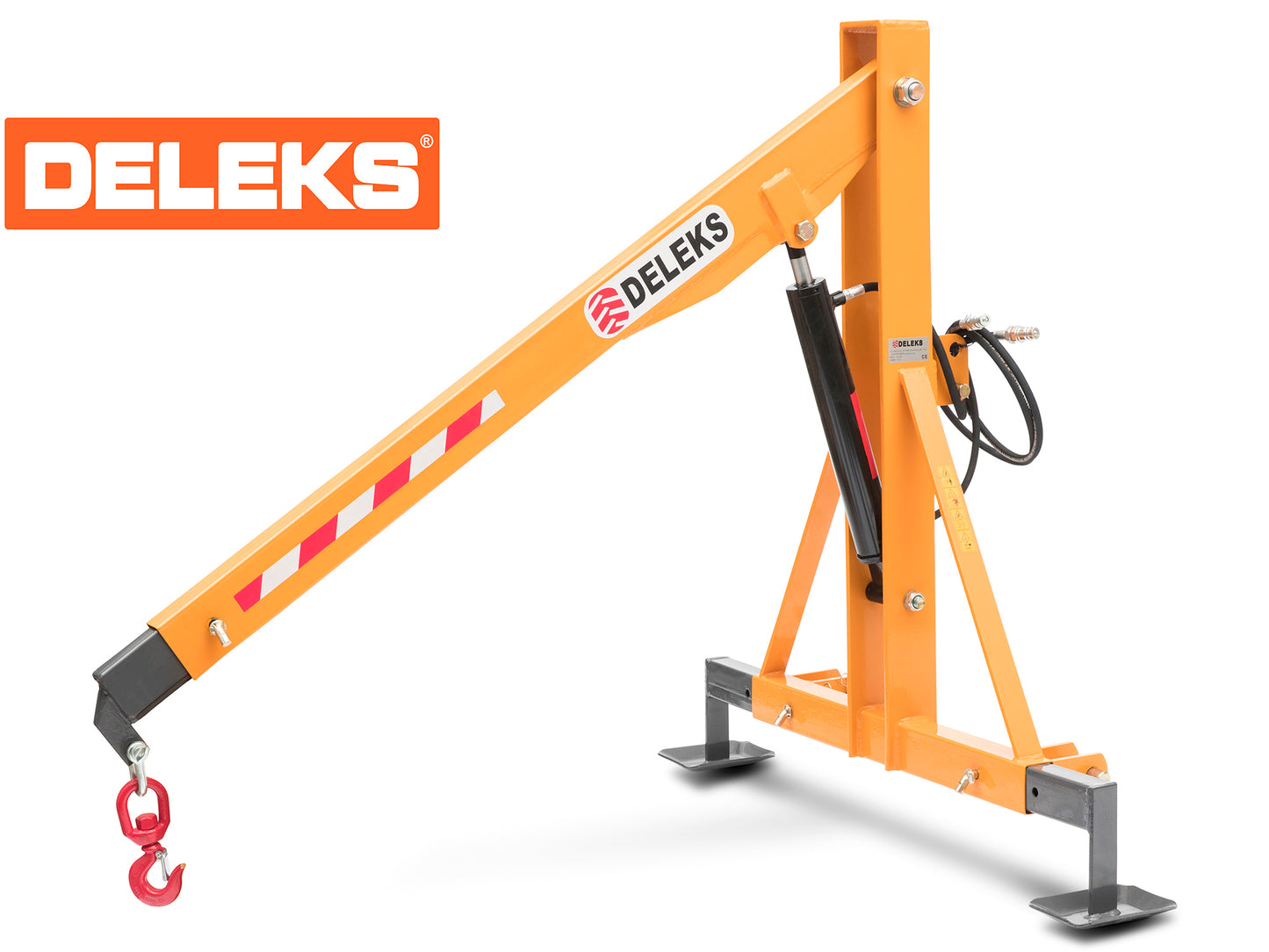

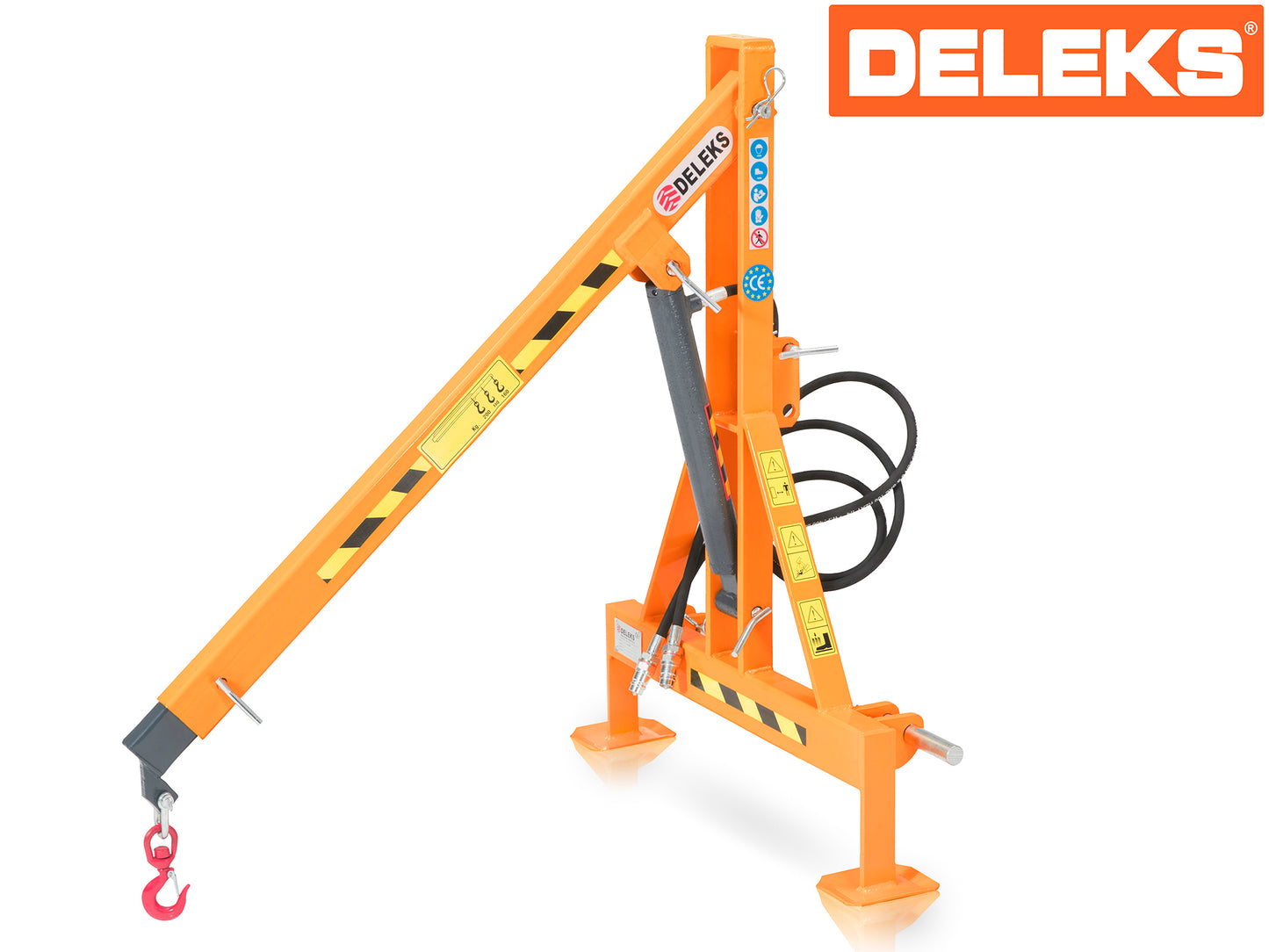

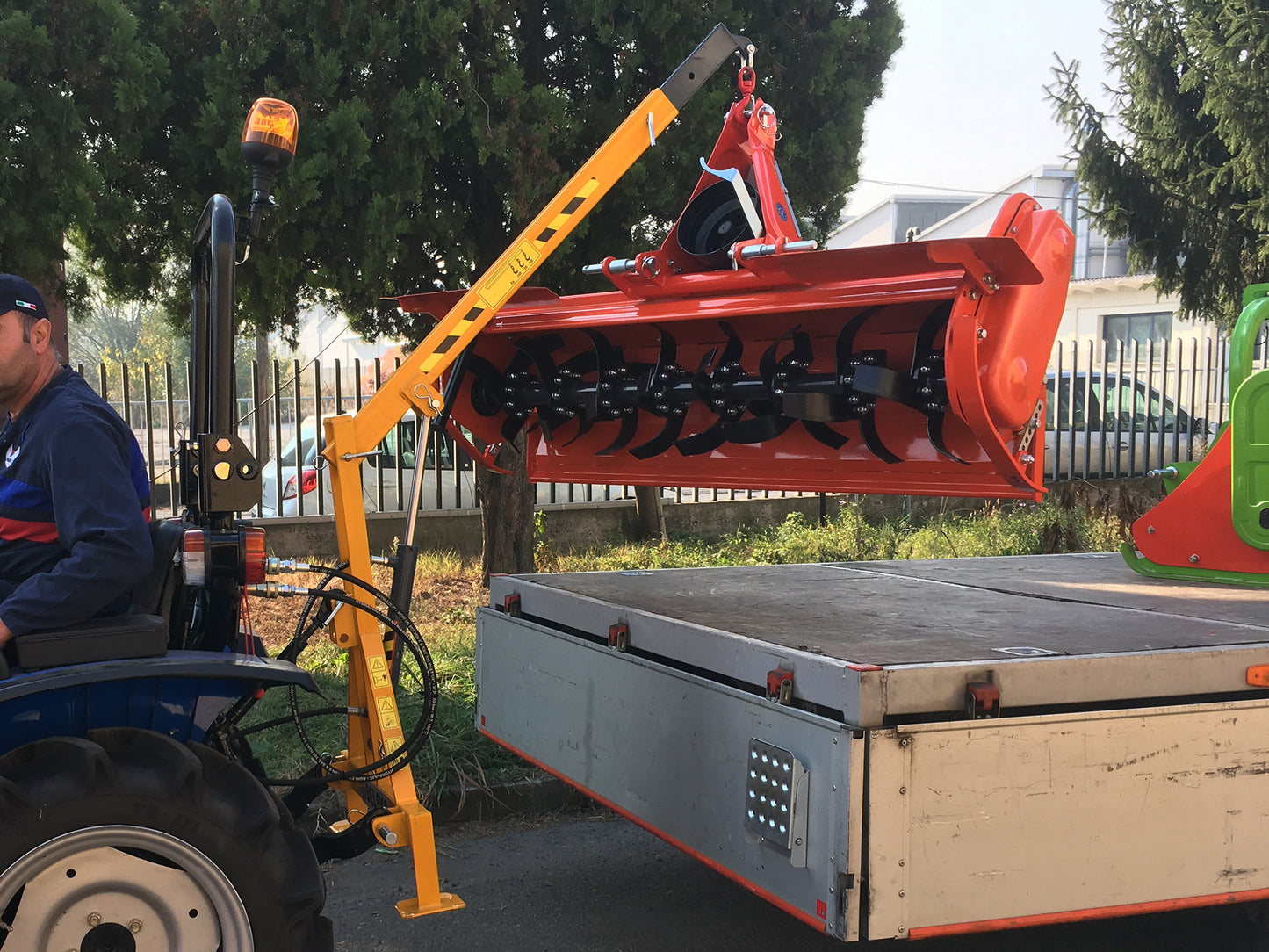

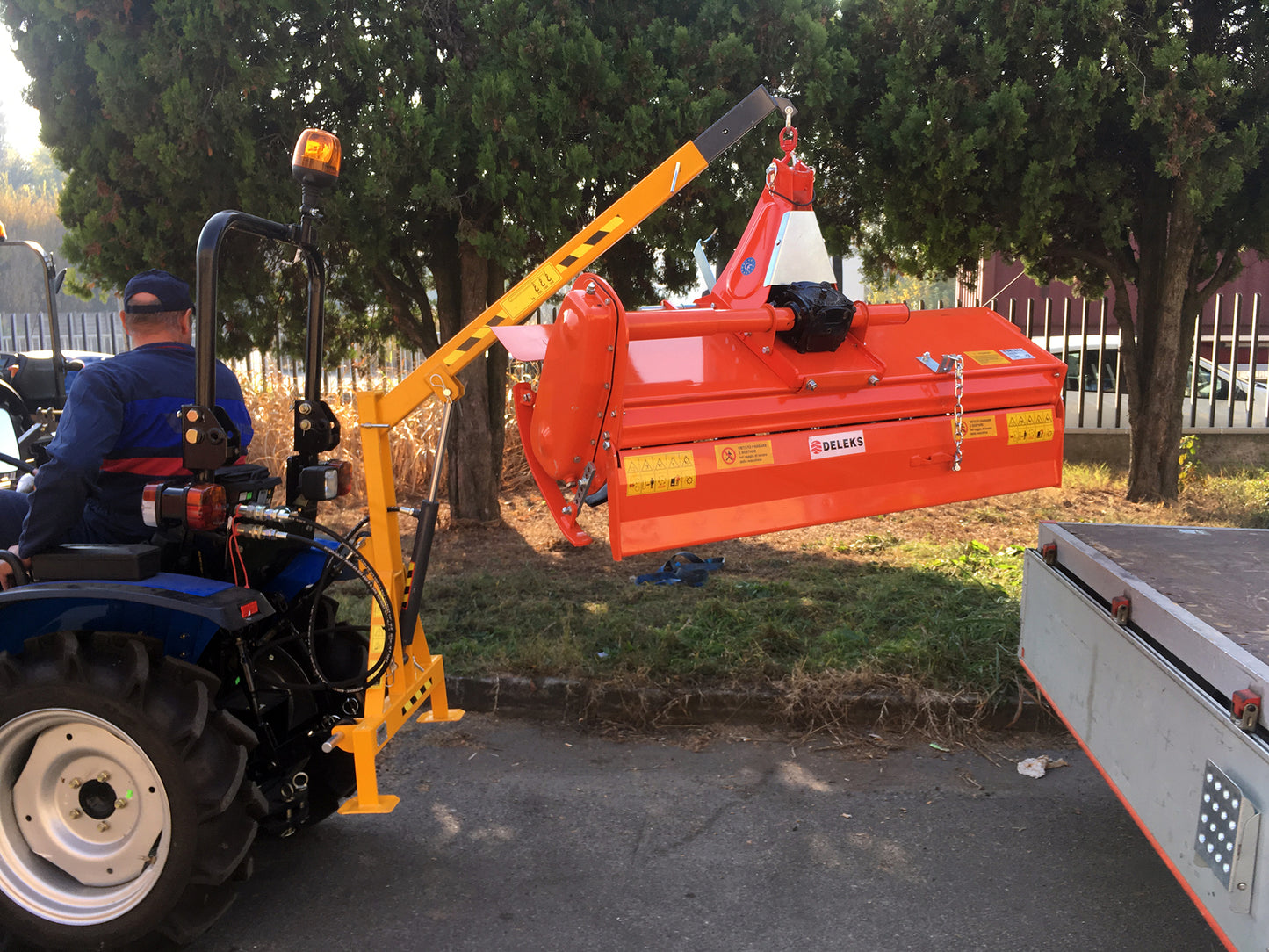

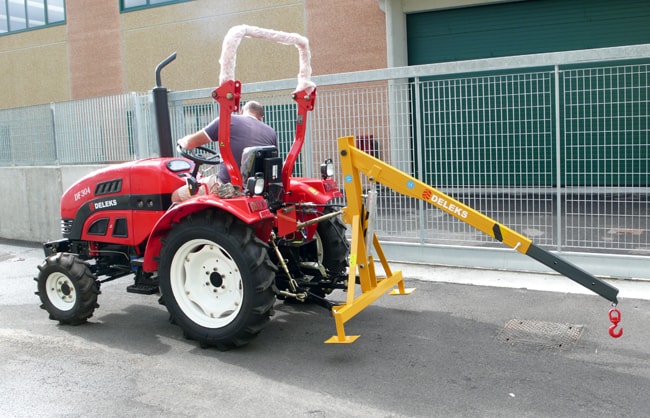

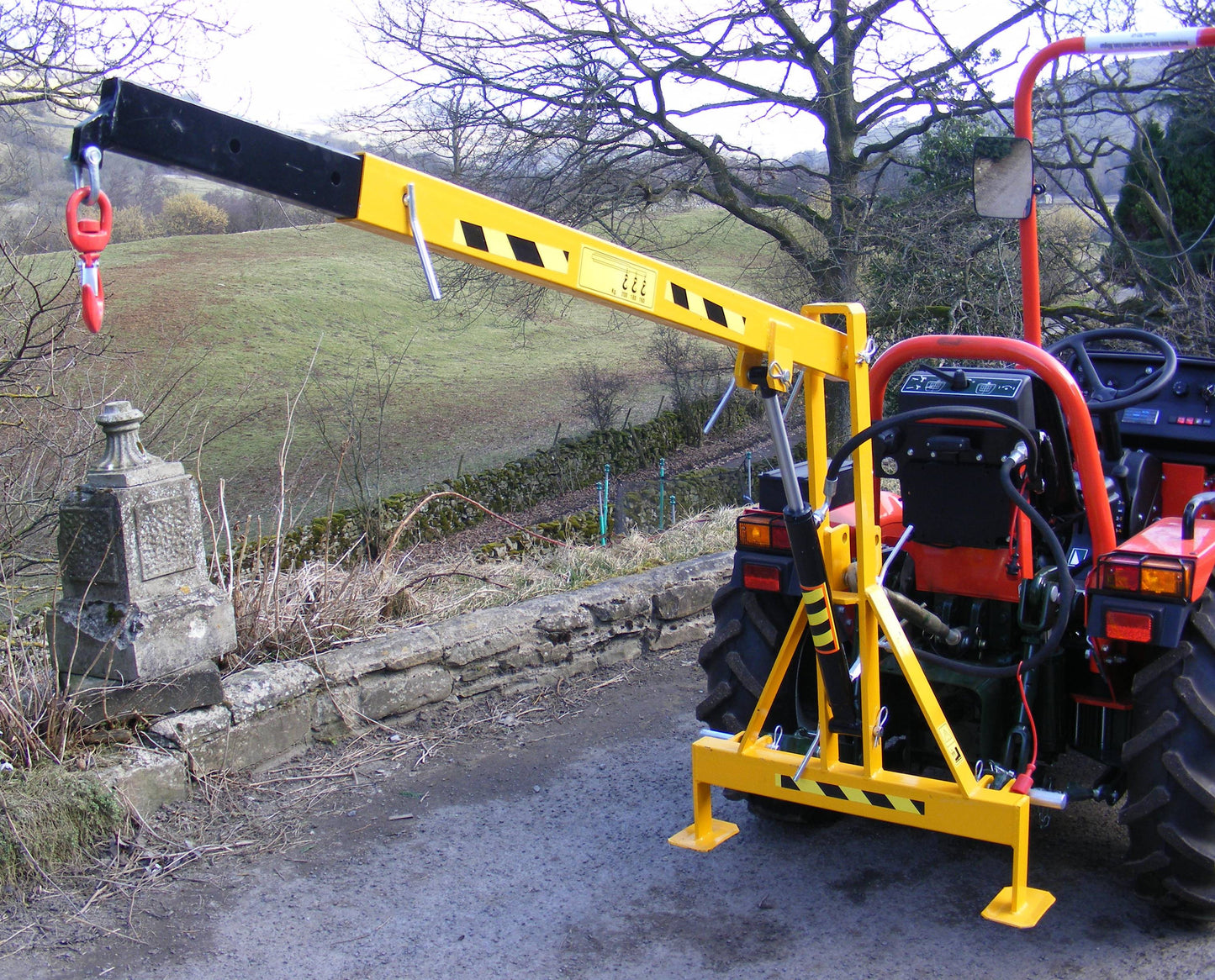

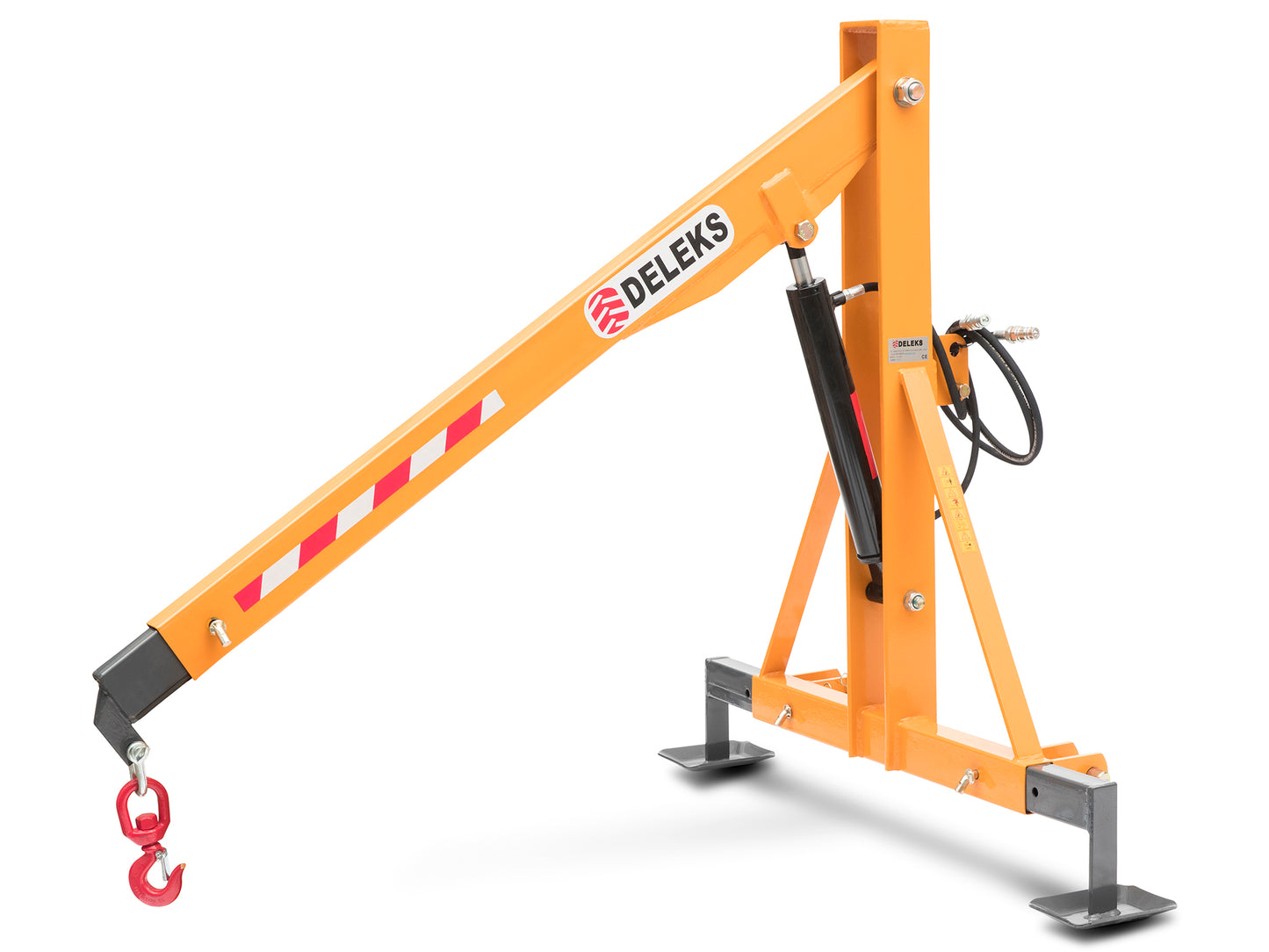

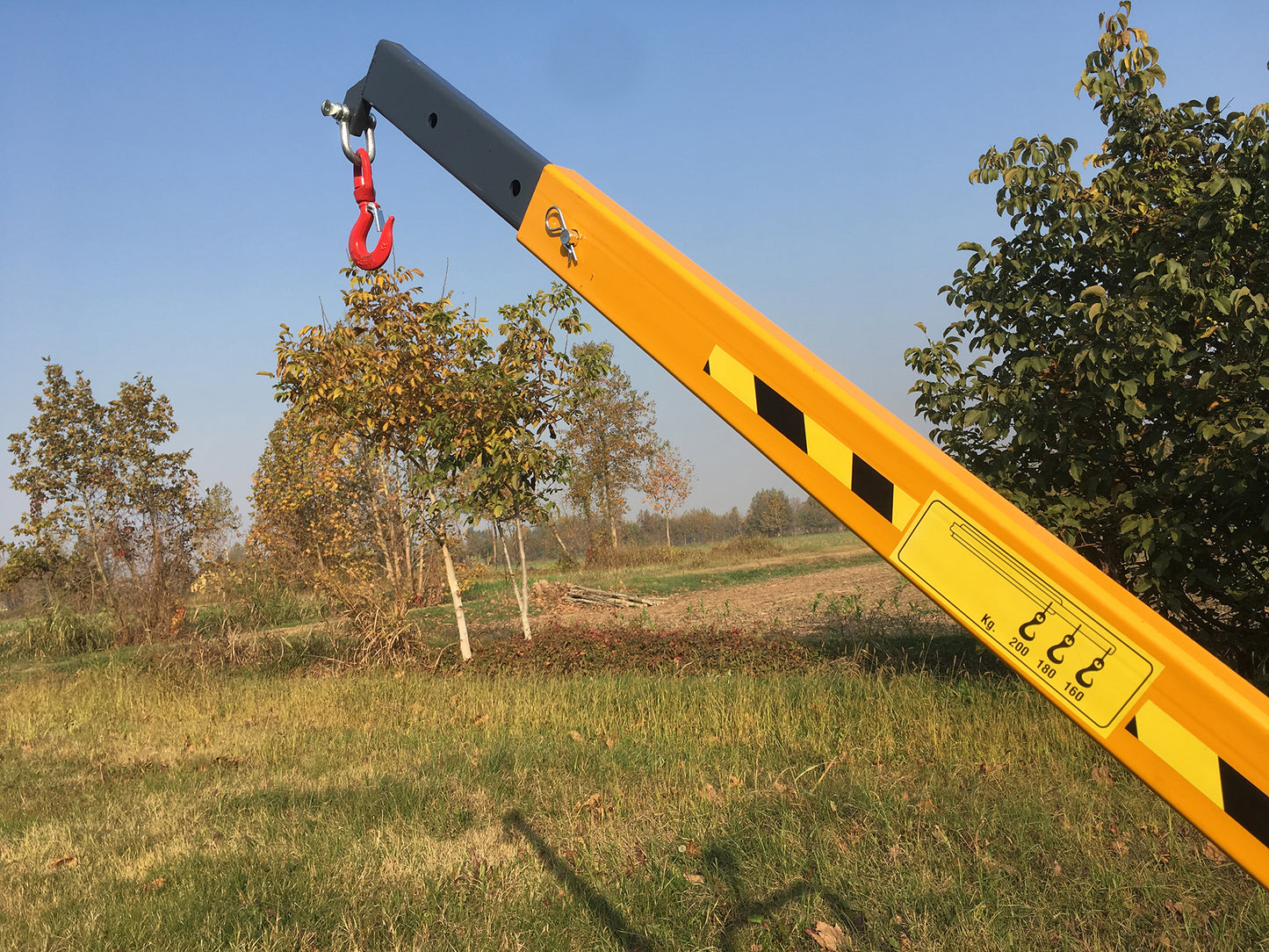

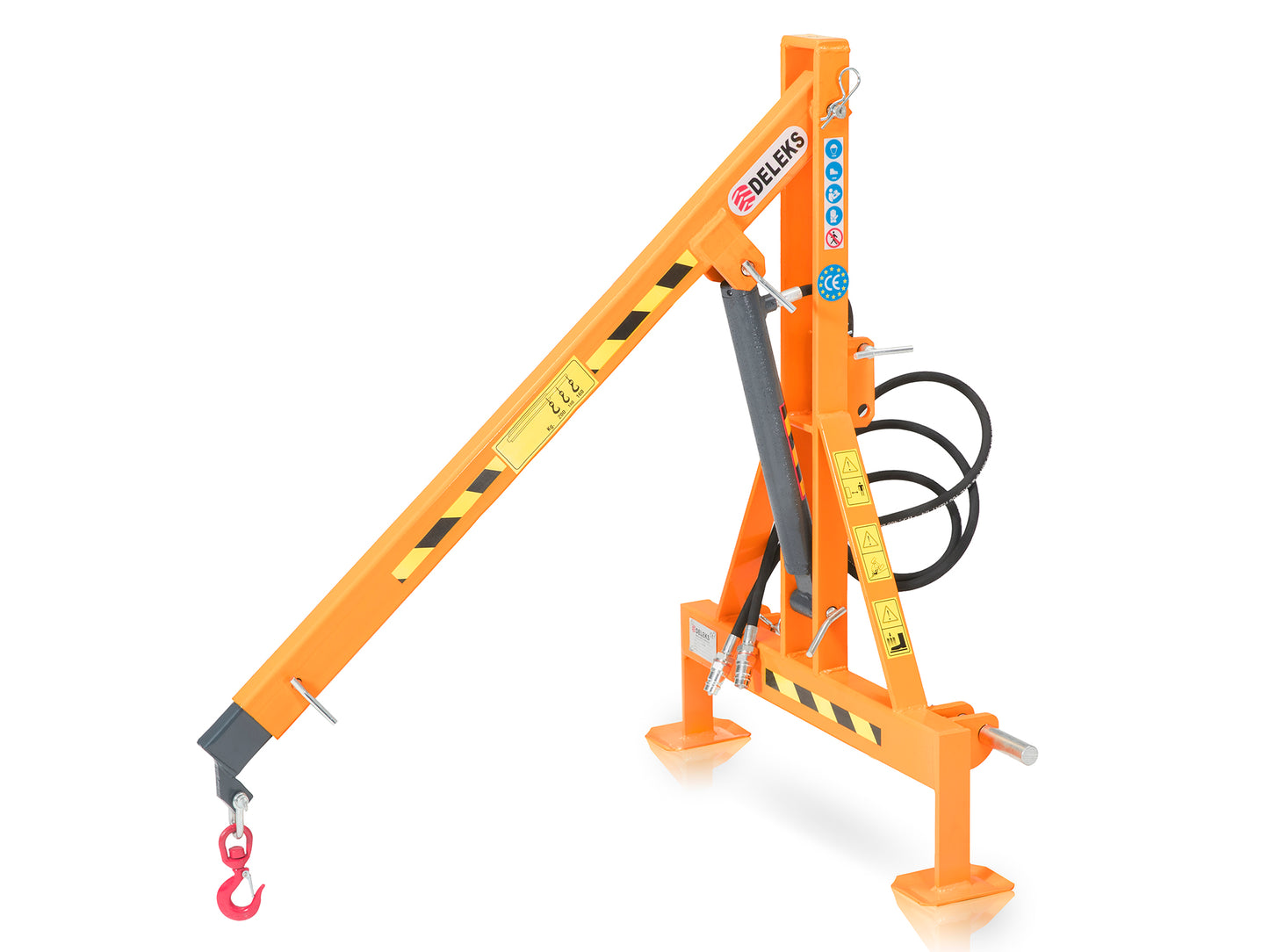

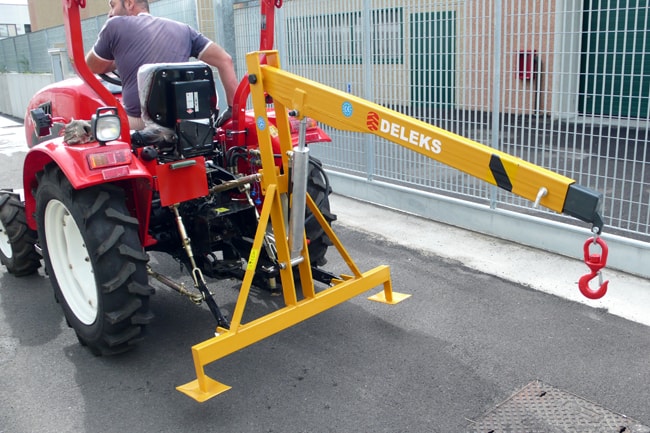

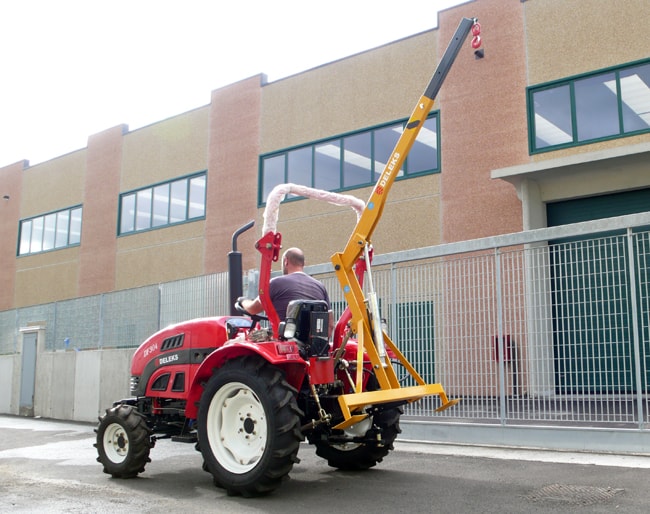

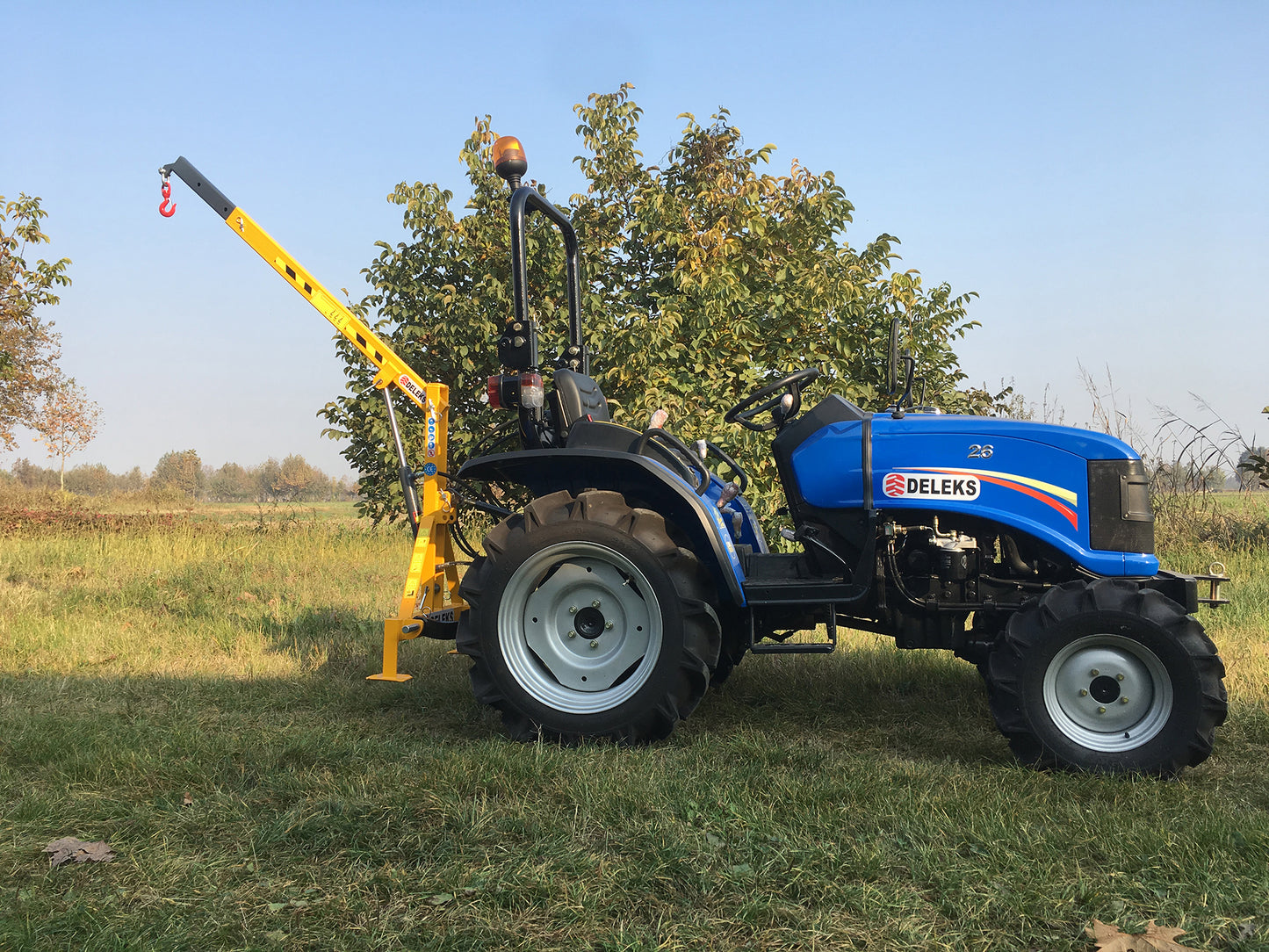

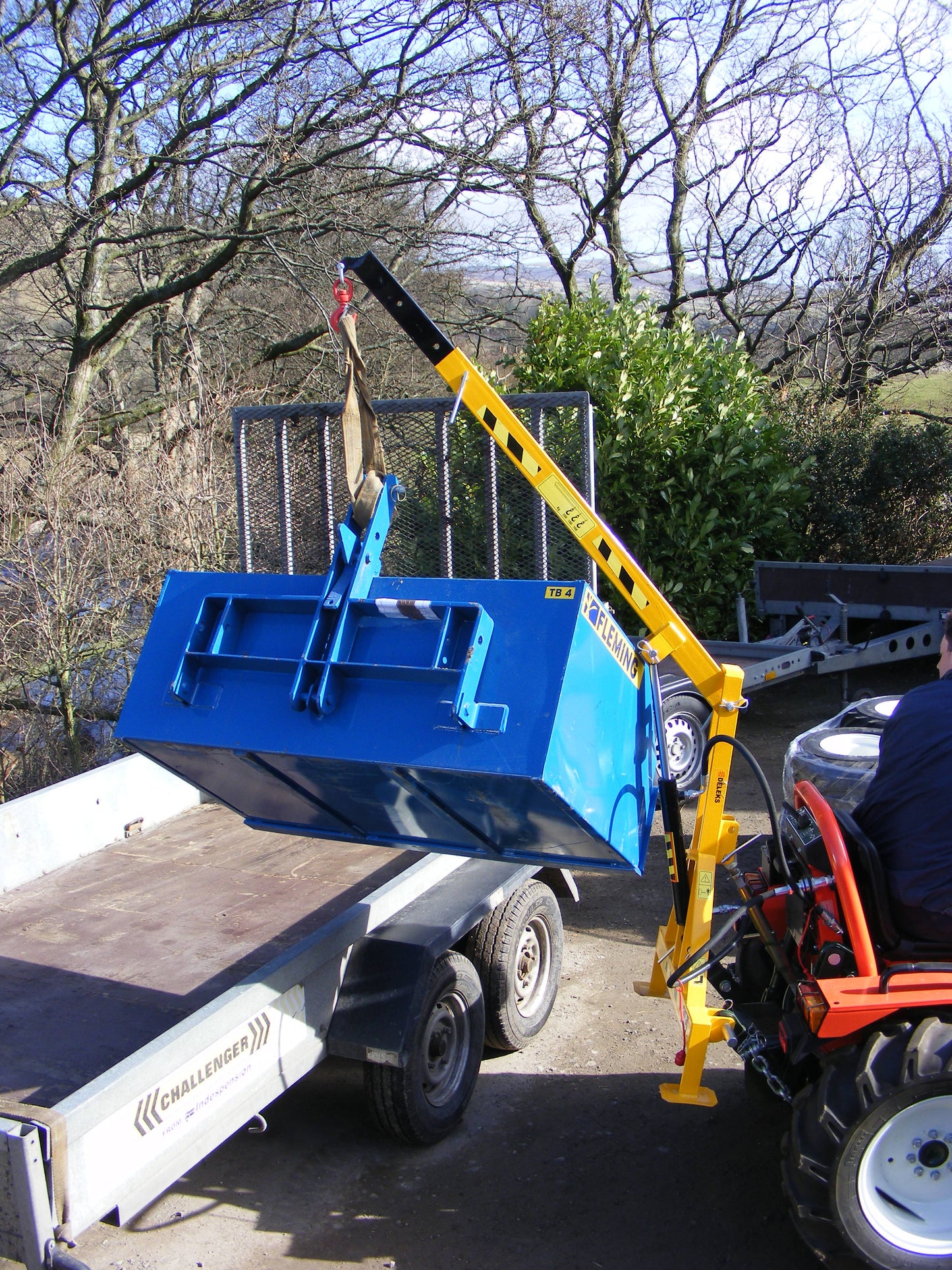

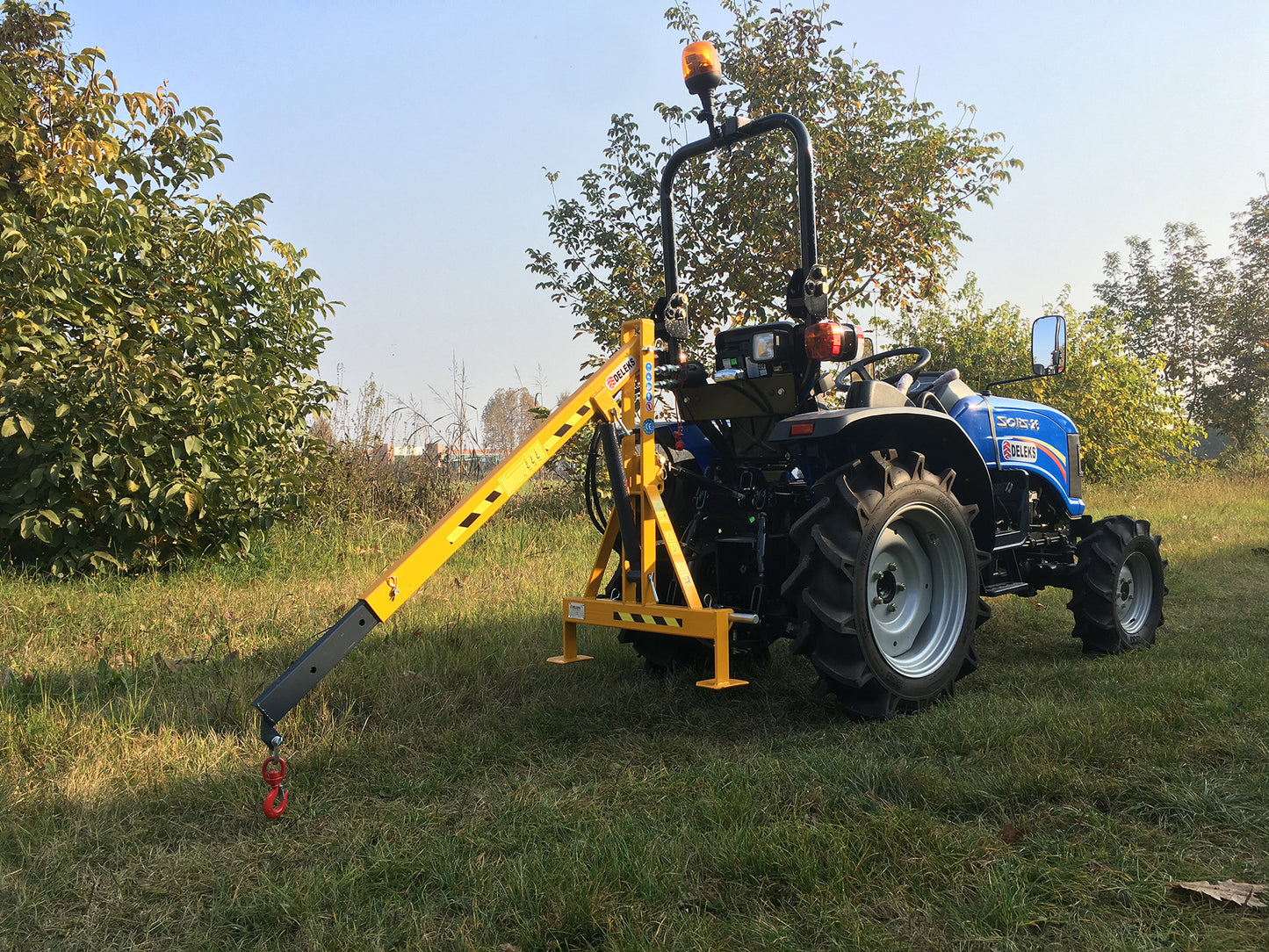

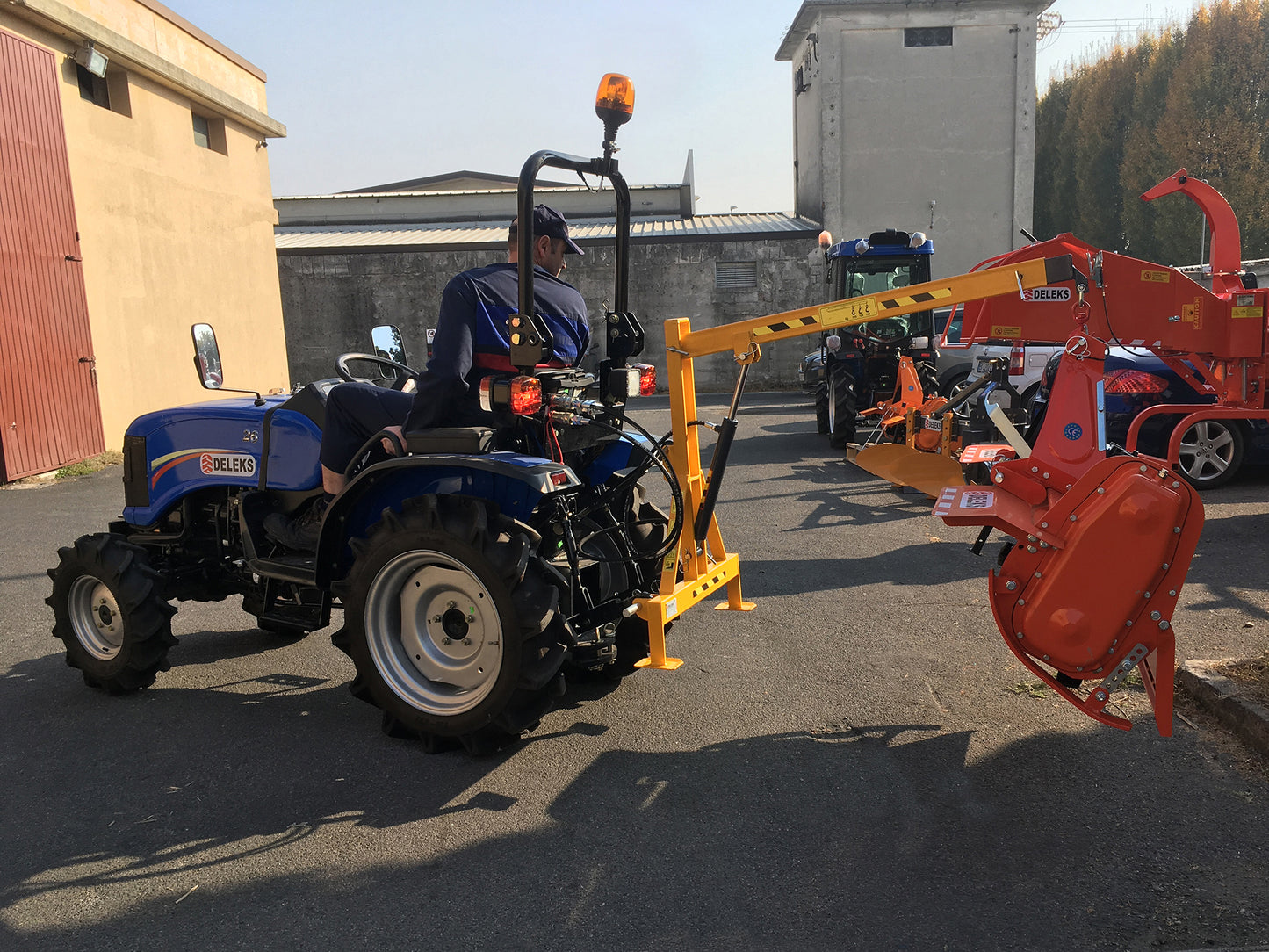

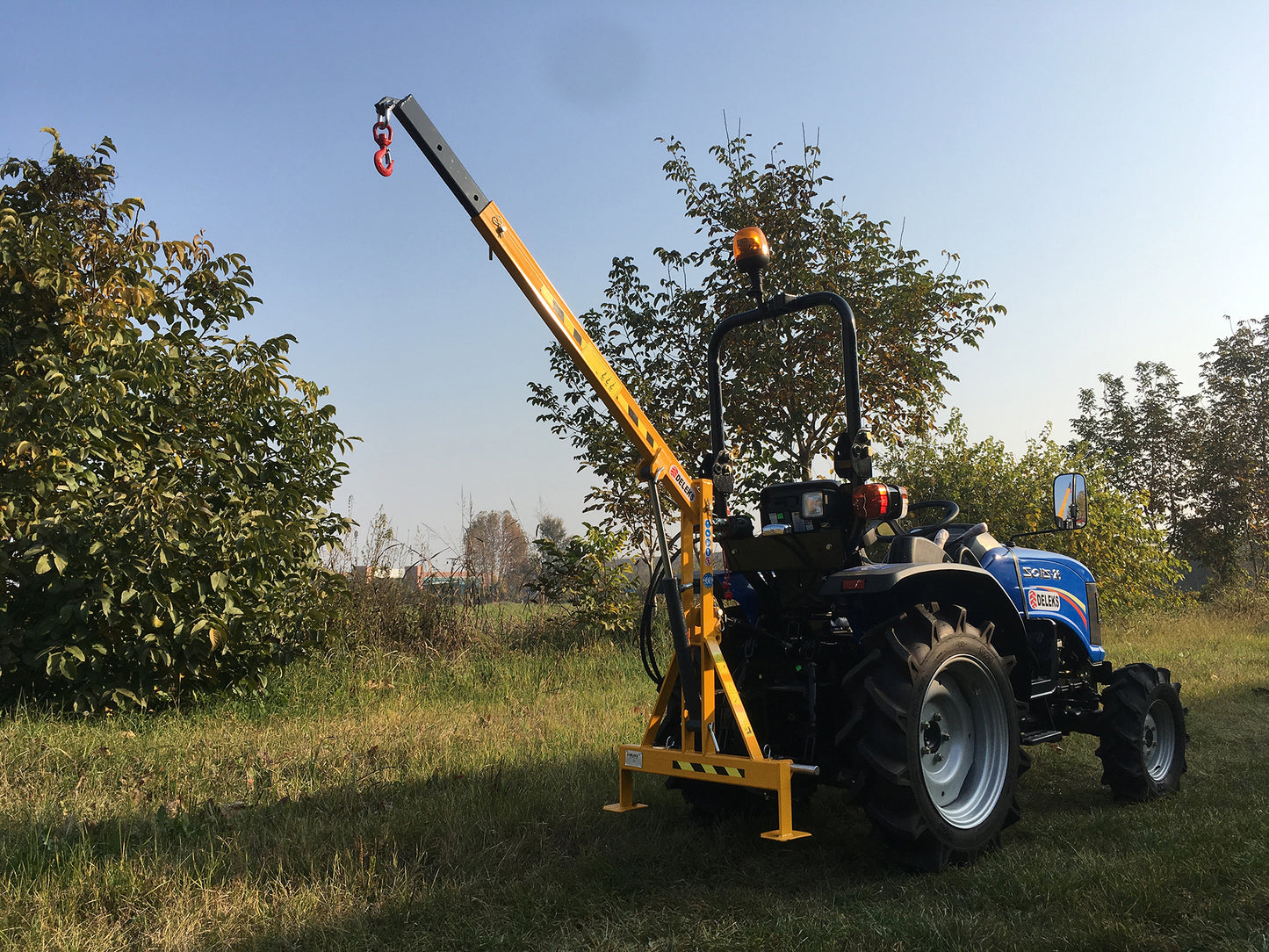

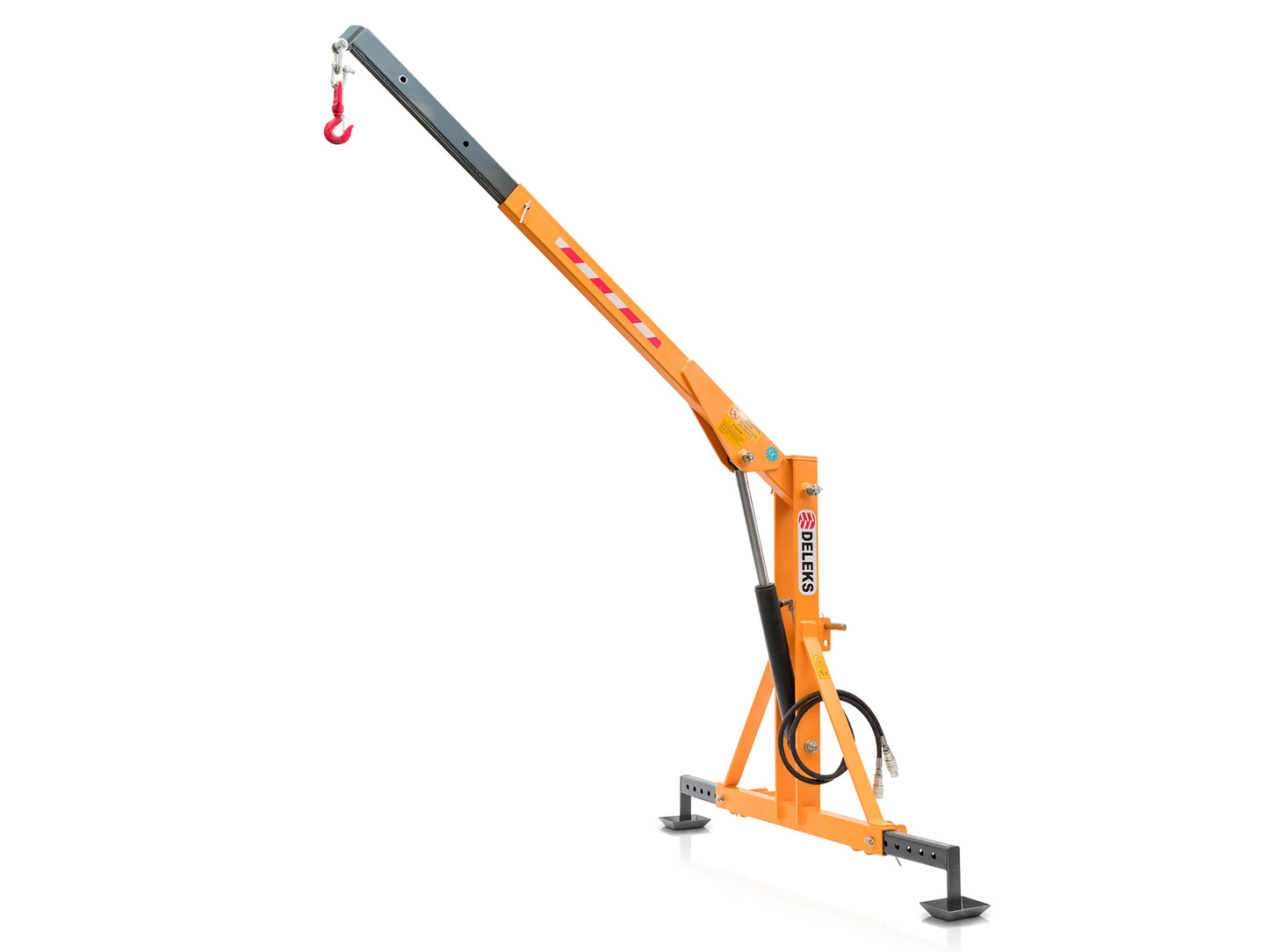

The Deleks Hydraulic Cranes for Small and Compact Tractors are designed to fit most Cat 1-2 tractors from 16hp to 60hp and feature a robust and durable steel construction. With a 3-stage extendable boom, these cranes can easily lift and move items with your tractor. Available models include the EL-300 and EL-500, with maximum elevations of 210cm and 220cm respectively (tractor lift excluded). Get the most out of your tractor with these handy and reliable cranes.

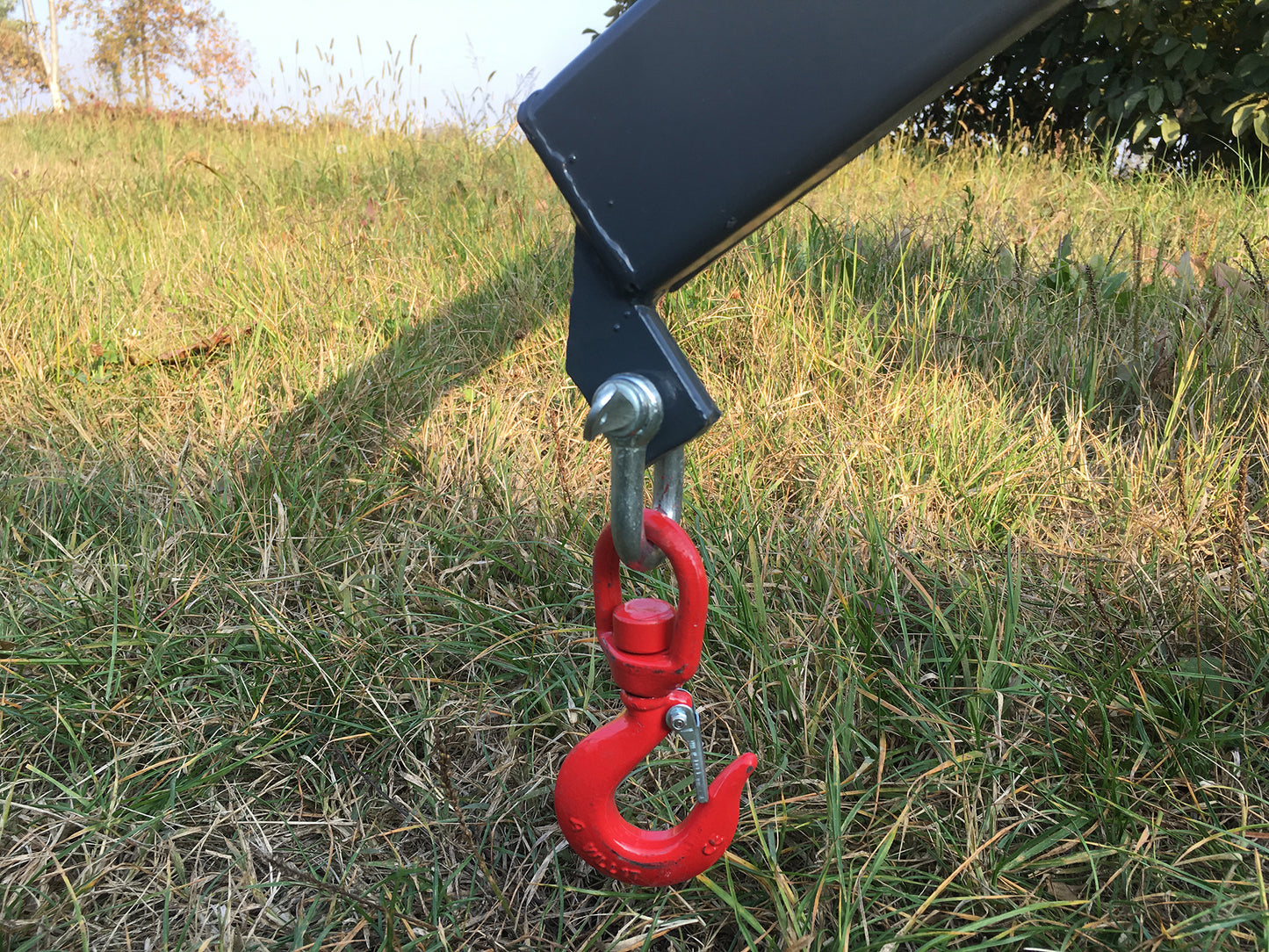

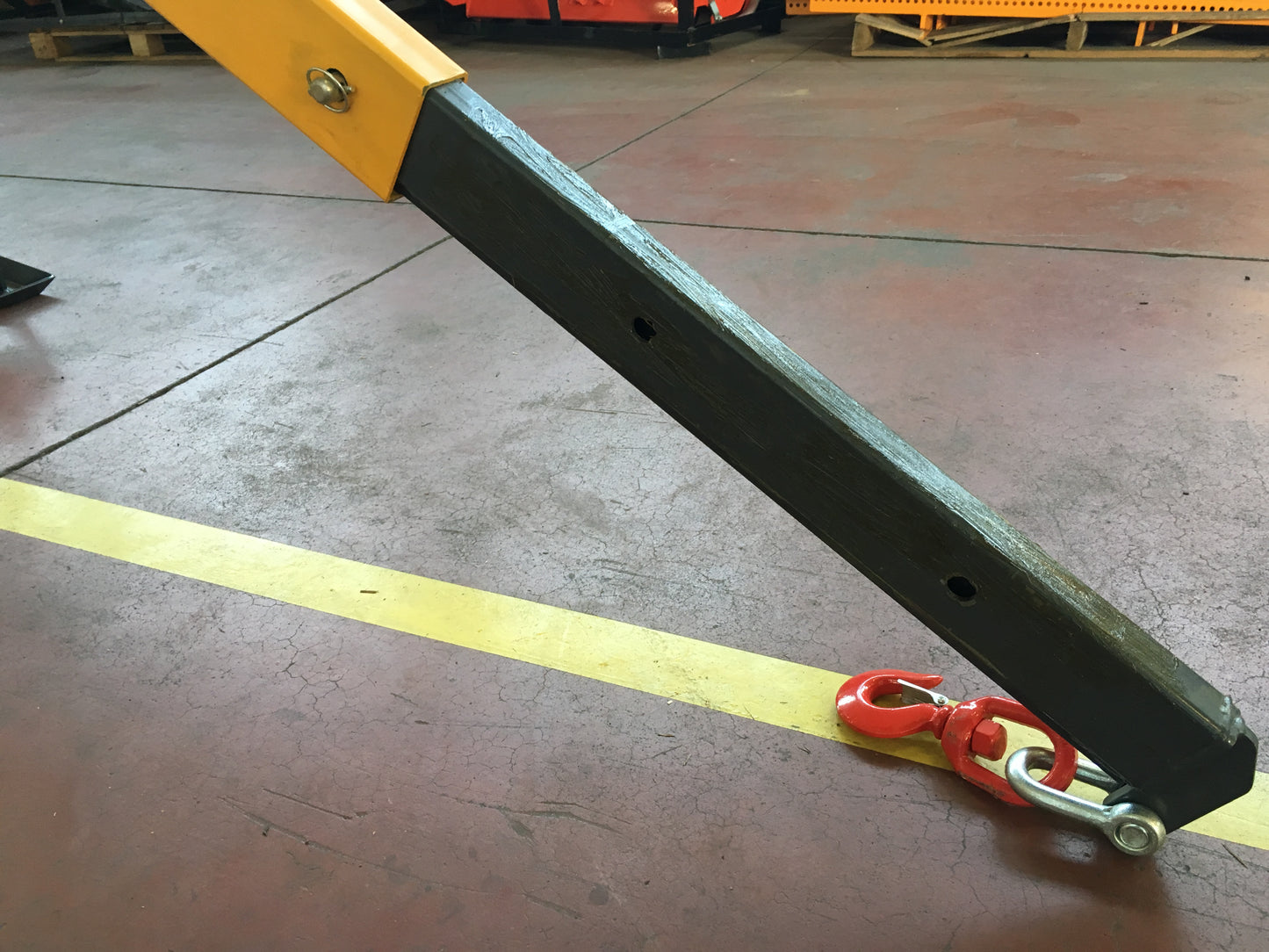

Clamp hook tip

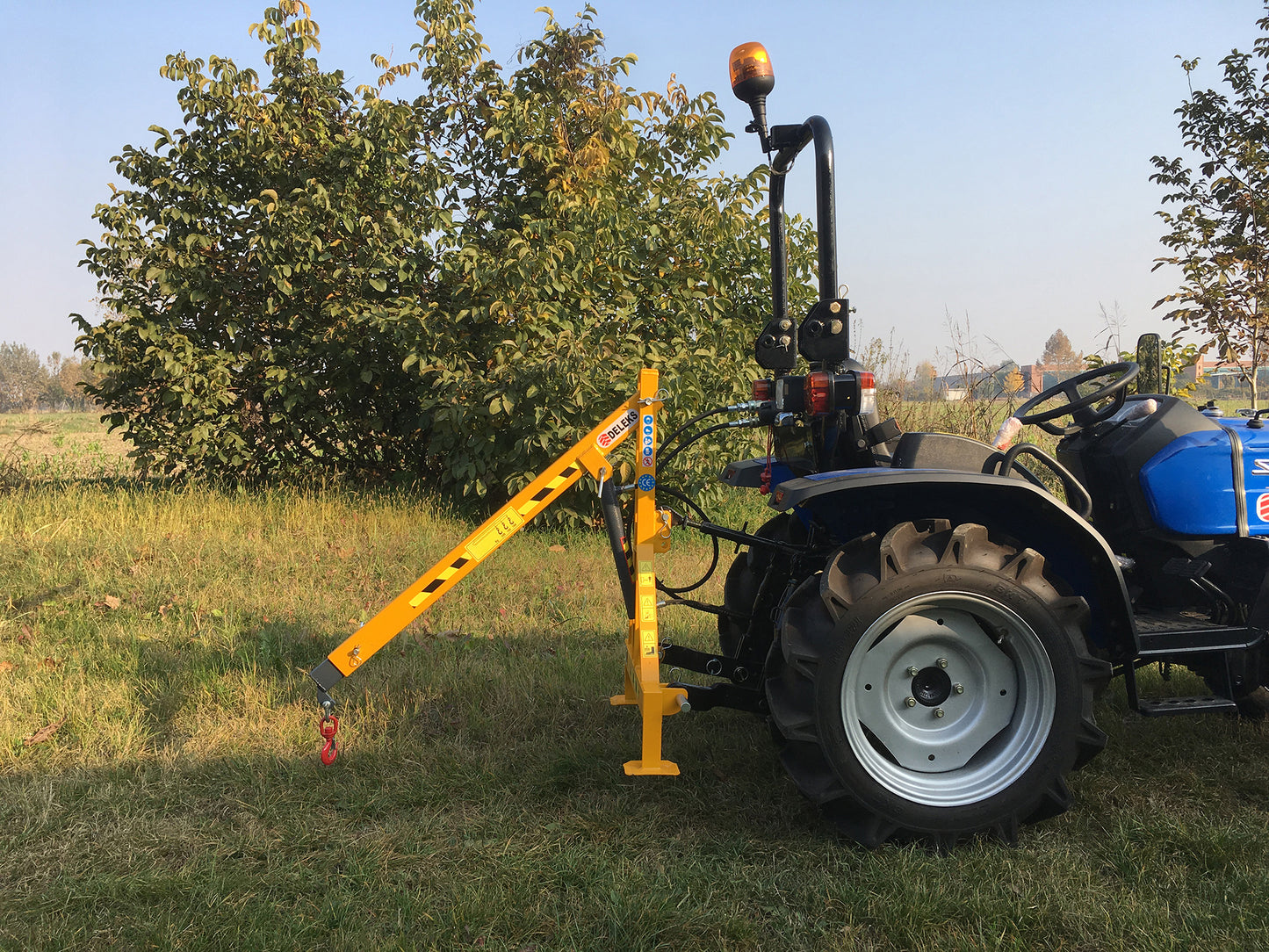

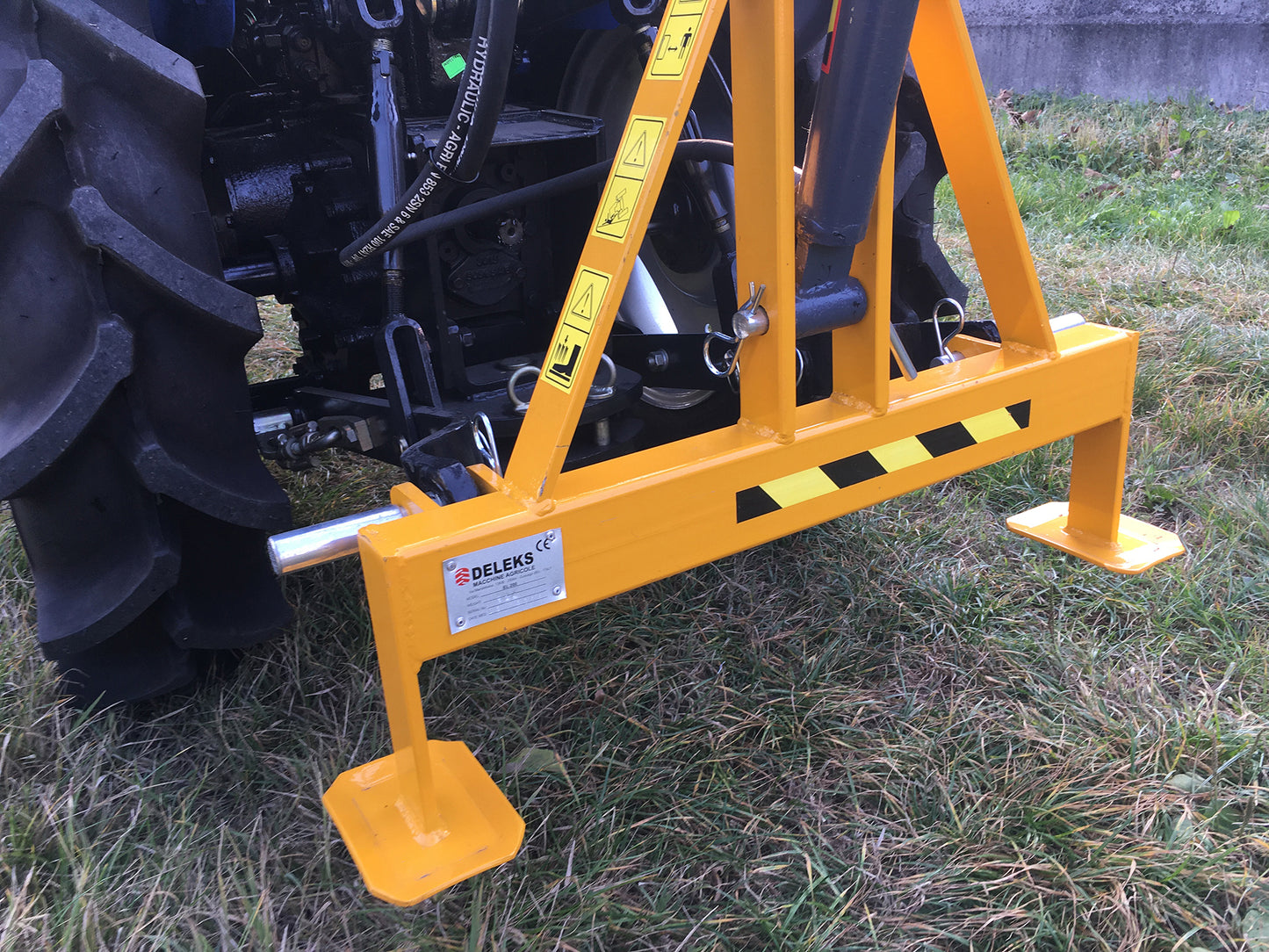

Support feet offer extra stability
Reinforced at all stress points

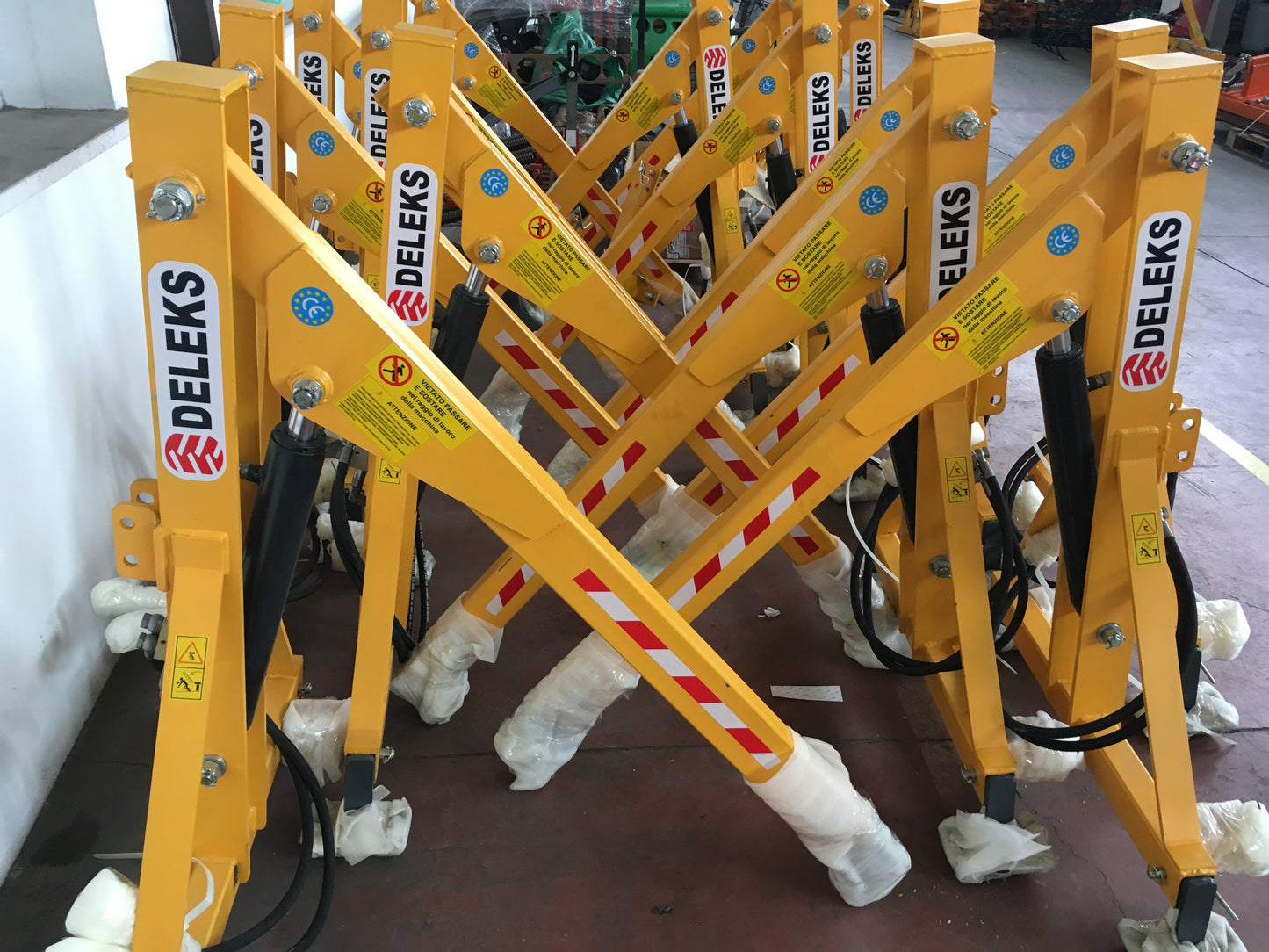

Easily stored when not in use

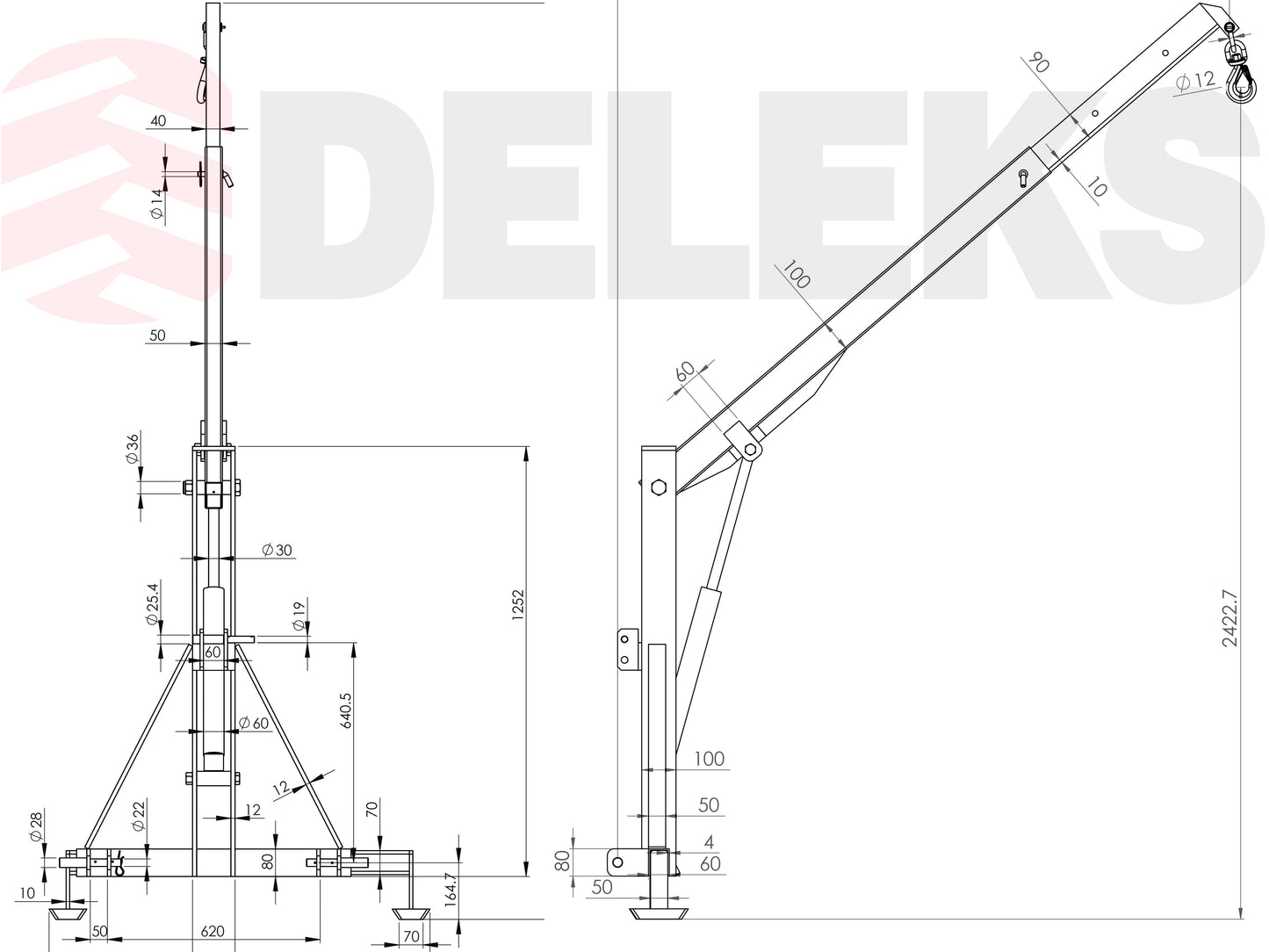

Specifications

Hydraulic Cranes EL-300 EL-500
Overall Width 84 980 - 1380 mm
Weight 48 kg 81 kg
Tractor Power Range 16 - 45 hp 30 - 70 hp

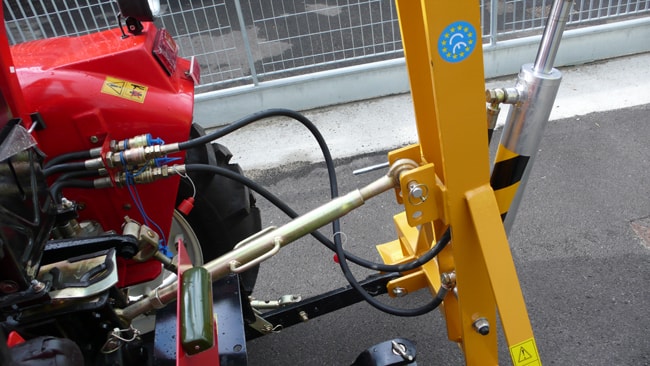

3-Point Linkage Cat. 1 Cat. 1-2

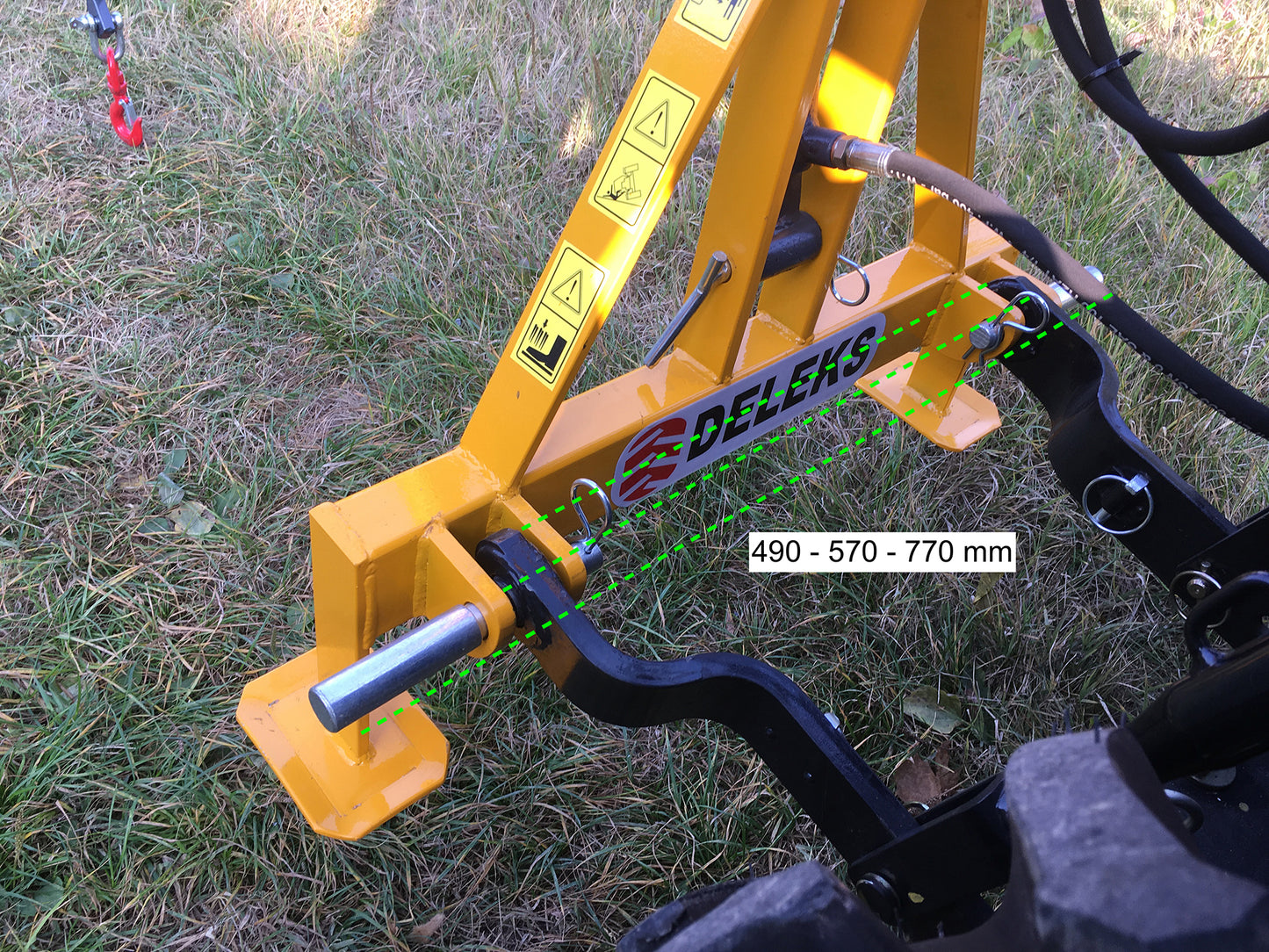

Spacing Between the 2 Lower Points 365 - 465 mm 470 - 735 mm

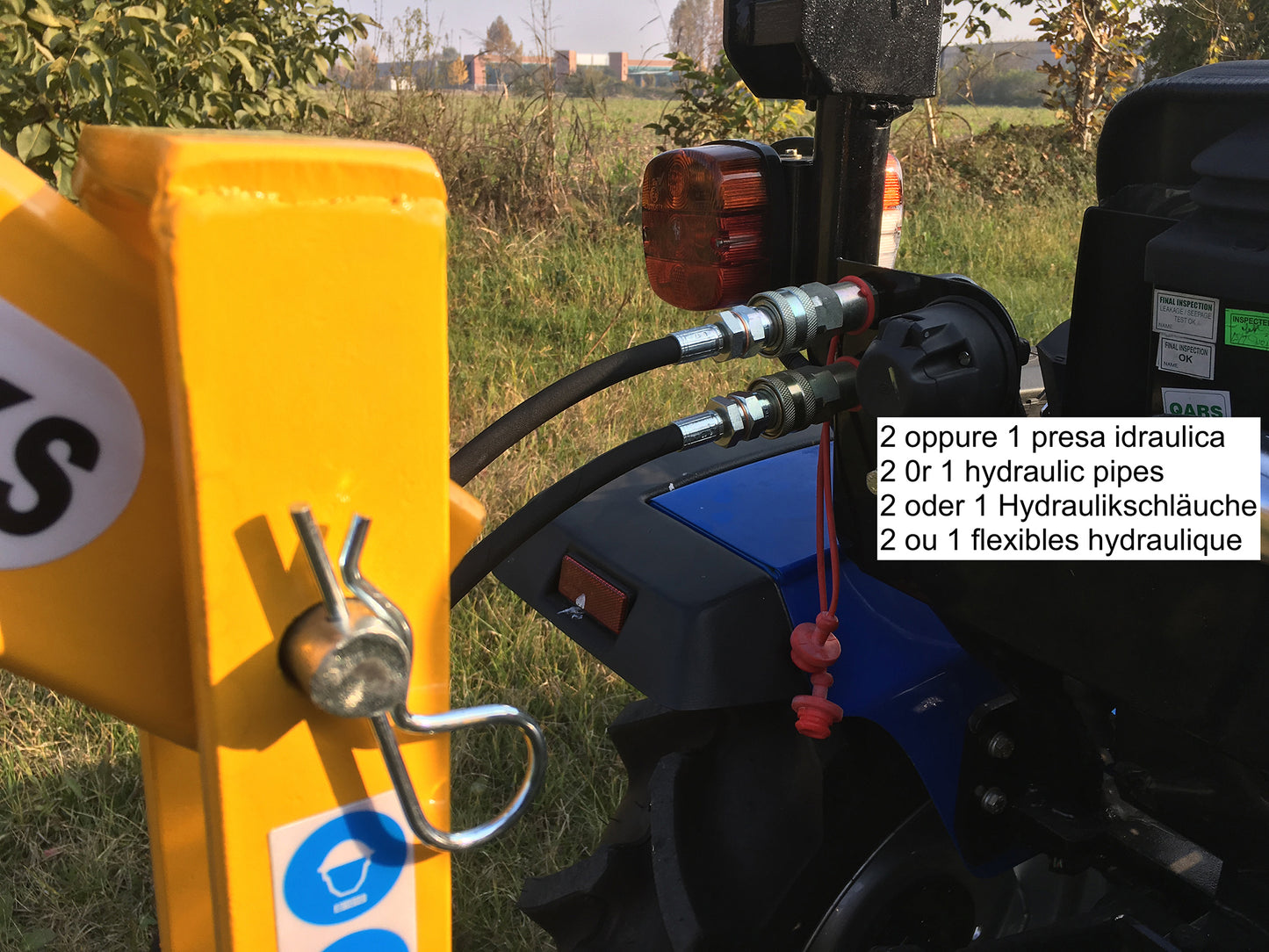

Hydraulic Pipes x 2 1500 mm / connection 1.2" AGRI, WP 400 bar

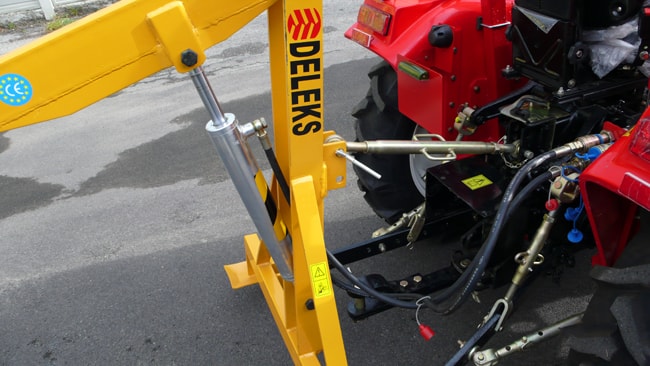

Hydraulic Cylinder Diameter 50 - 25 mm 70 - 30 mm
Max Load Rating 200 kg 200 kg

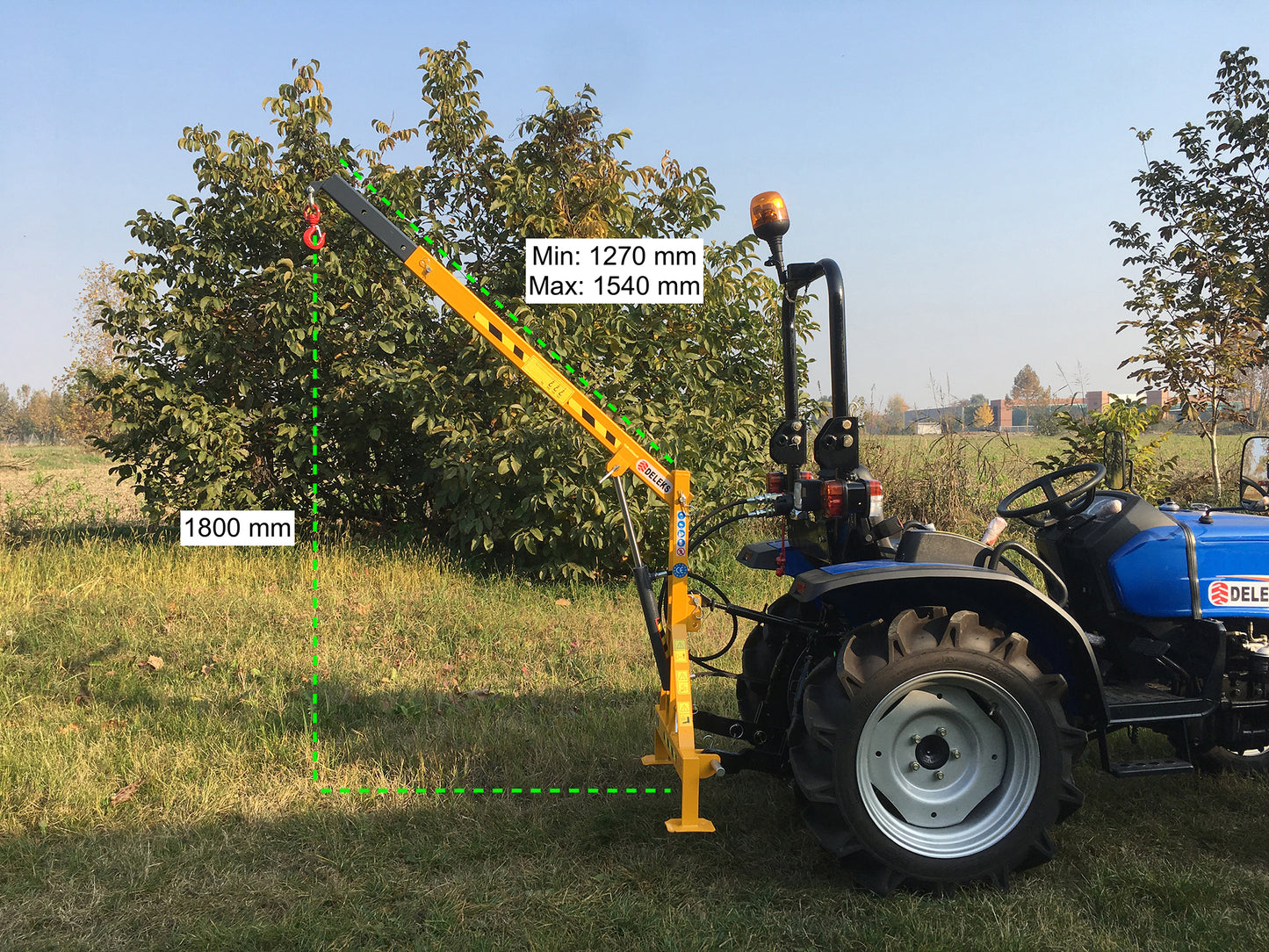

Max Height Lift 2100 mm + tractor lift 2267.5 mm + tractor lift
Extended Length 1640 mm 2150 mm
Retracted Length 1240 mm 1510 mm
Number of Arm Adjustments 3 3
Distance Between Arm Adjustments 200 mm 270 mm
Overall Height with Arm Down 1100 mm 1350 mm
Min / Max Relief Pressure 60 - 80 bar 80 - 120 bar
Min / Max Flow 18 - 22 l/min 18 - 22 l/min
Packing Size 1100 x 780 x 400 mm 1250 x 800 x 400 mm
PRICE EL-300
£395 +VAT
(£474 inc VAT)		 EL-500
£630 +VAT
(£756 inc VAT)





With Category 1 three-point linkage (Cat 1 and 2 on EL500) and reinforced on all stress points, these compact cranes are built with a time-proven design to offer strength & reliability.

Weights:

Model EL200: 45kg
Model EL500: 90kg
