Deleks VOLPE Offset Verge Flail Mowers
Deleks VOLPE Offset Verge Flail Mowers

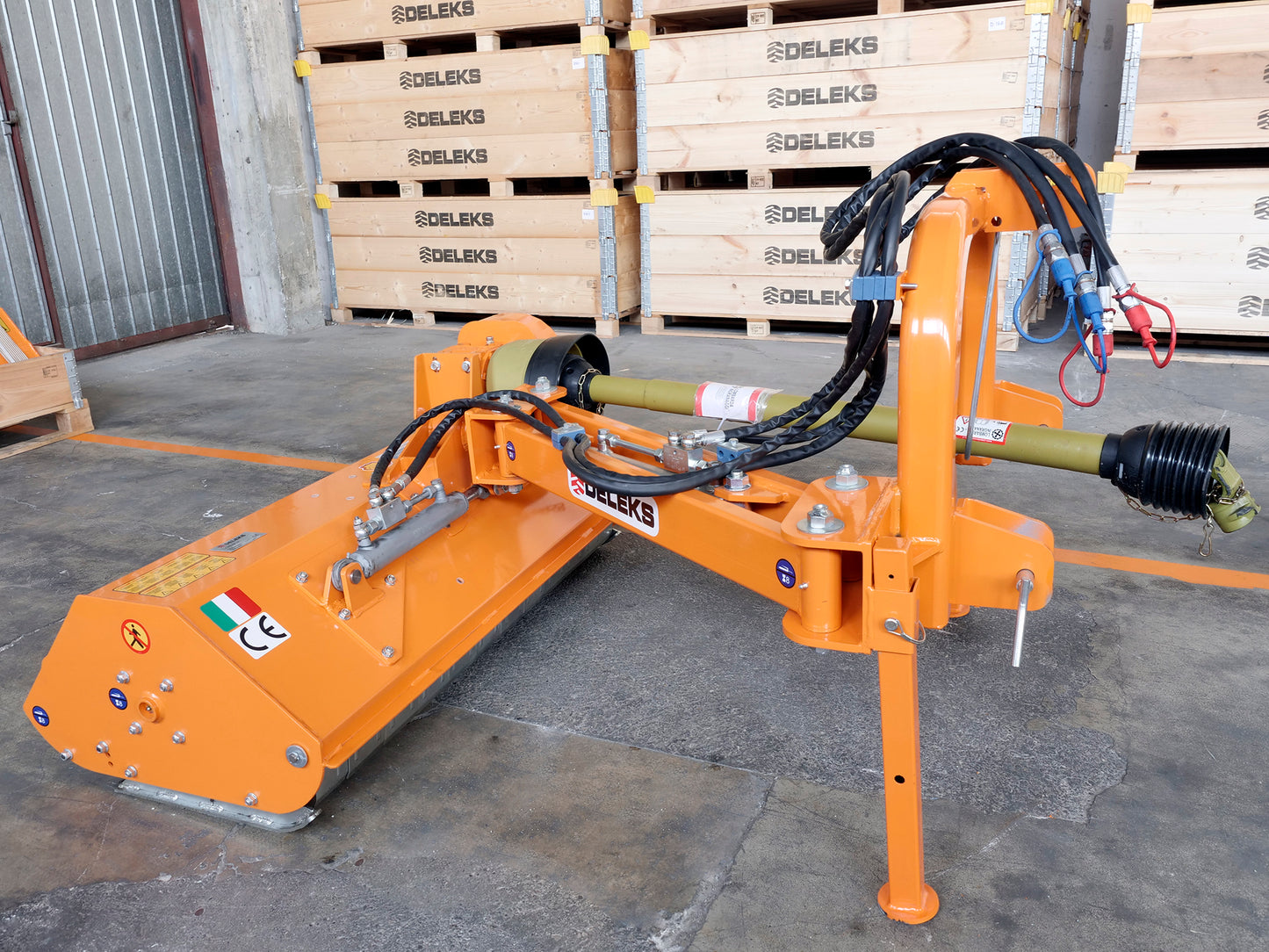

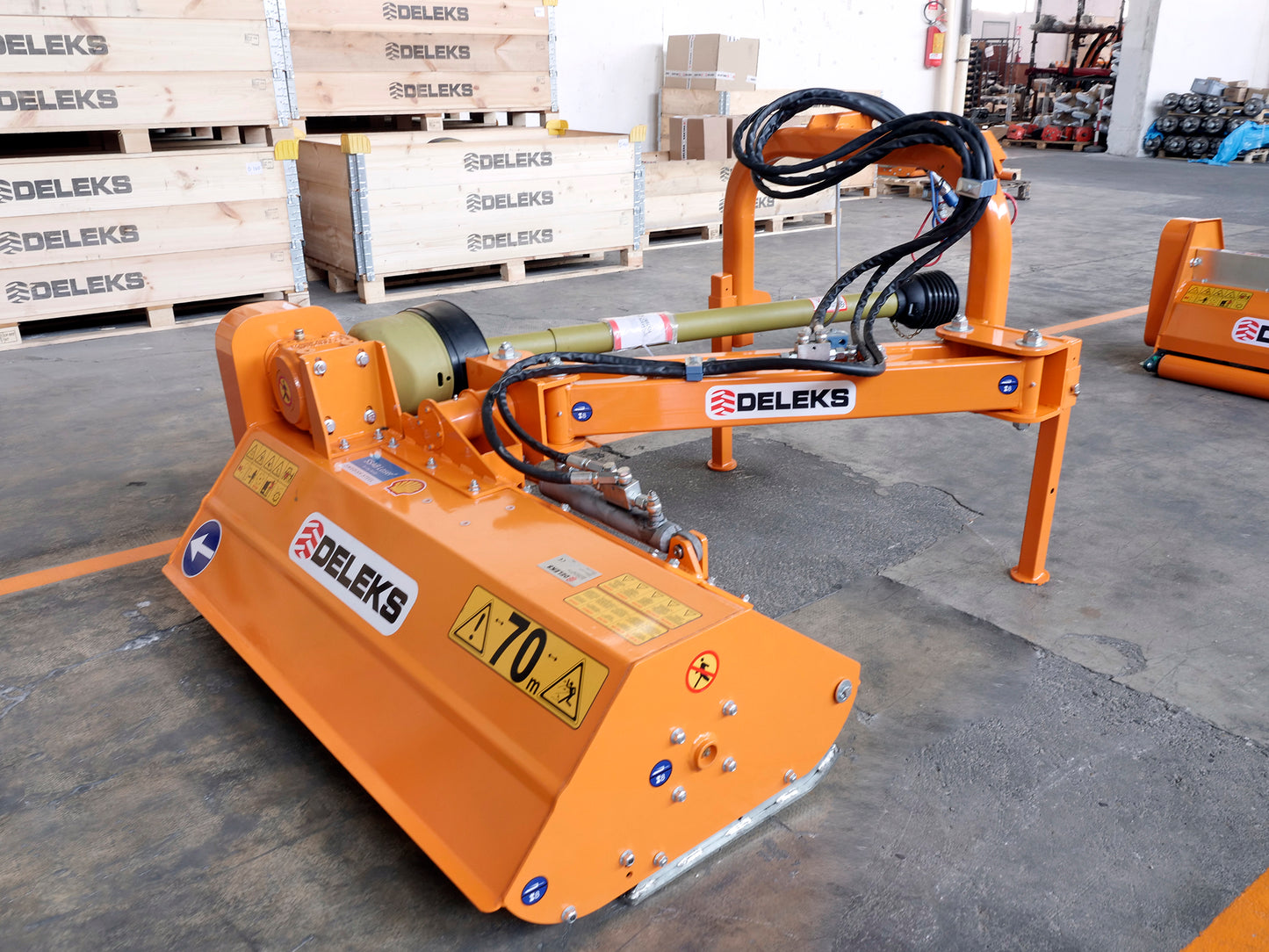

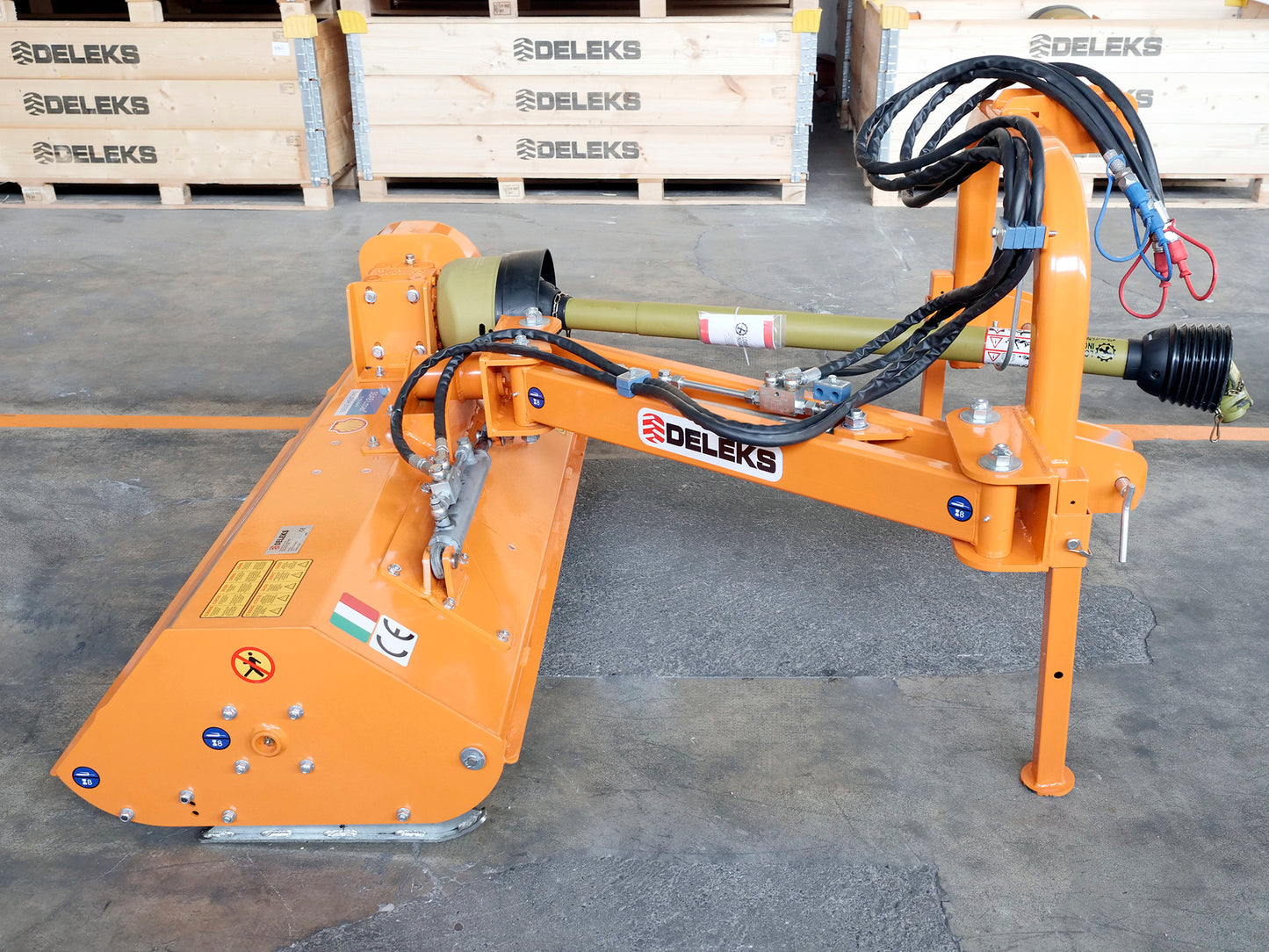

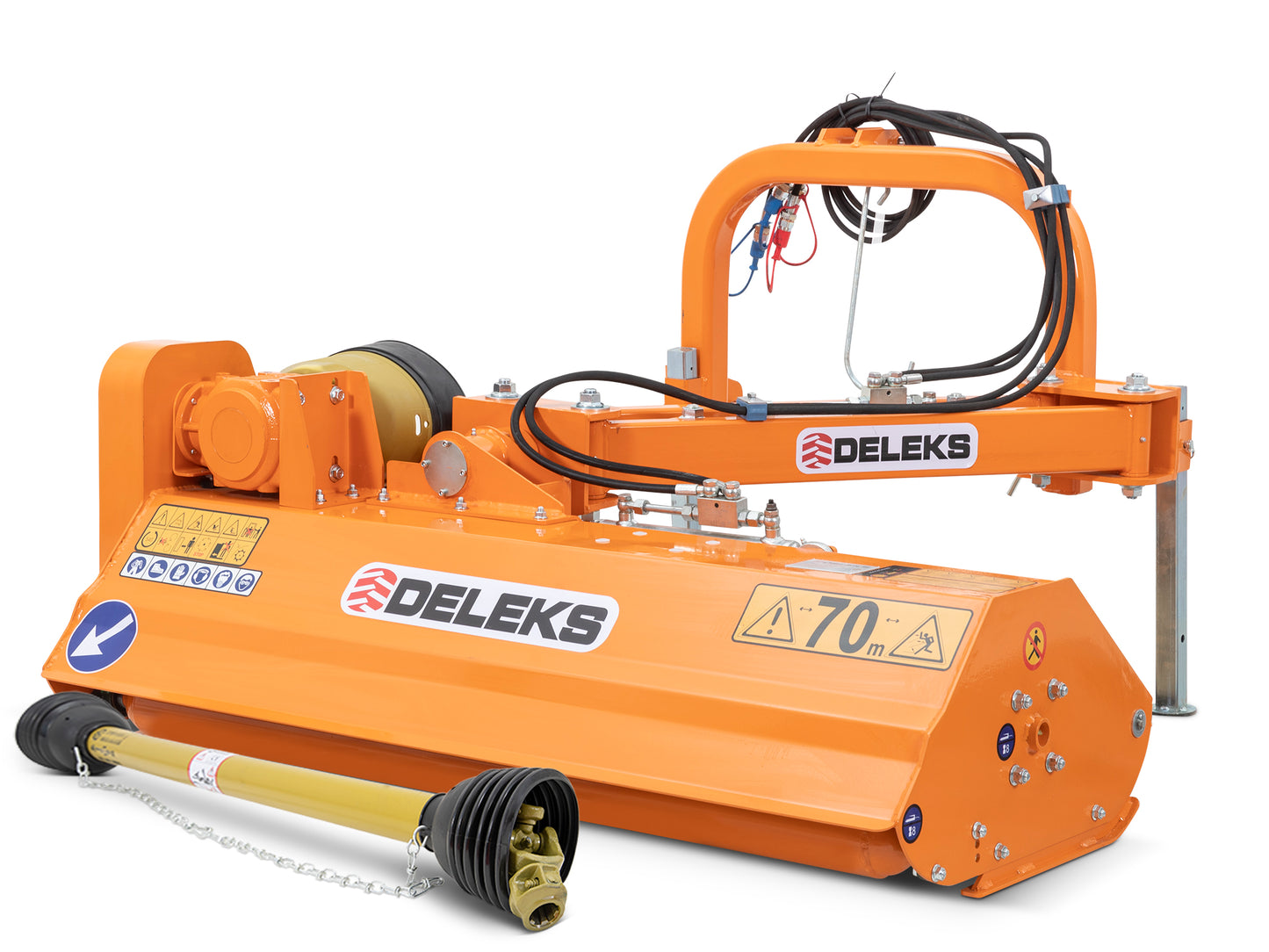

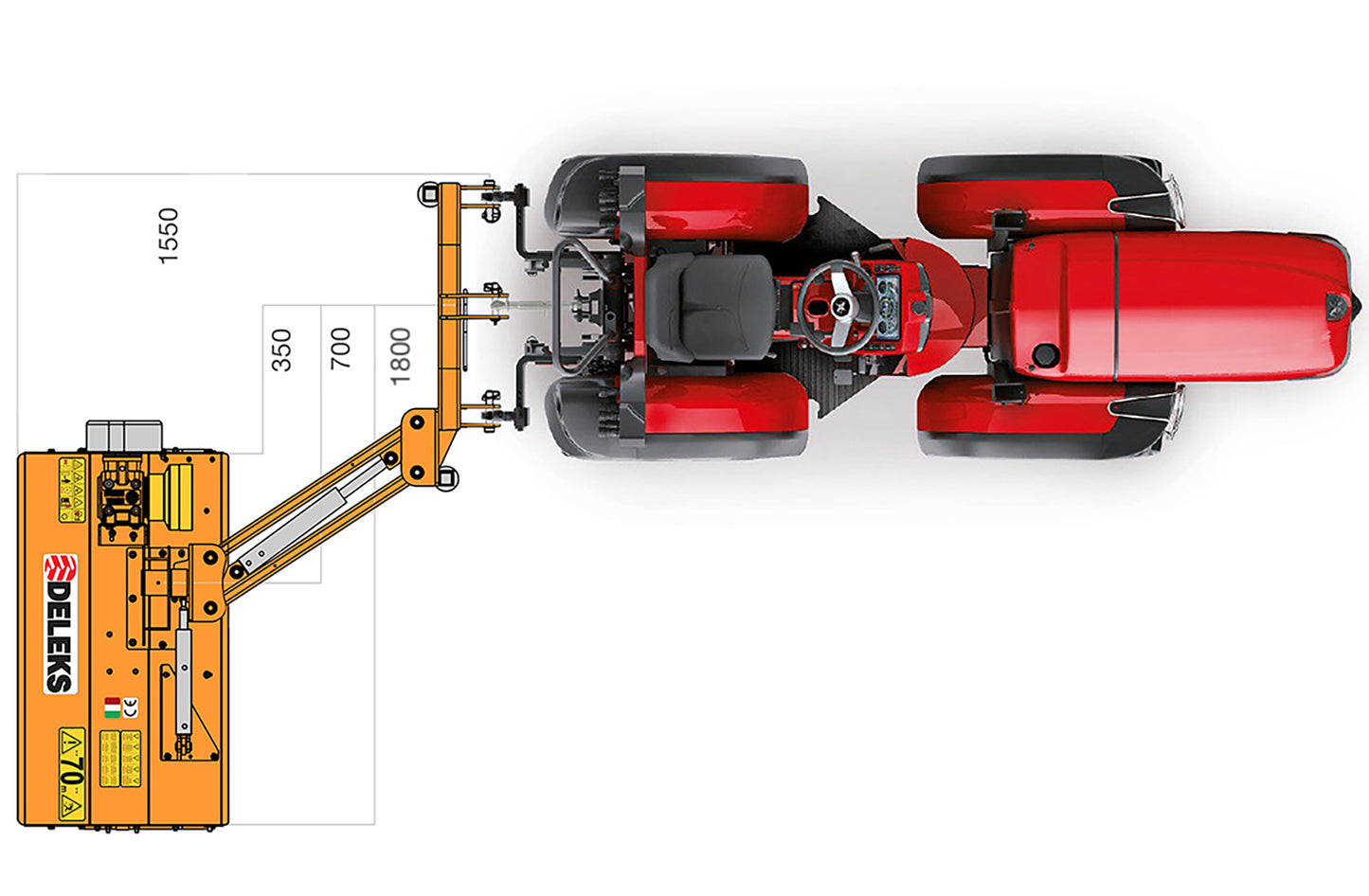

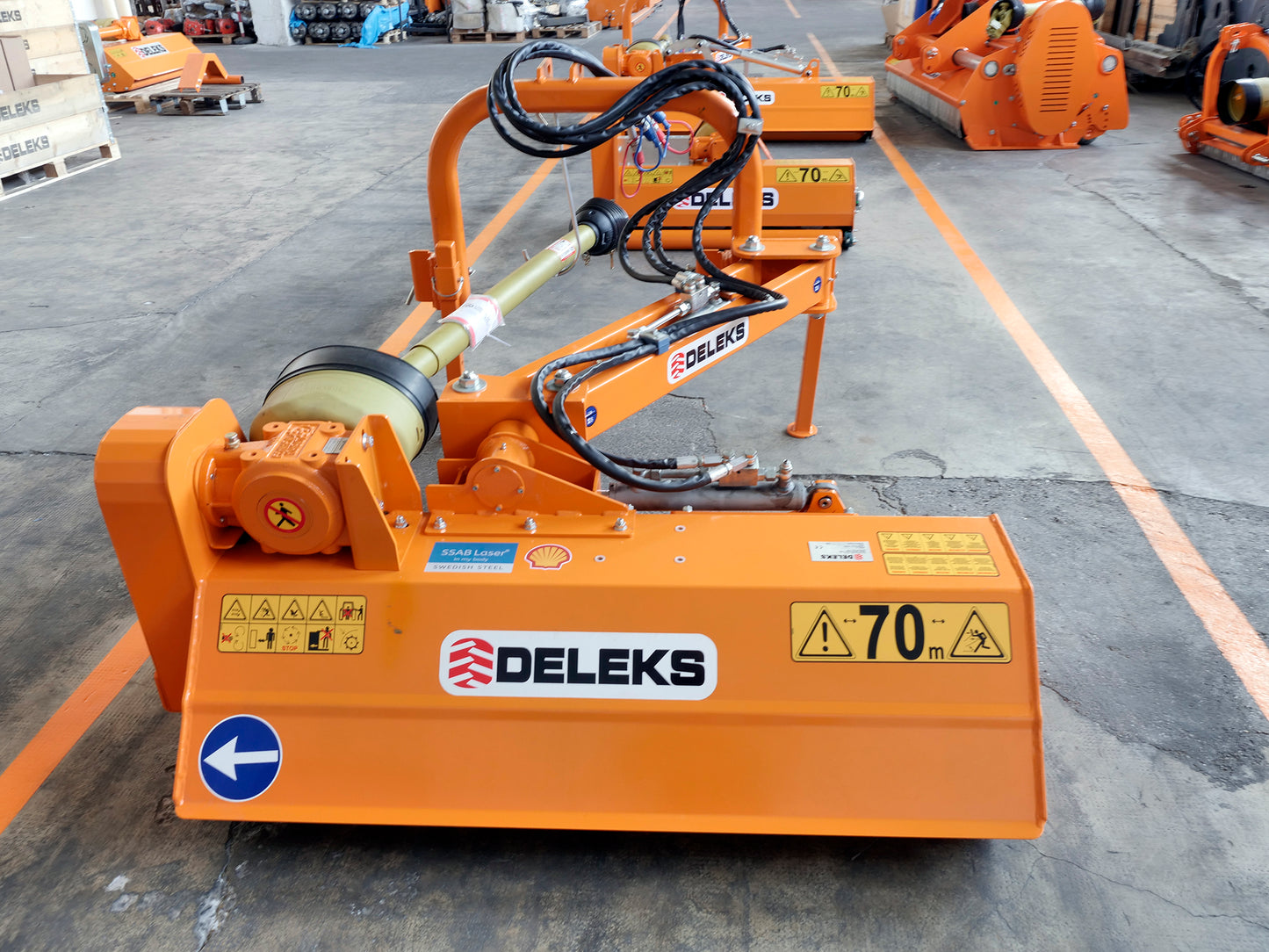

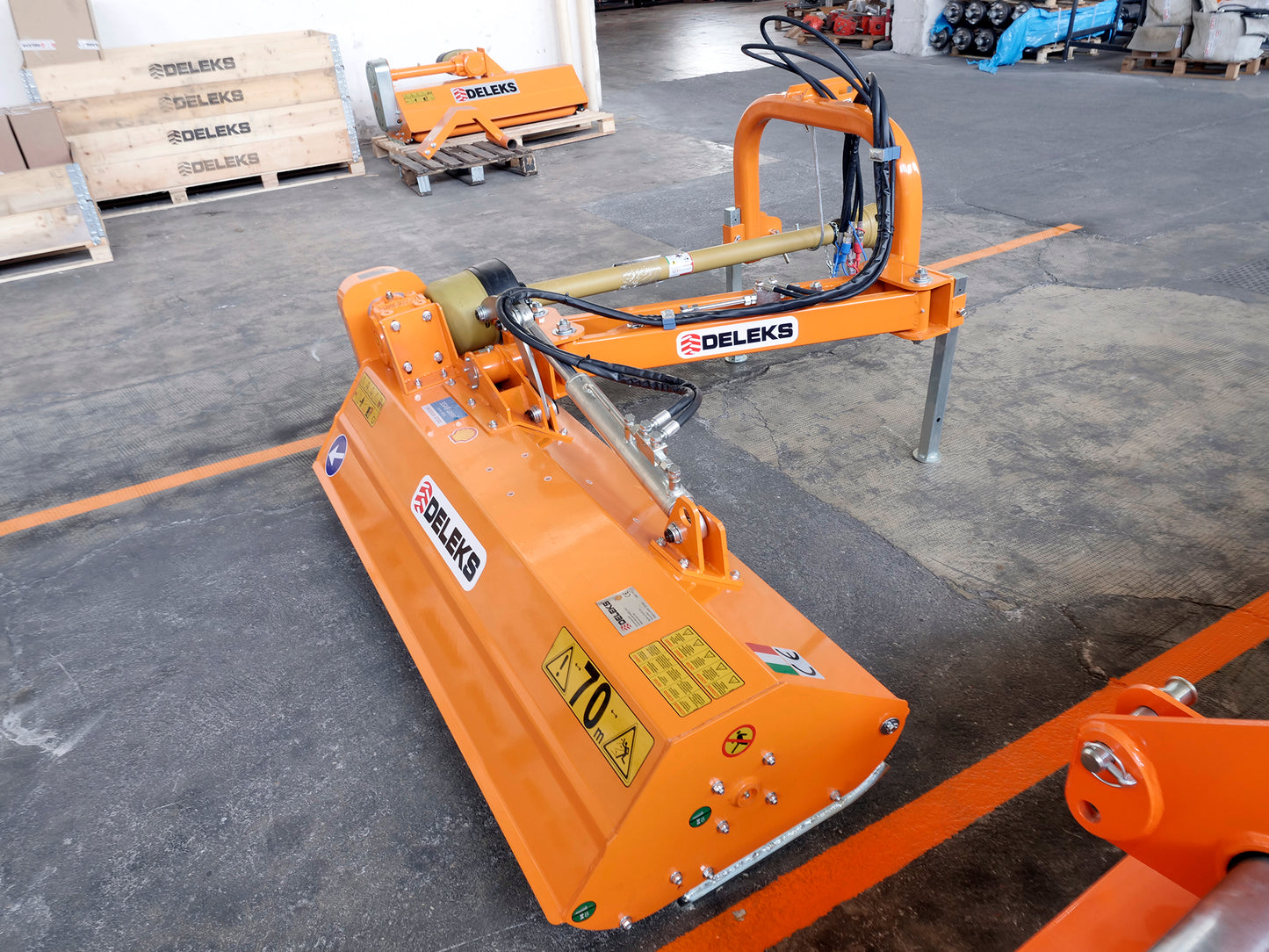

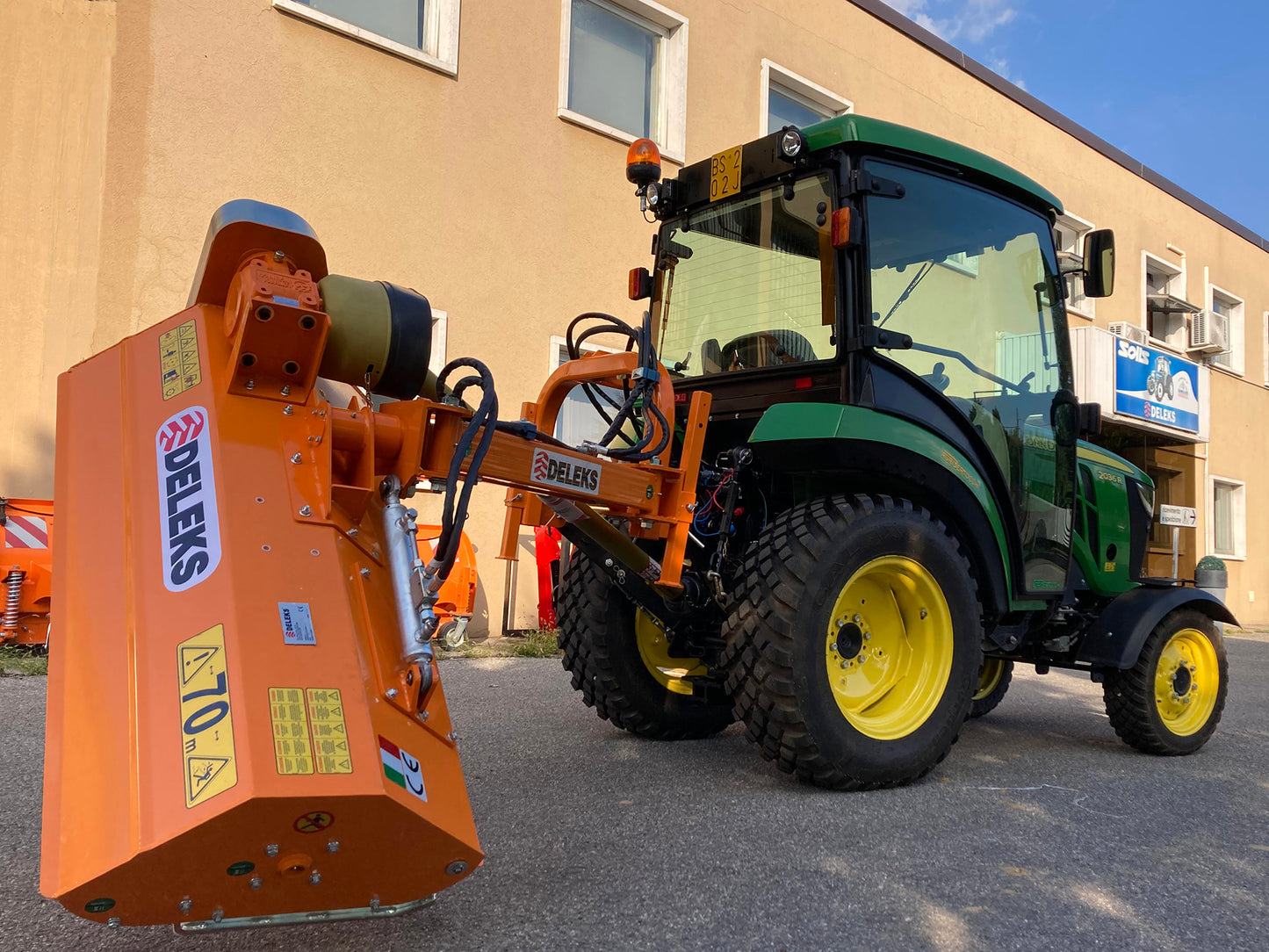

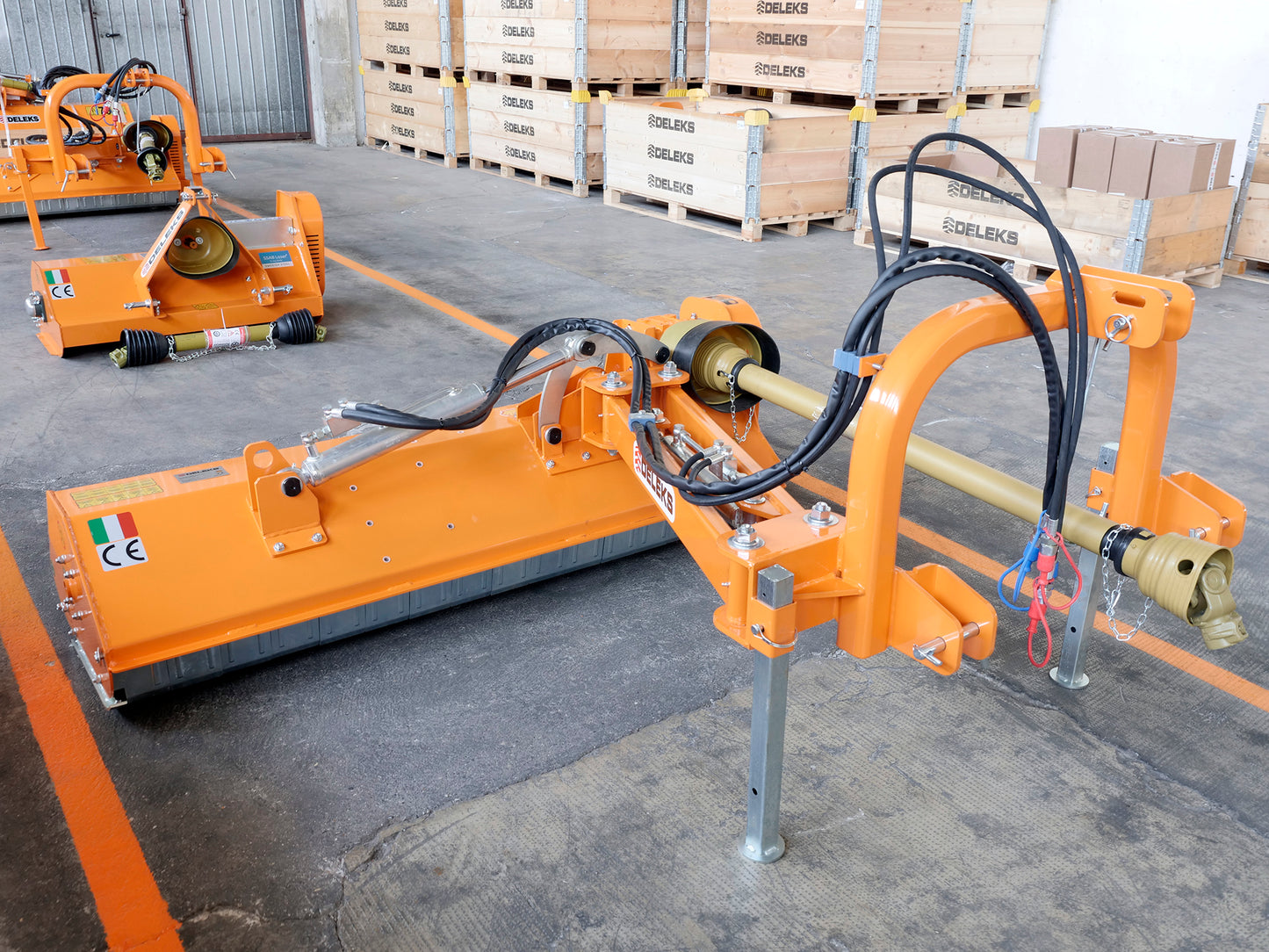

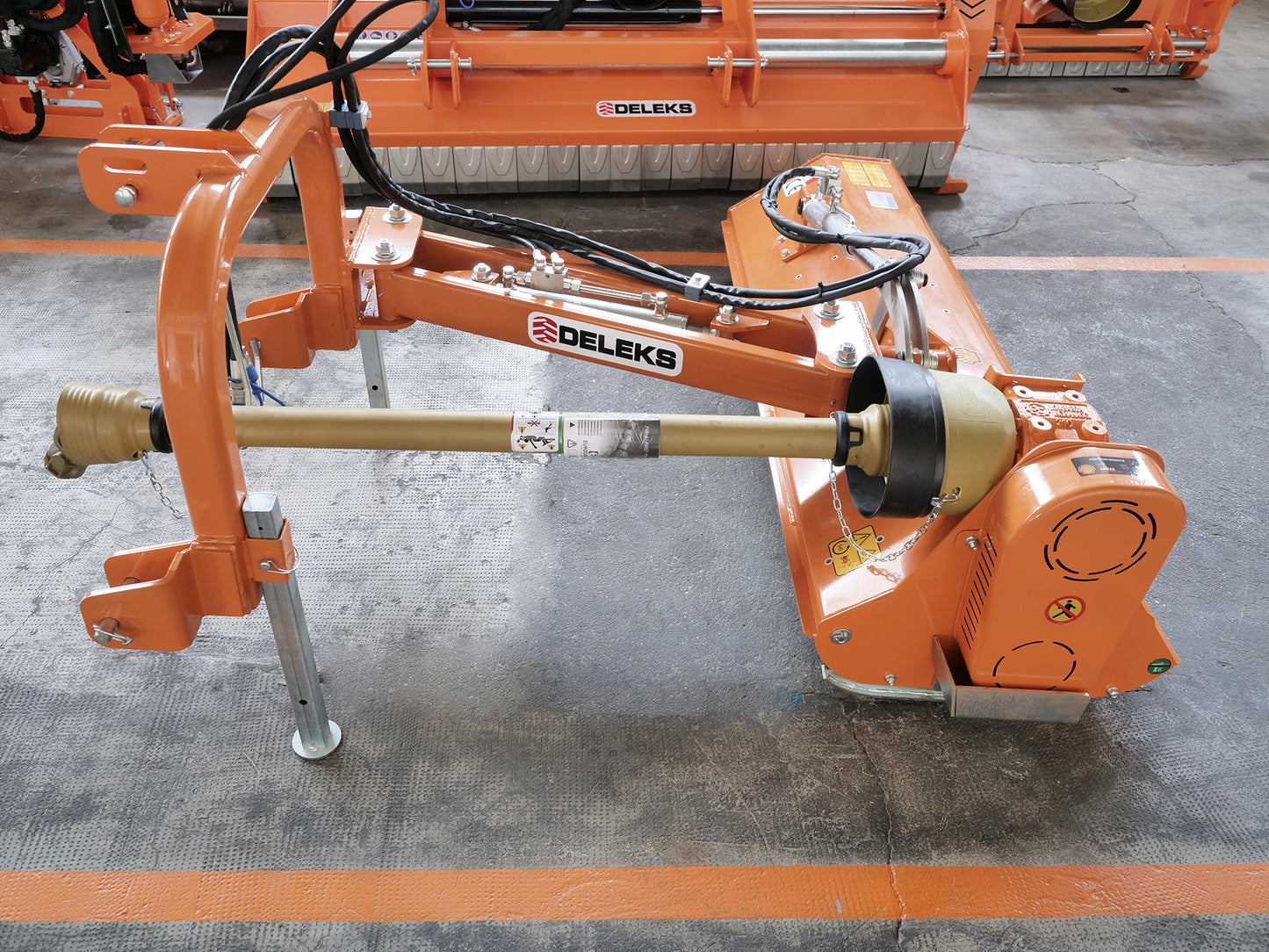

Deleks Volpe range of Offset Verge Flail Mowers are a multi-use sideshift flail mower that will cut and mulch and can be hydraulically angled vertically and down for cutting hard to reach areas.
Designed for compact tractors ranging from 30 hp to 55 hp.
Sizes: 1.2m or 1.4m or 1.65m

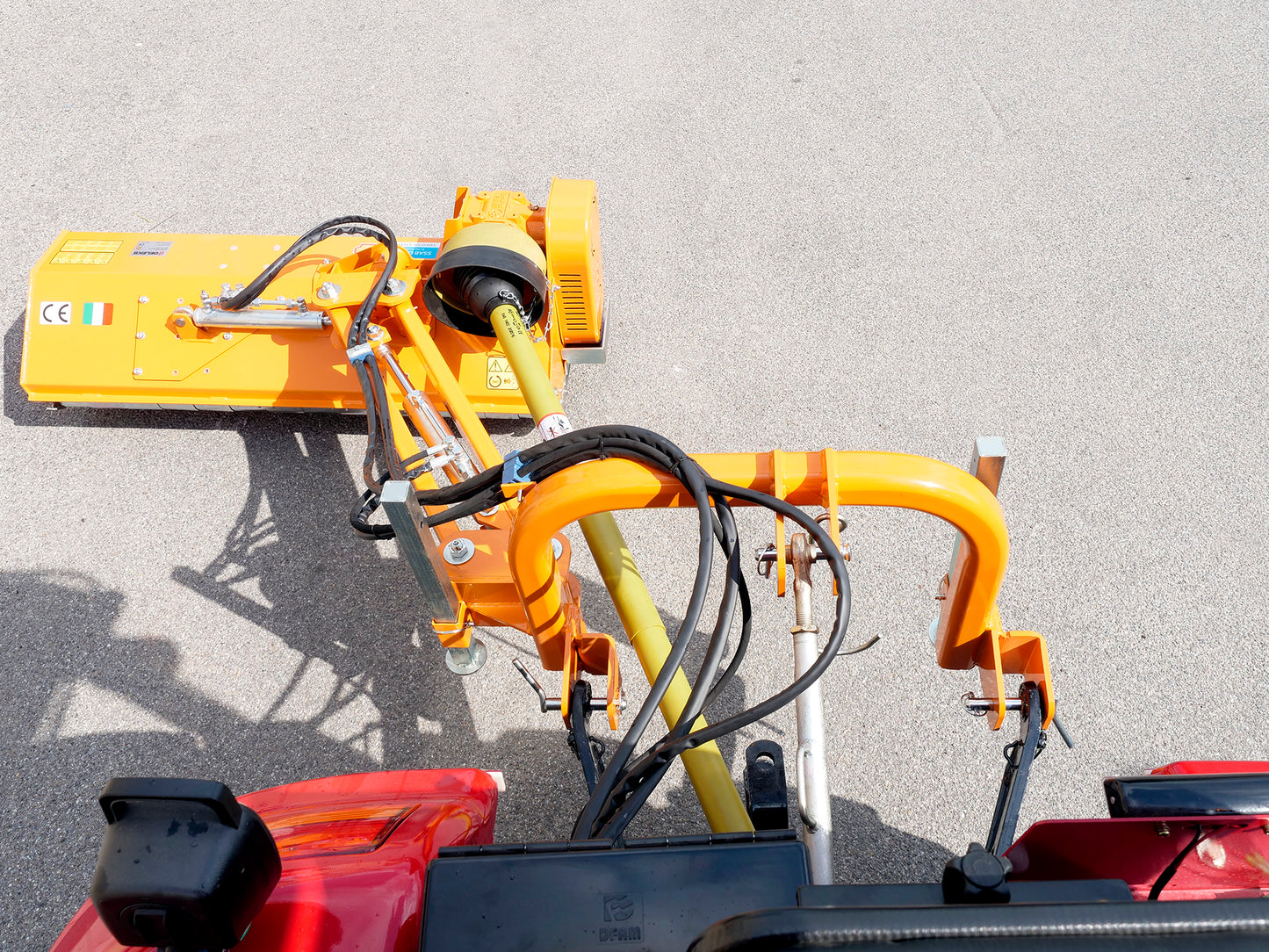

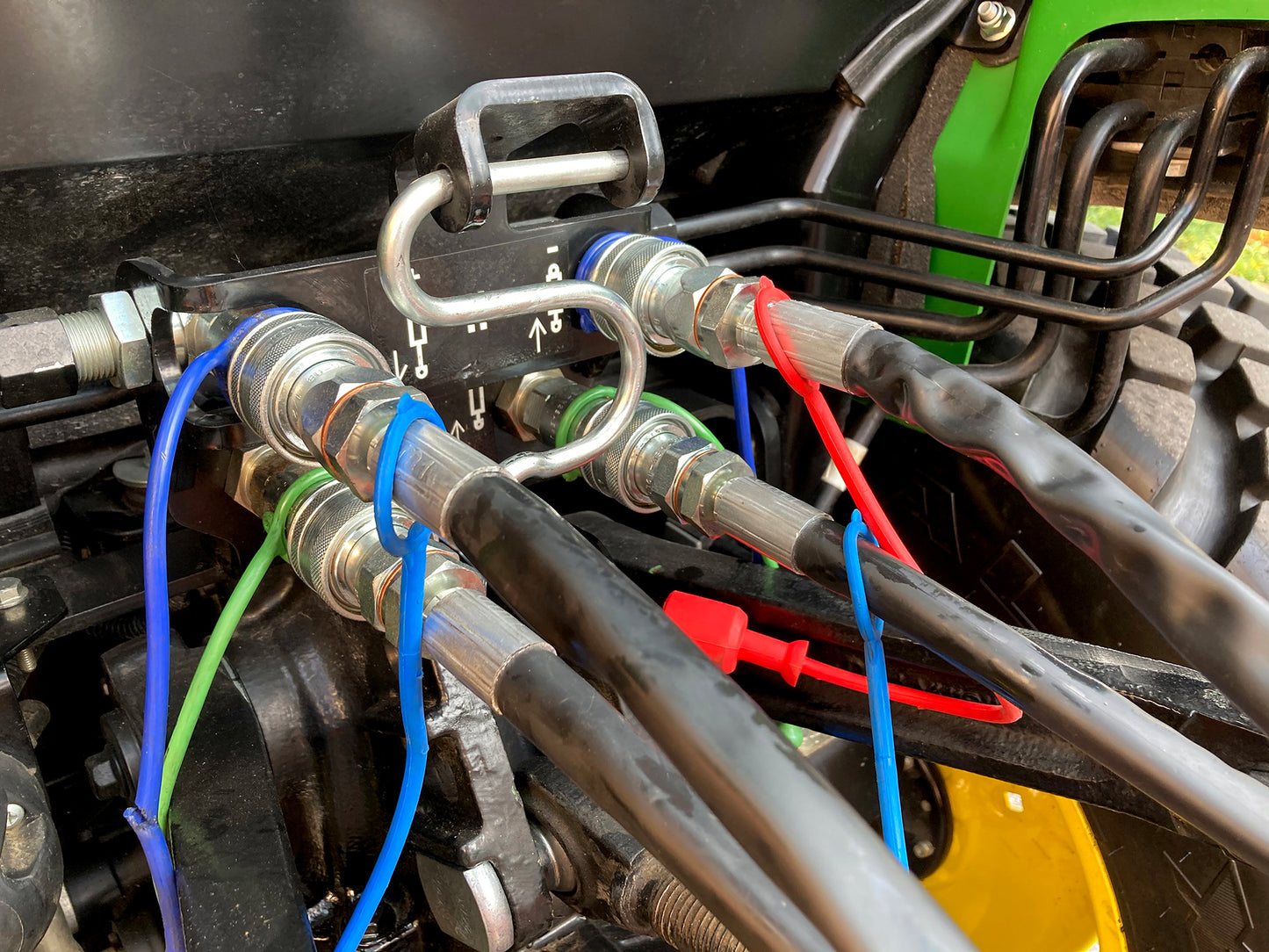

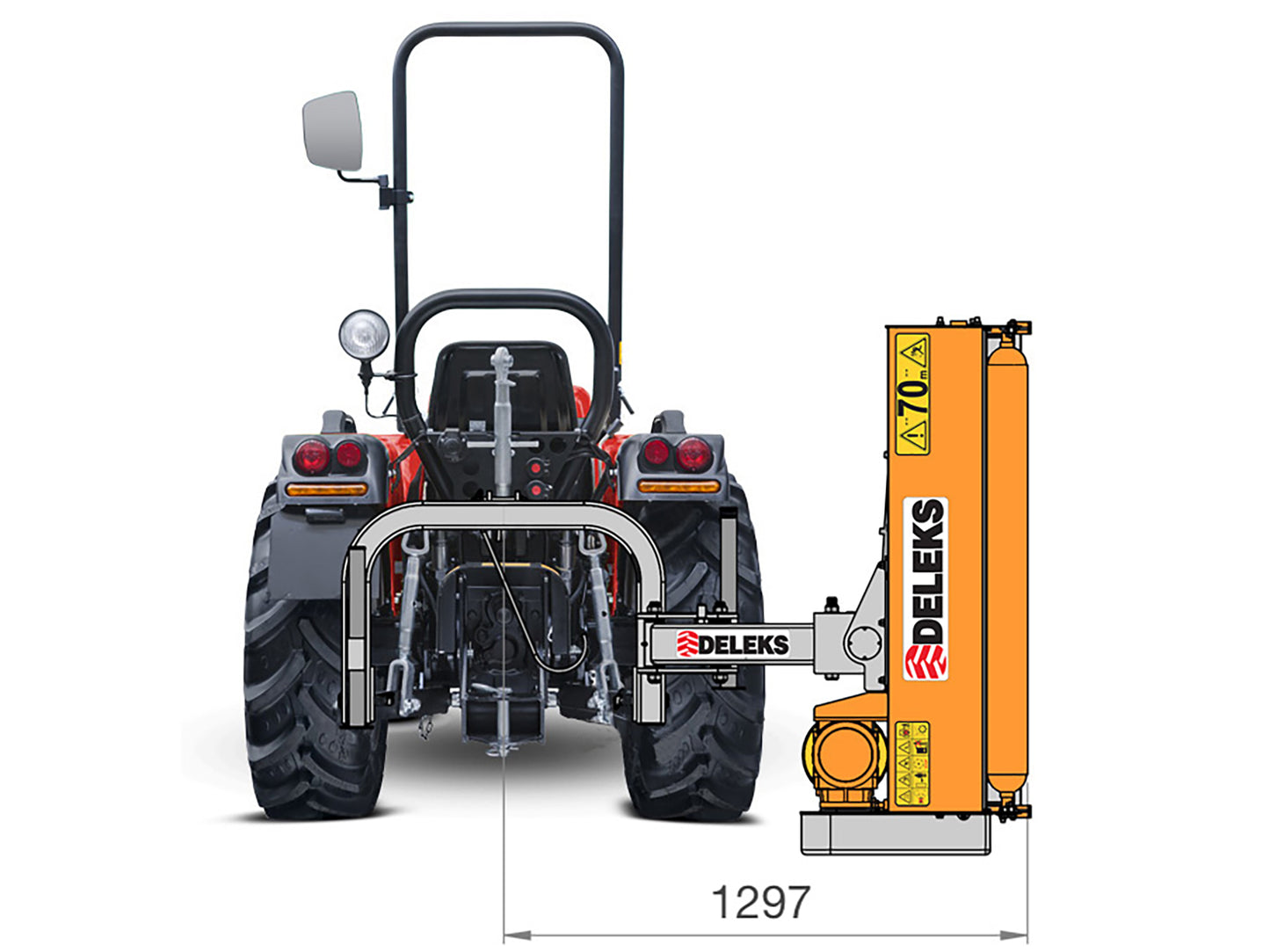

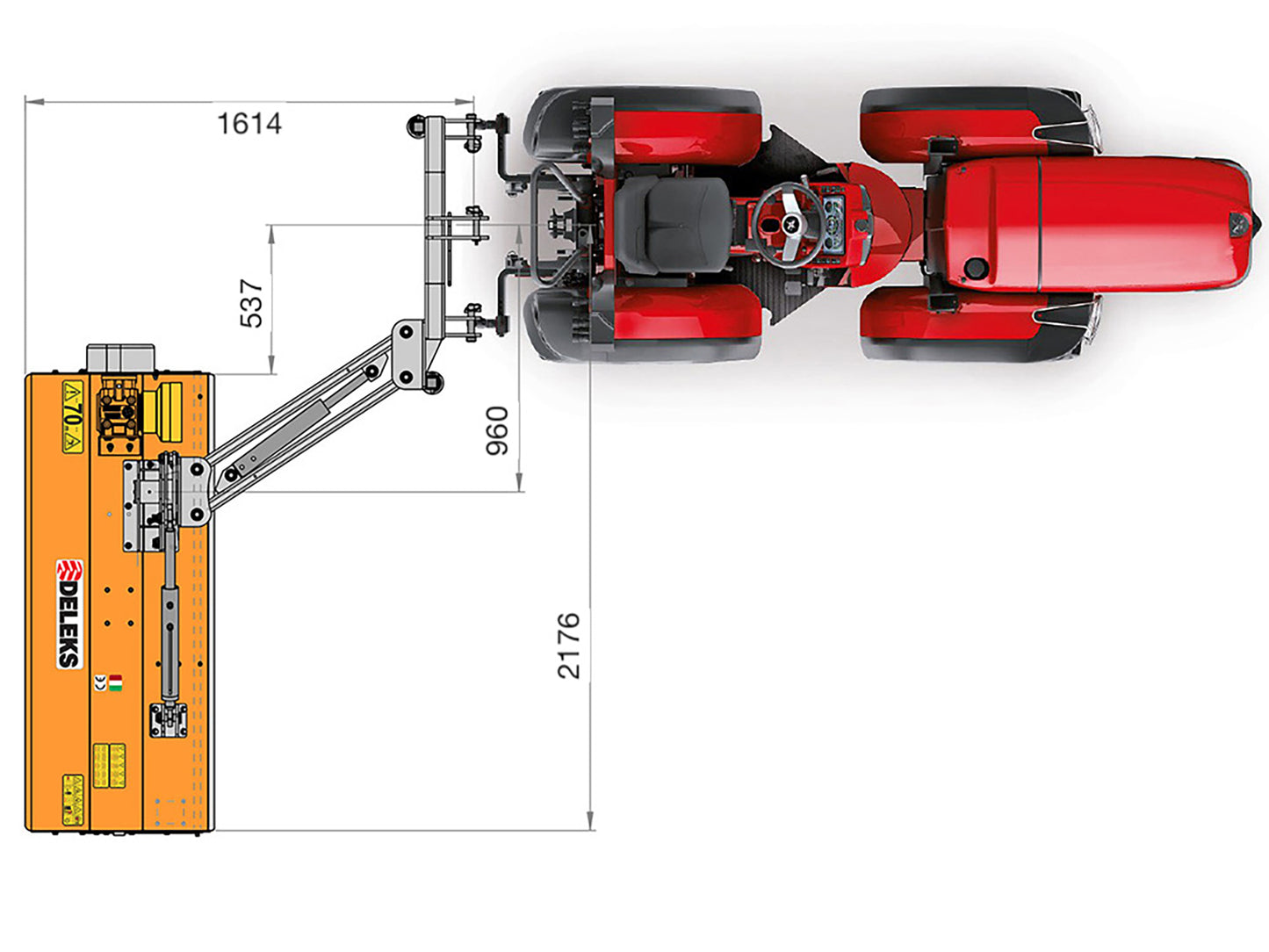

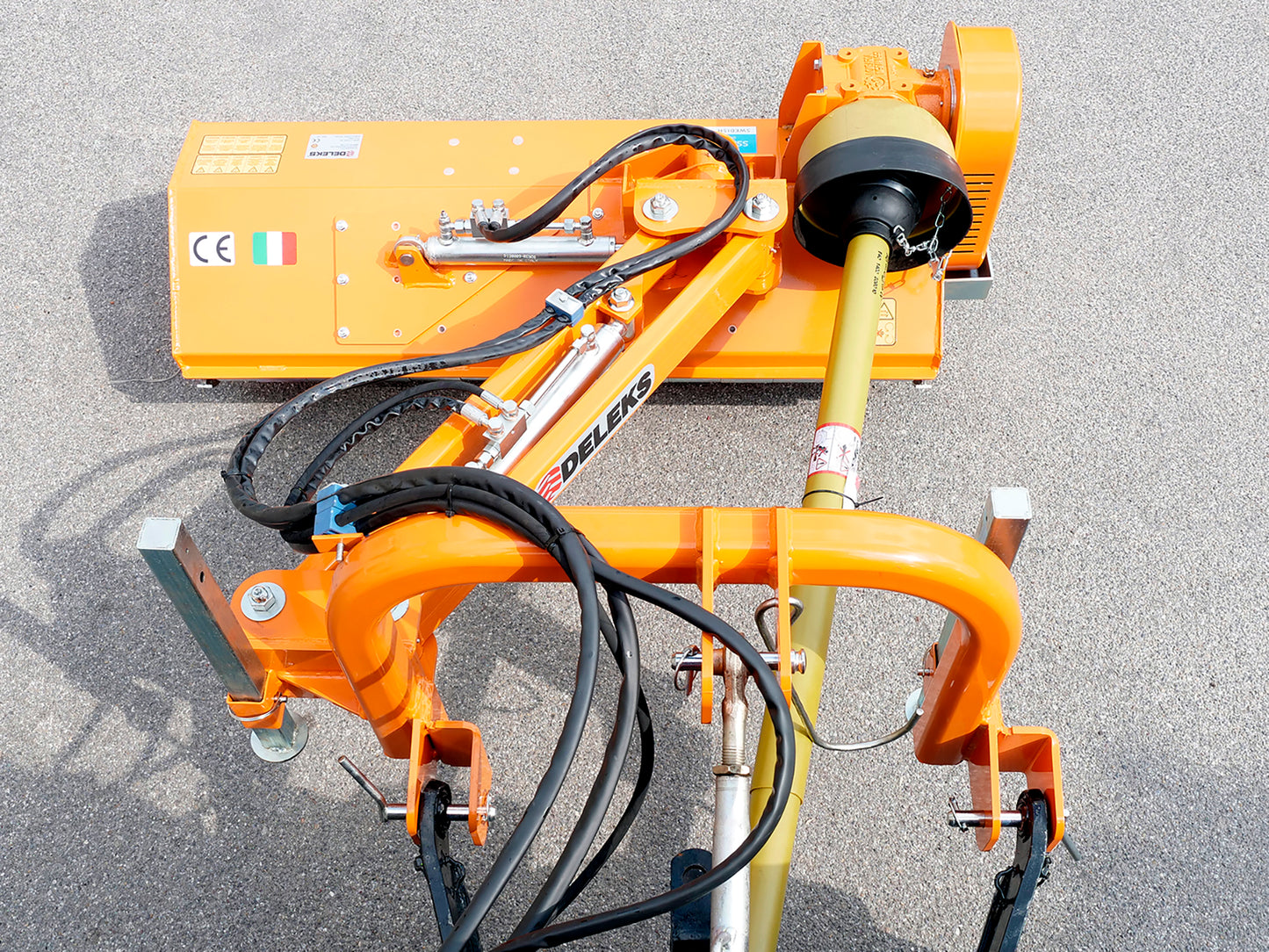

These mowers require 2 double acting spools on the tractor for the 4 hoses which then operate the left-right movement and the up-down tilt of the cutting head.

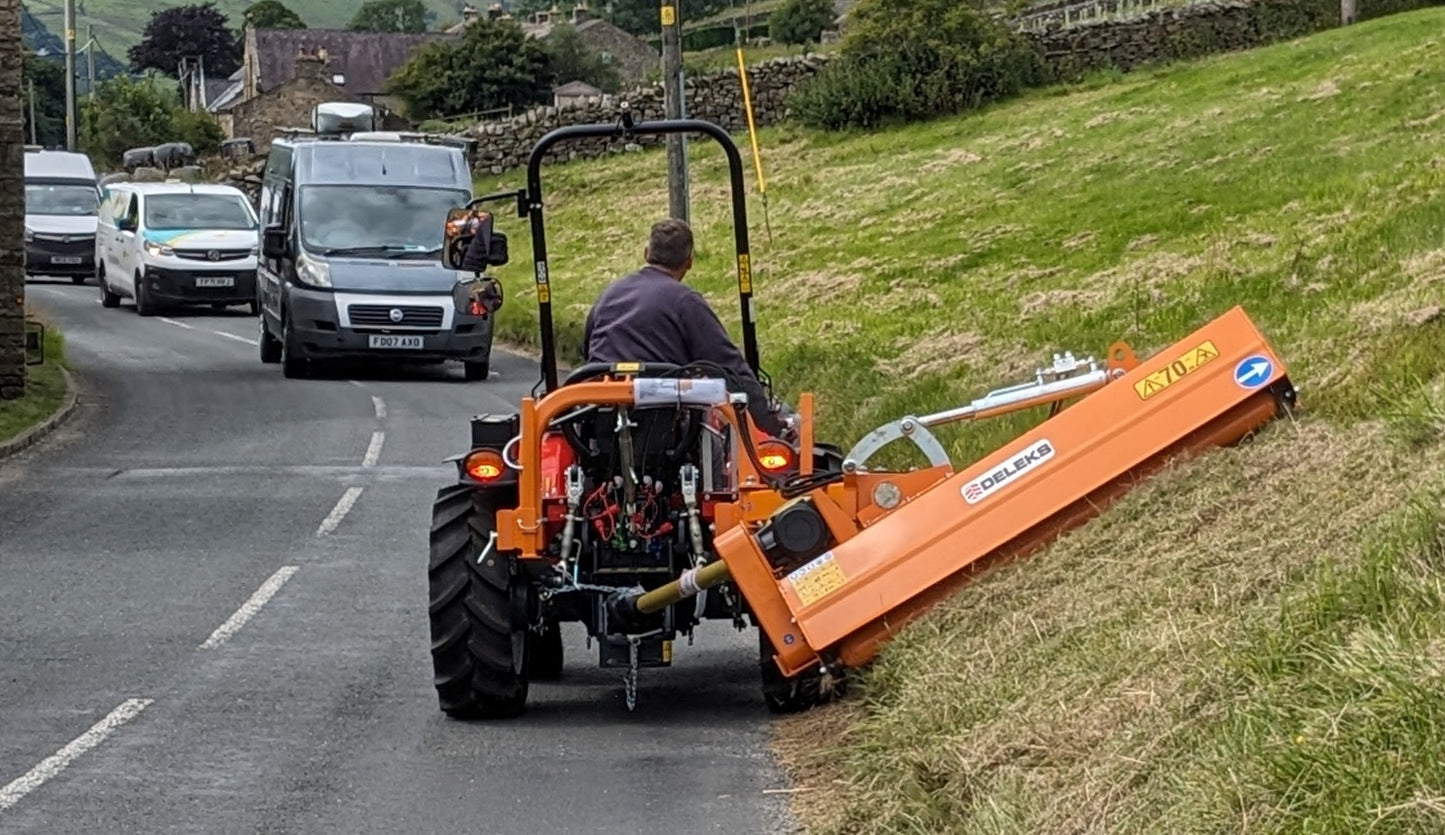

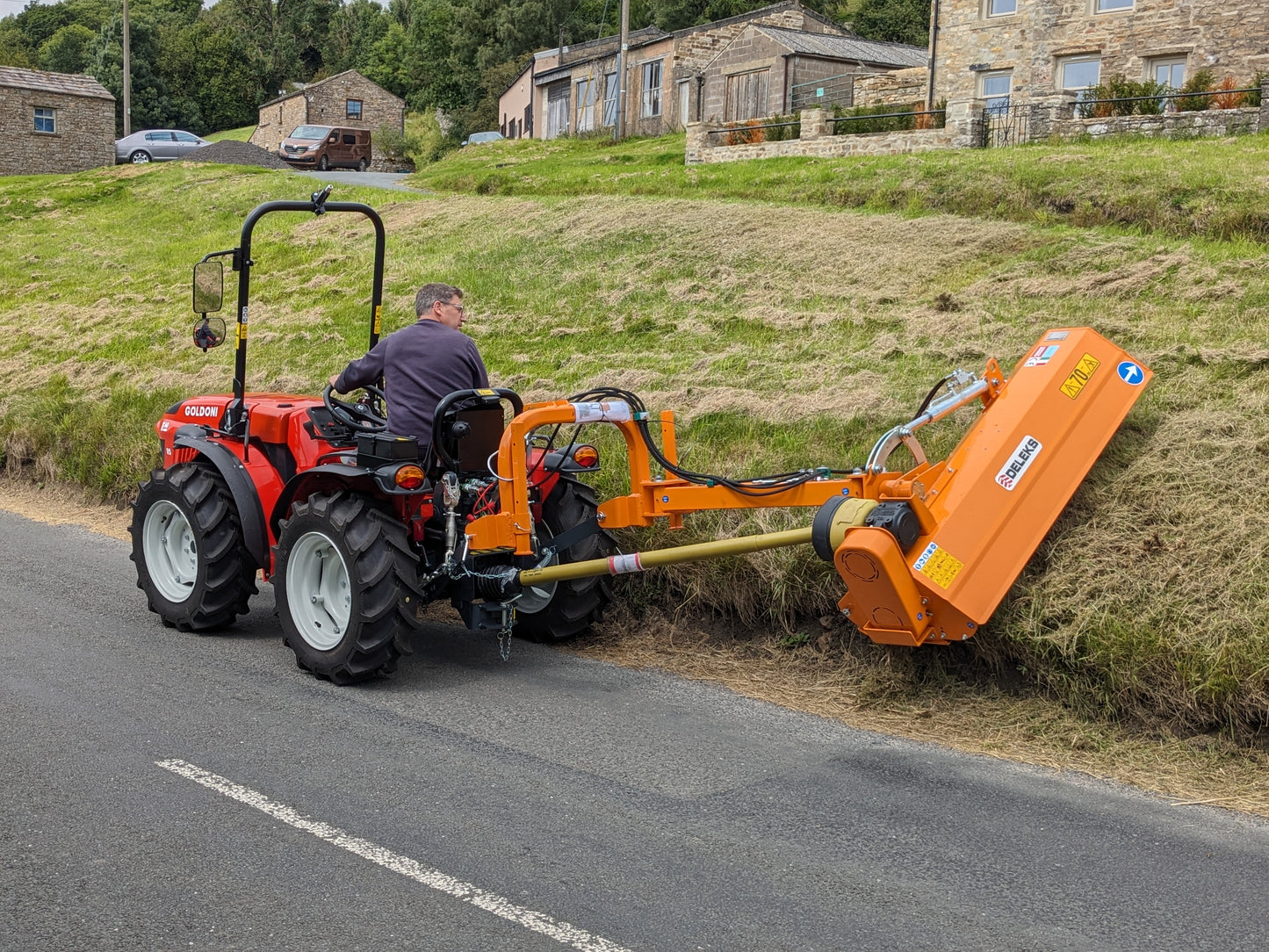

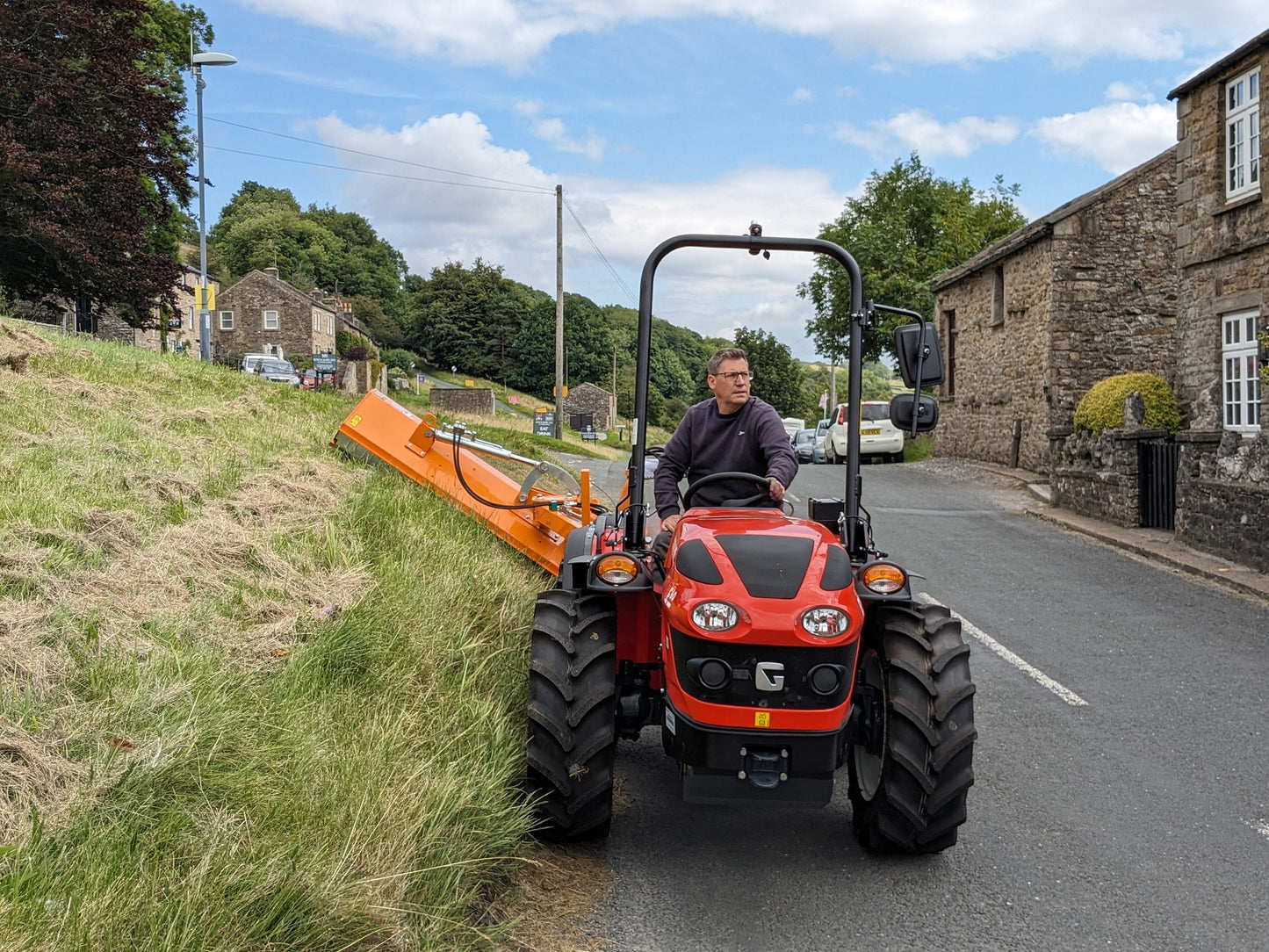

Below: Deleks Volpe 1.65m working well on a Goldoni E60RS equal-wheeled 48hp alpine tractor

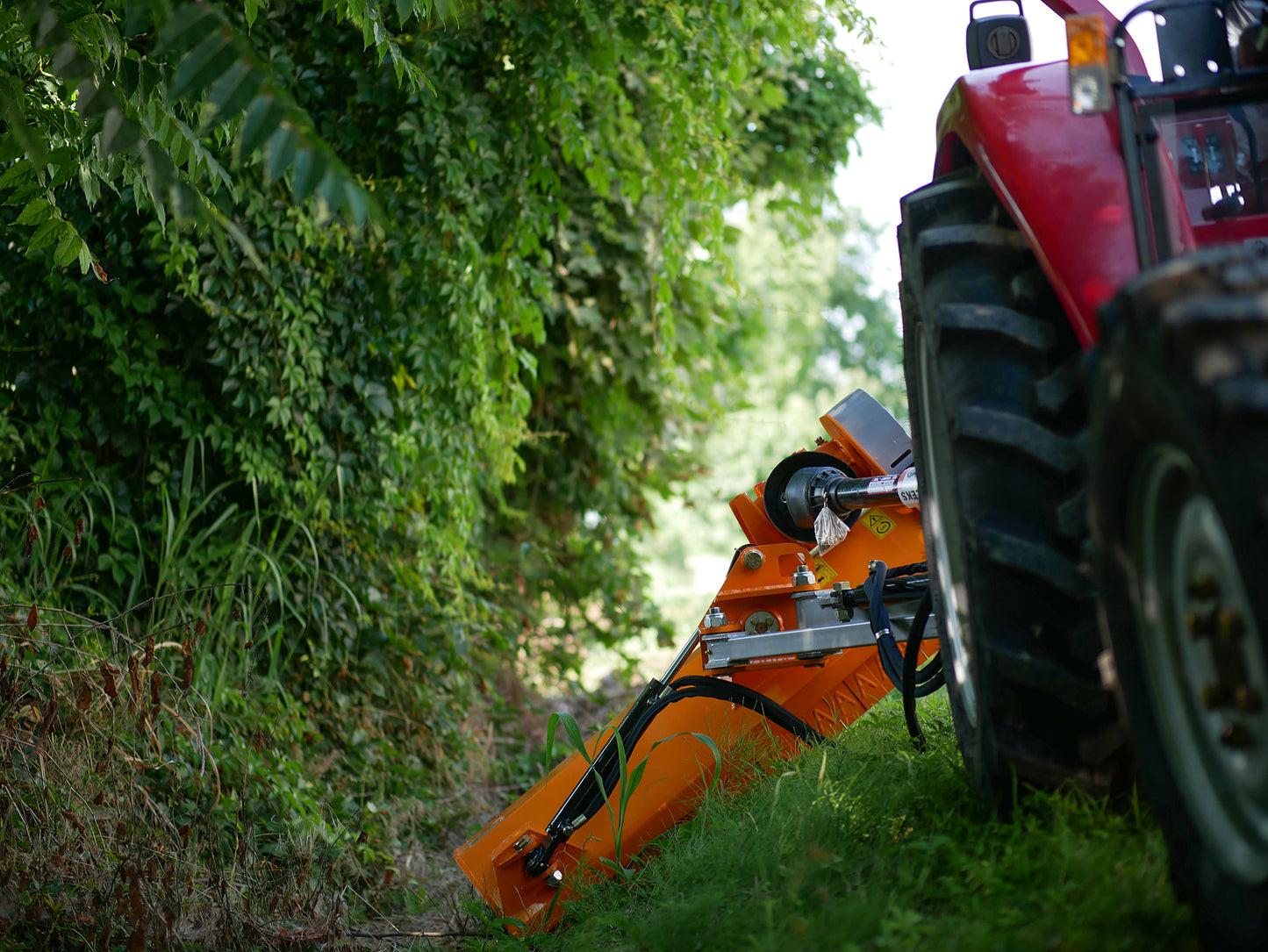

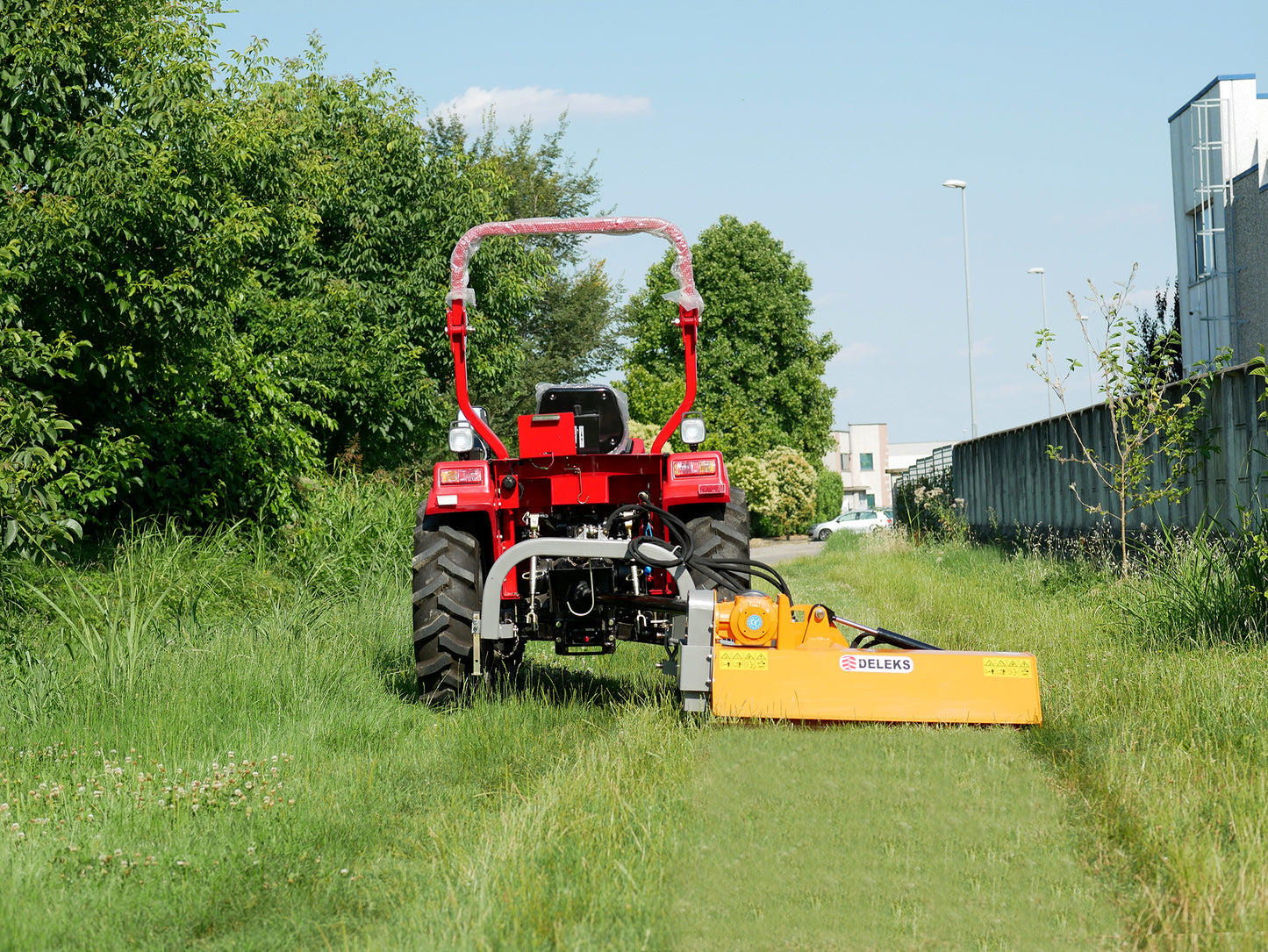

These offset verge flail mowers are ideal for cutting small twigs and branches (2-3cm) up to and around trees when used horizontally, making it suitable for working in confined areas.

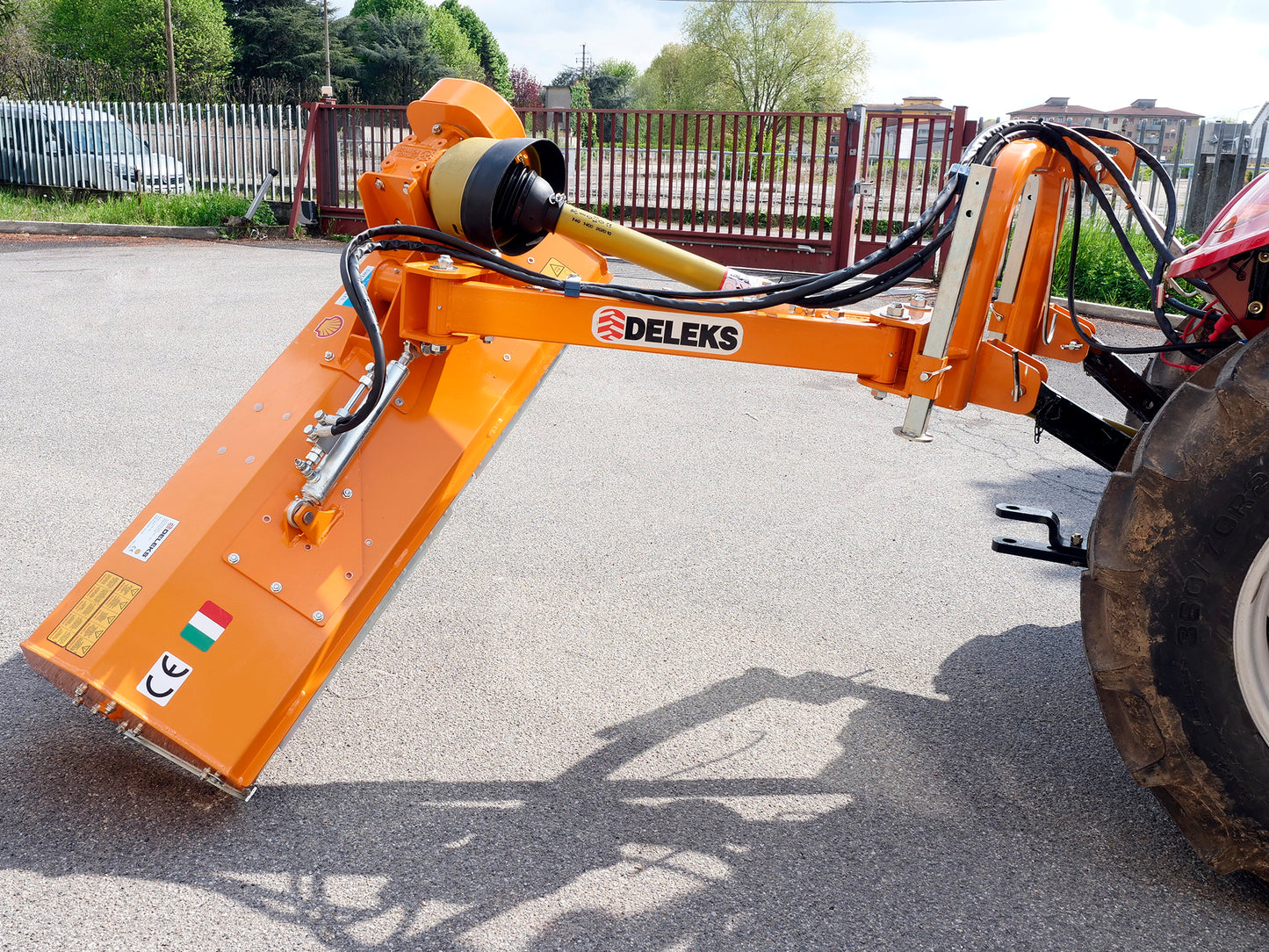

When tilted up or down, the flail will cut slopes on either verges or ditches.

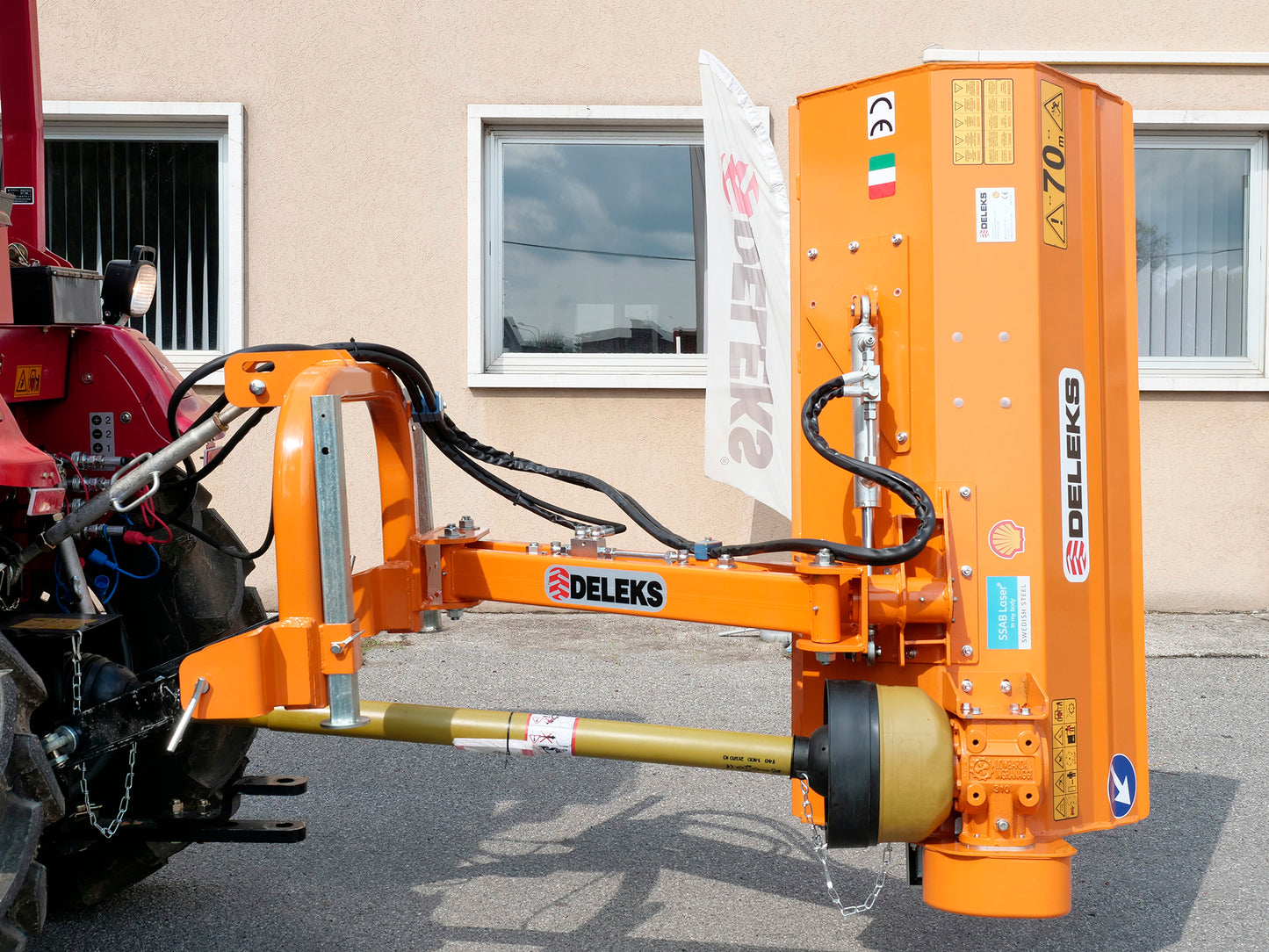

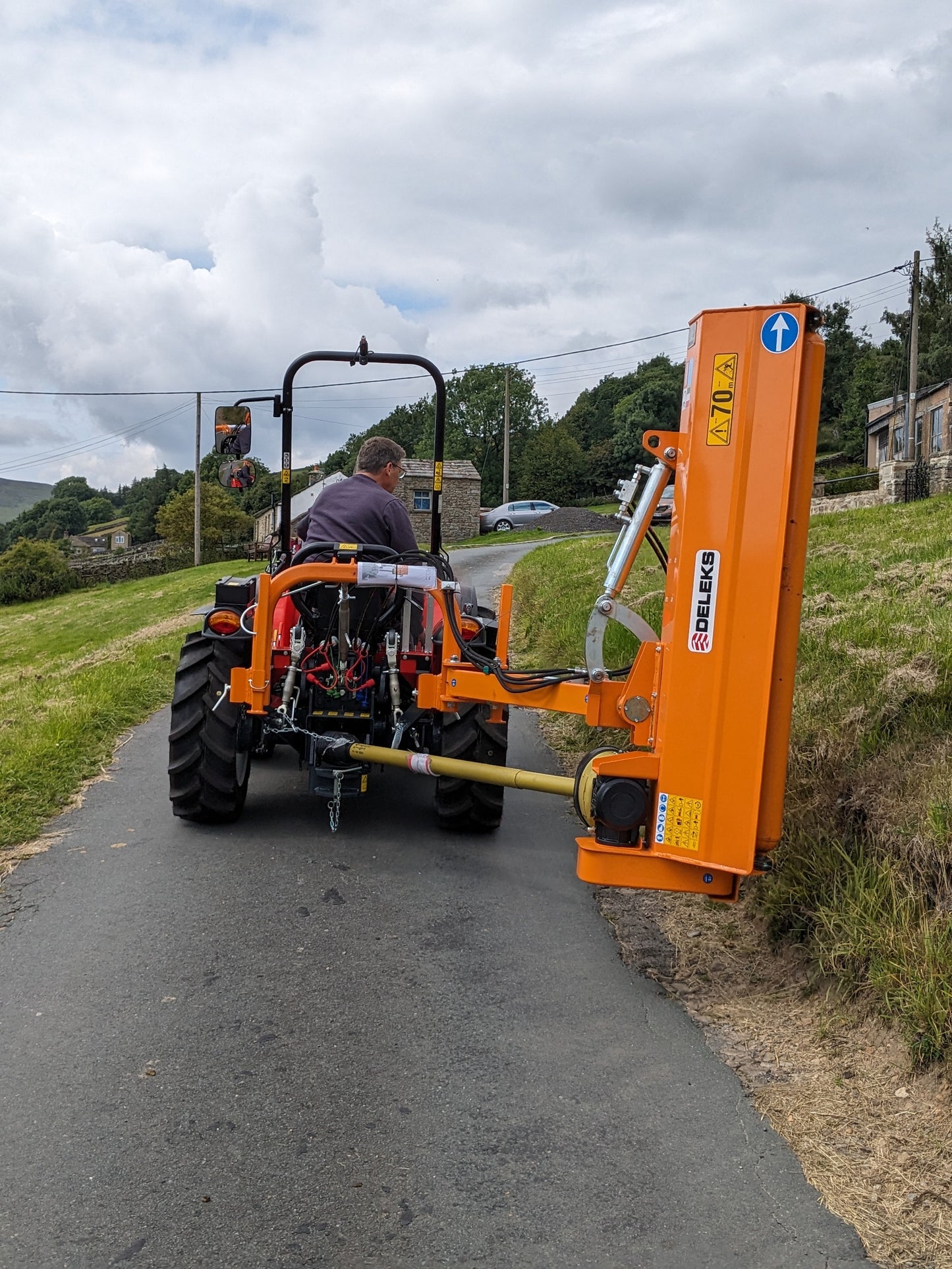

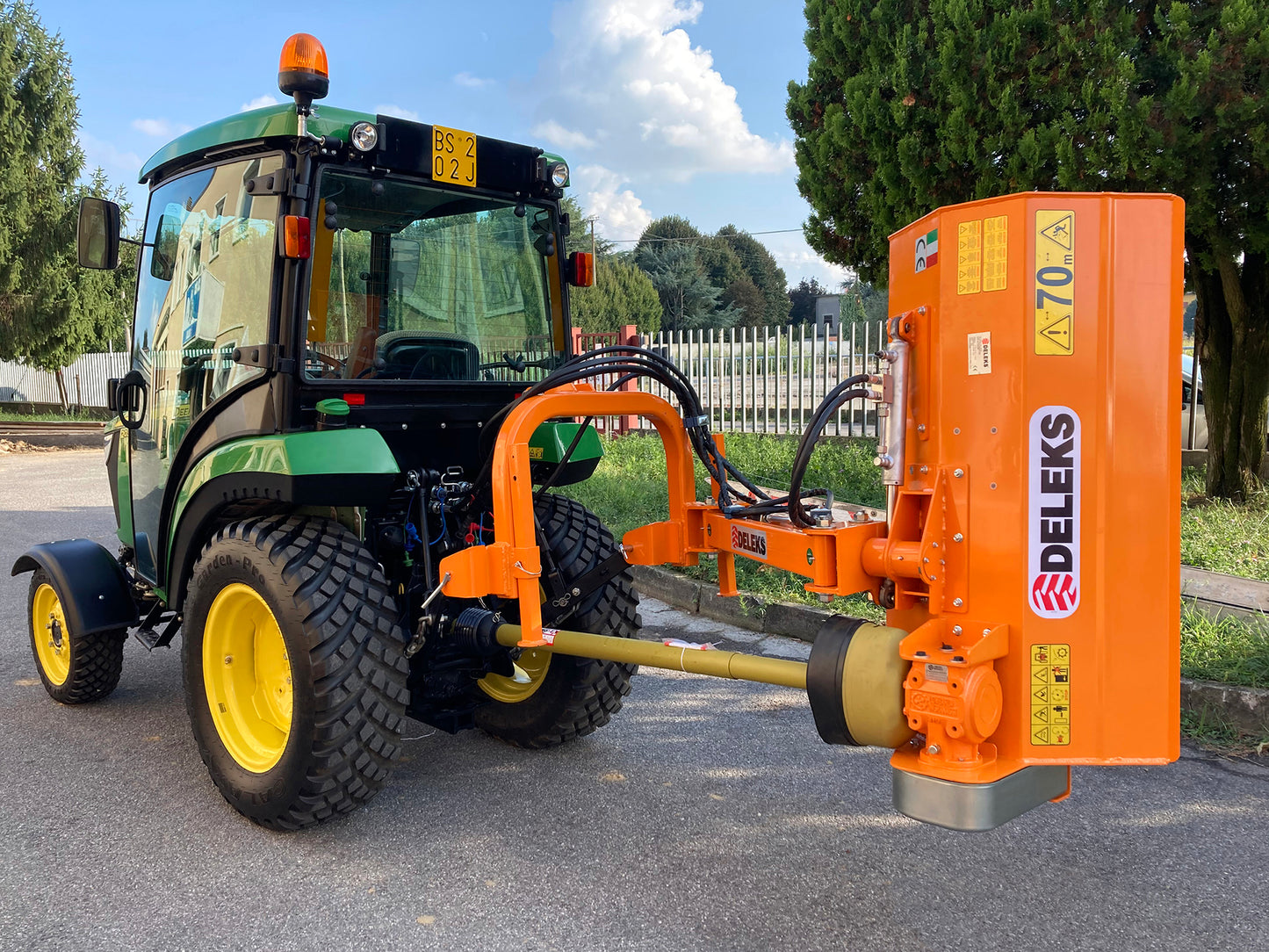

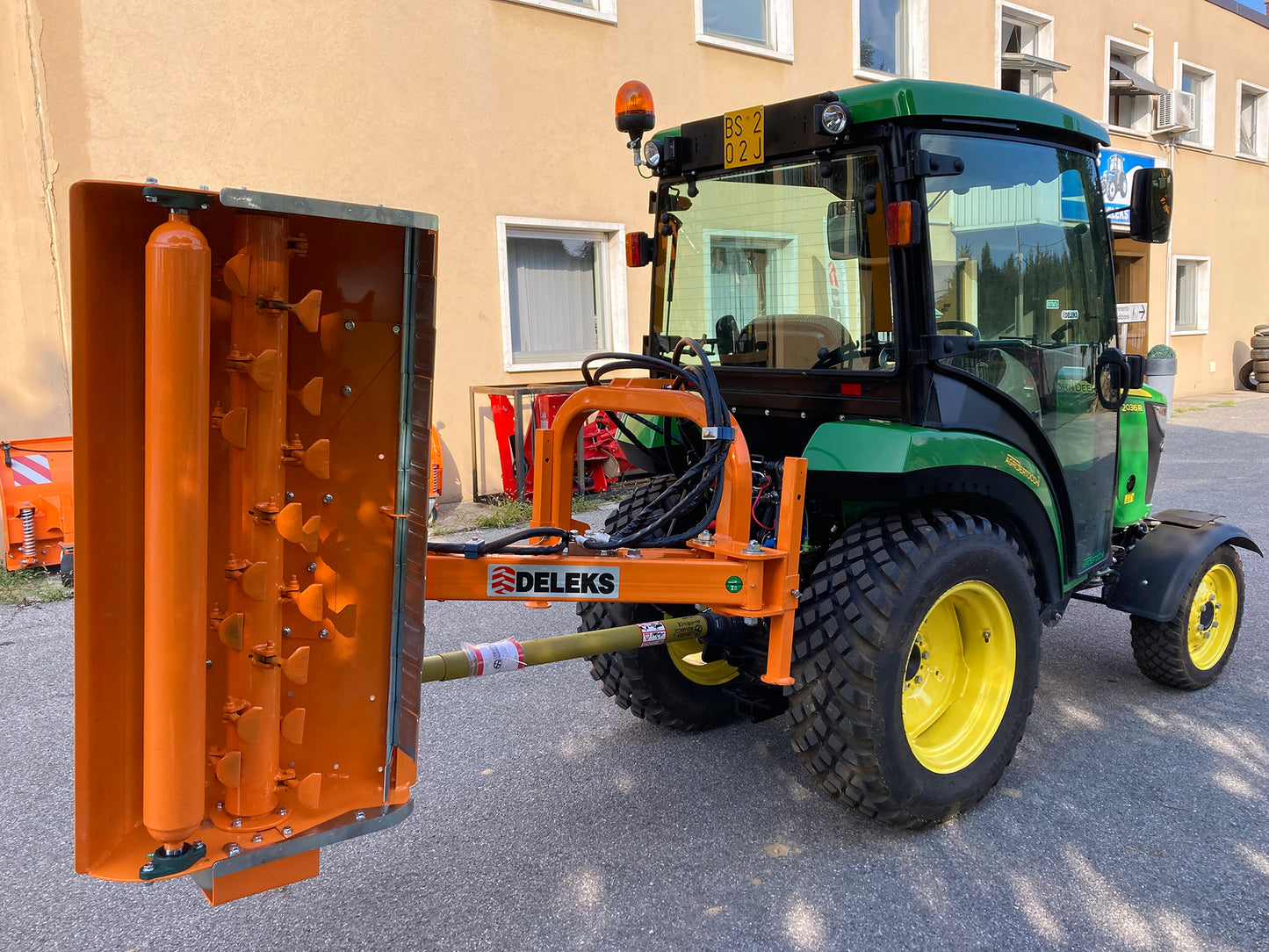

Finally, it can be set up to cut vertically for the sides of lower hedgerows.

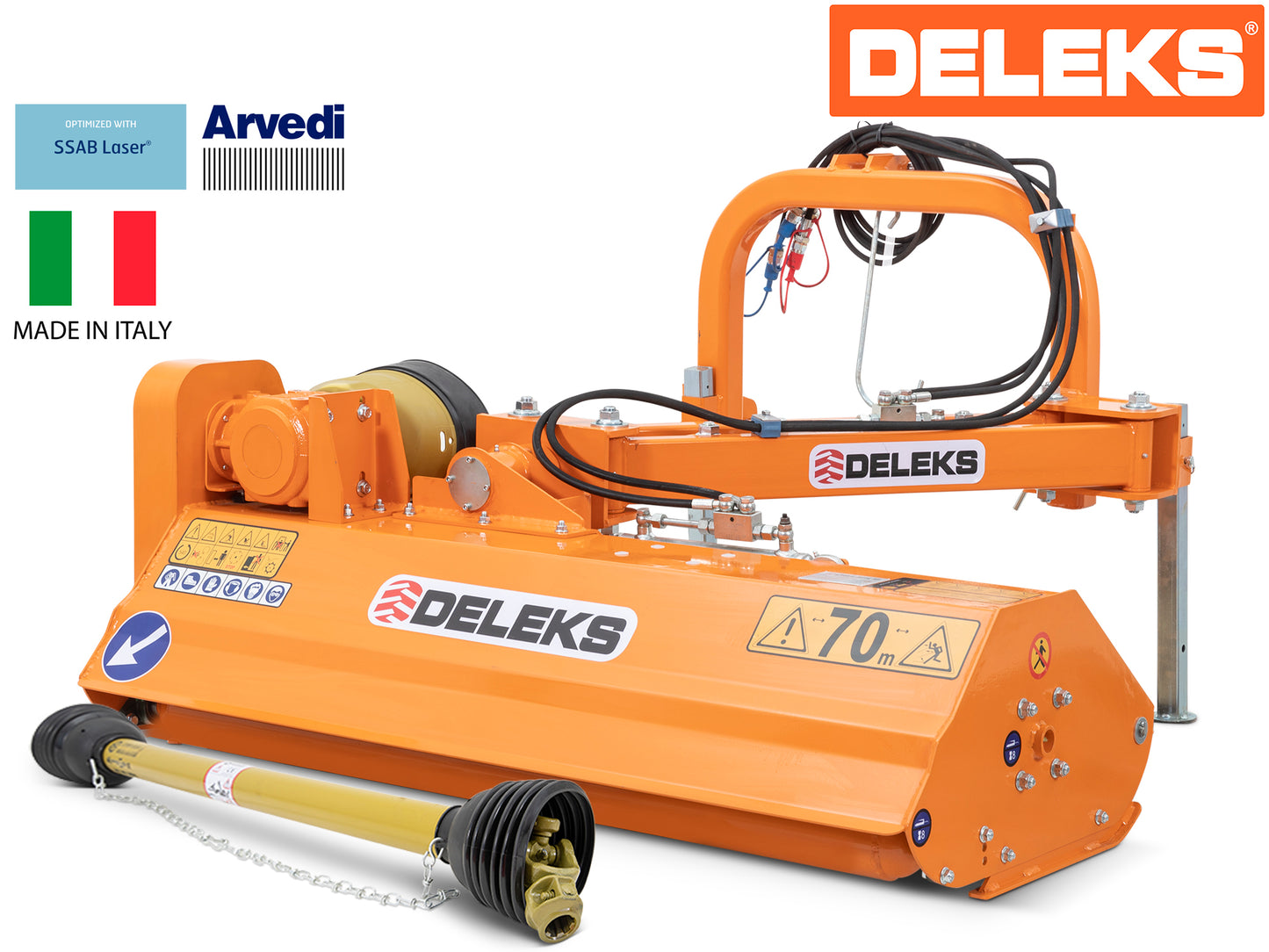

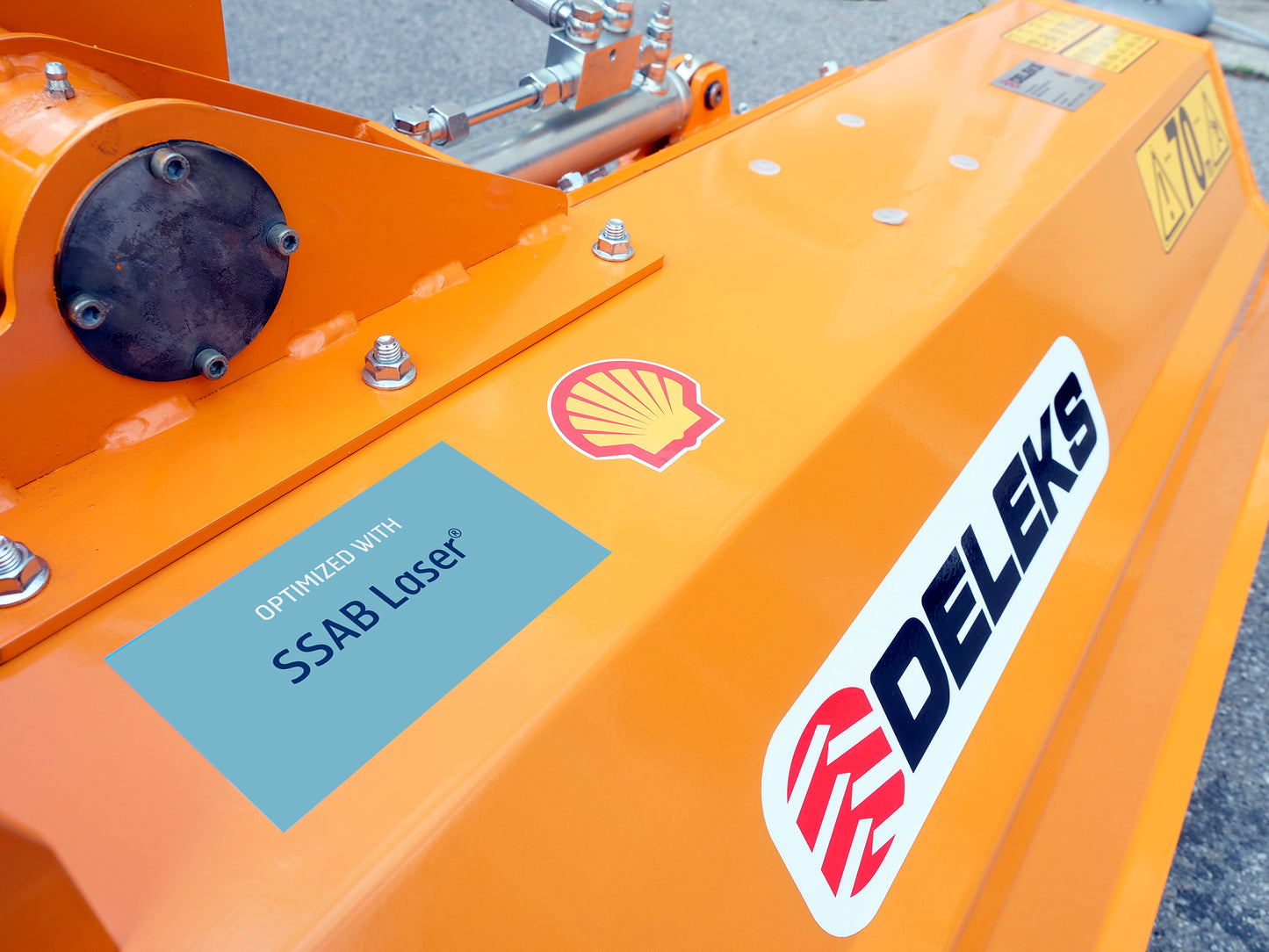

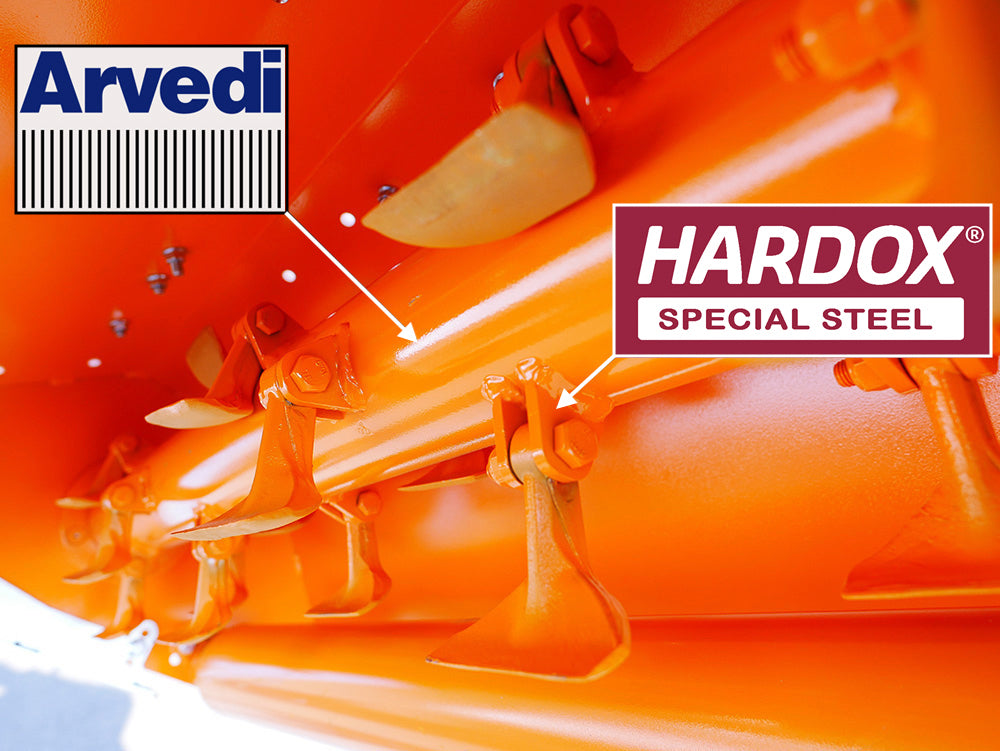

The frame is made entirely from Swedish SSAB steel, with an electronically balanced Arvedi rotor, with Hardox hammer brackets and fitted with forged steel hammers.

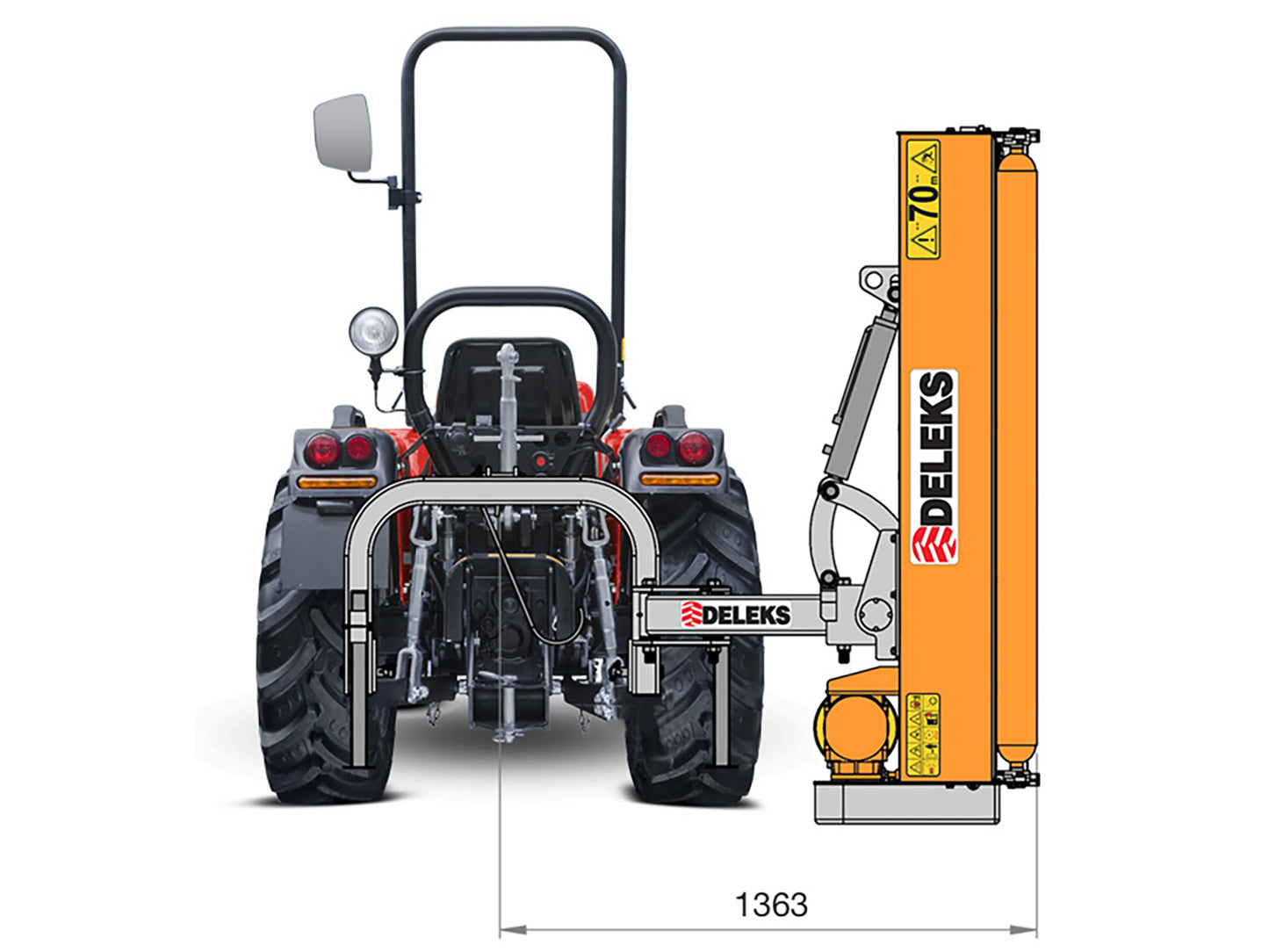

The internal gearbox works directly behind the tractor or to the right of the central axis.

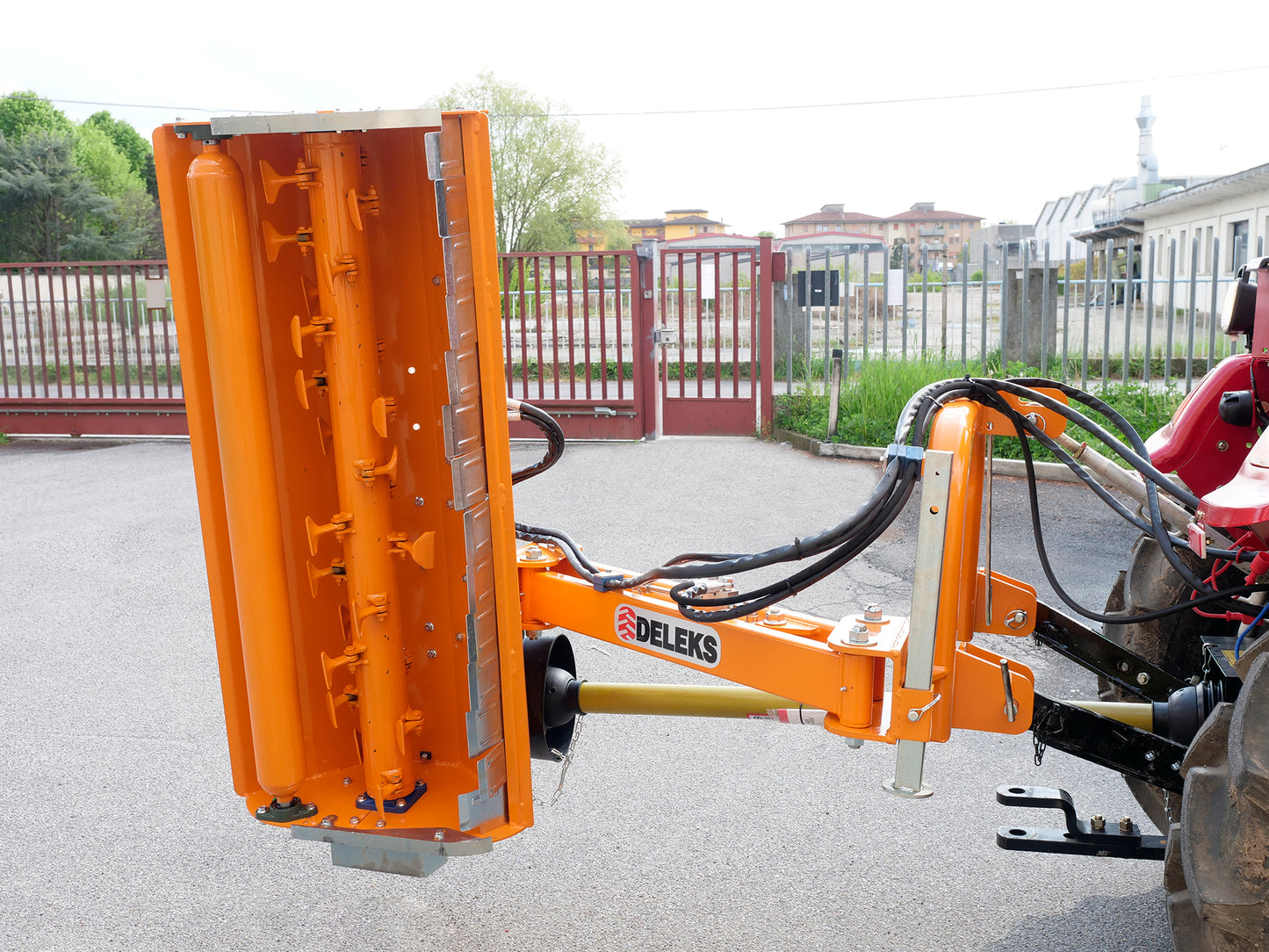

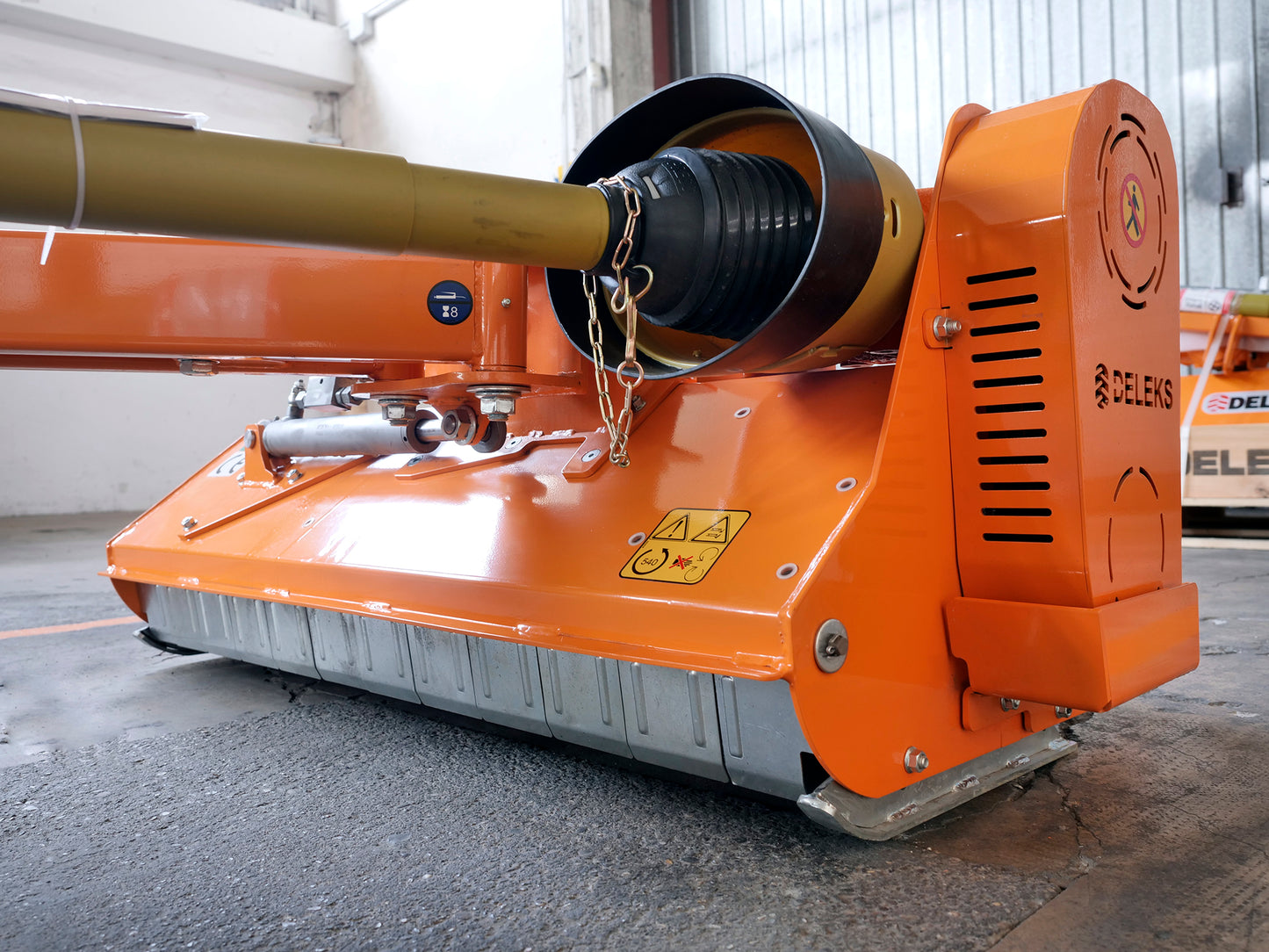

The body is equipped with an internal curb which diverts the grass towards the rotor for a mulching effect.
With external belt tensioner and adjustable roller to adjust cutting height and side skids.
Deleks manufacture their mowers using Swedish steel, Hardox and Arvedi balanced rollers and use Lombarda cast iron Italian gearboxes. Fitted with good quality bearings and drive belts, the process is then finished using a durable powder coat finish, which makes these stand out from their competitors.
With Deleks standard 2 year warranty.
Specifications
VOLPE-120 |
VOLPE-140 |
VOLPE-165 | |
---|---|---|---|
Working Width | 1200 mm | 1400 mm | 1694 mm |
Overall Width | 1320 mm | 1520 mm | 1870 mm |
Weight | 180 kg | 200 kg | 322 kg |
Tractor Power Range | 25 - 45 hp | 30 - 45 hp | 35 - 55 hp |
3-Point Linkage | Cat. 1 | Cat. 1 | Cat. 1 |
Number of Hammers | 18 | 26 | 30 |
Maximum Cutting Diameter | 20 - 30 mm | 20 - 30 mm | 20 - 30 mm |
Distance Between PTO Attachment and Ground | 472 mm | 472 mm | 472 mm |
Spacing Between 2 Lower Points | 655 - 755 mm | 655 - 755 mm | 650 - 900 mm |
Transmission : Drive Method | V Belts x 3 | V Belts x 3 | V Belts x 4 |
Transmission : PTO | 540 r/min | 540 r/min | 540 r/min |
Transmission : Rotation of Gearbox | Right Side | Right Side | Right Side |
Transmission : Free Wheel | Yes | Yes | Yes |
Transmission : Rotor Speed | 3150 rpm | 3150 rpm | 3150 rpm |
Transmission : Oil in Gearbox | Yes / SAE 120 - ISO 72925 | ||
Rotor Diameter | 102 mm | 102 mm | 102 mm |
Rotor Balancing | Electronic | Electronic | Electronic |
Hammer Weight | 330 g | 330 g | 330 g |
Rear Roller Diameter | 102 mm | 102 mm | 102 mm |
Hydraulic Cylinder A diameter | 50 - 25 mm | 50 - 25 mm | 55 - 21 mm |
Hydraulic Cylinder B diameter | 60 - 30 mm | 60 - 30 mm | 55 - 21 mm |
Min / Max Relief Pressure | 120 - 150 bar | 120 - 150 bar | 120 - 150 bar |
Min / Max Flow | 18 - 22 l/min | 18 - 22 l/min | 18 - 22 l/min |
Hydraulic Hoses | WP 400 Bar, 1/2" Agri Standard | ||

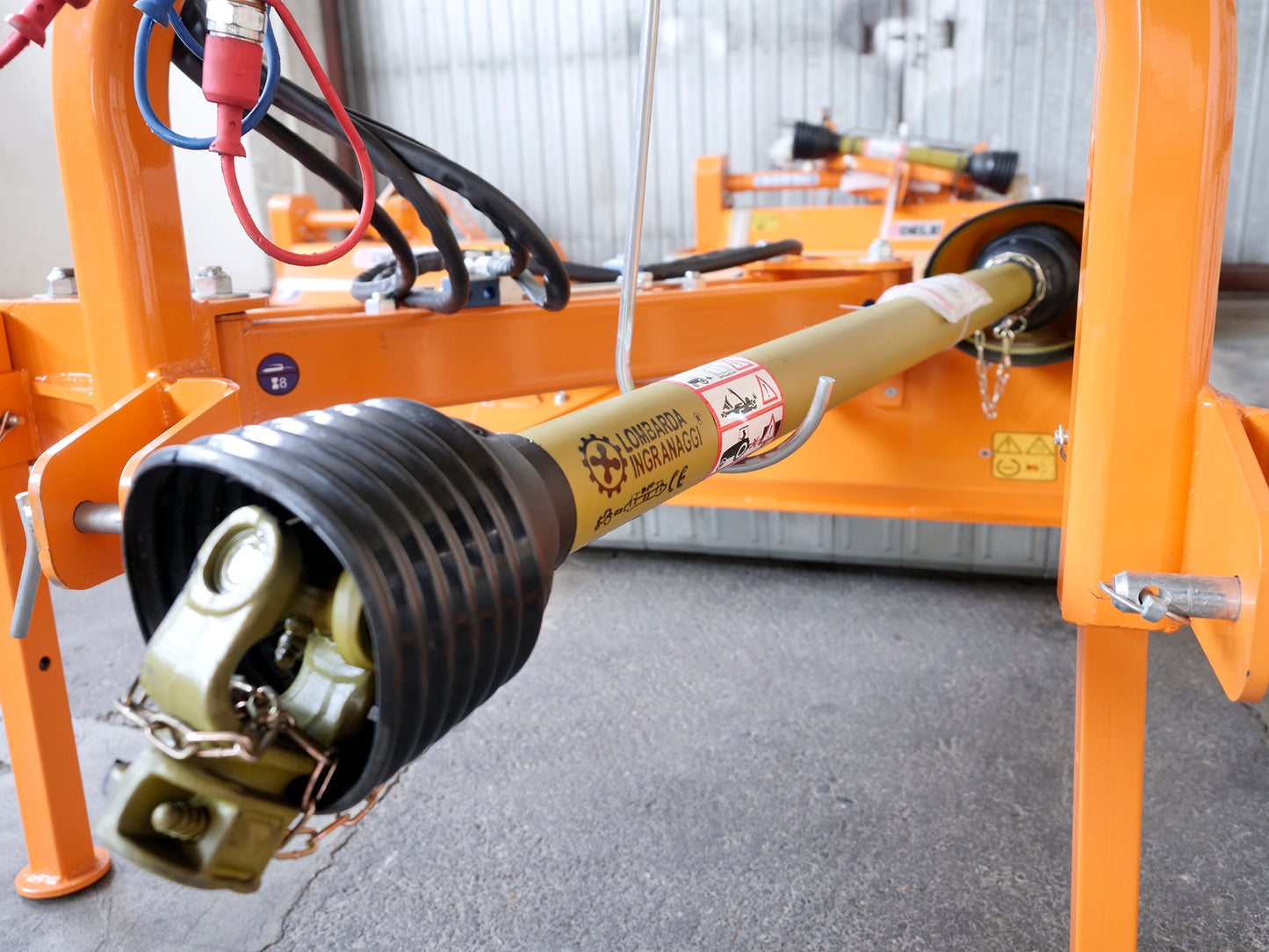

PTO Shaft | CE 4 x 1400 mm | CE 4 x 1400 mm | CE 4 x 1600 mm |
Packing Size | 1350 x 850 x 700 mm | 1550 x 850 x 700 mm | 1840 x 760 x 660 mm |
PRICE | VOLPE-120 £2195 +VAT (£2634 inc VAT) |
VOLPE-140 |
VOLPE-165 |
Prices are quoted ex-works CTM and will be subject to carriage / delivery charges and VAT at the current rate.
To order or for further information, please call us on 01748 886622 or complete the enquiry form to email us directly.
