Deleks APE Flail Mowers for Compact Tractors
Deleks APE Flail Mowers for Compact Tractors

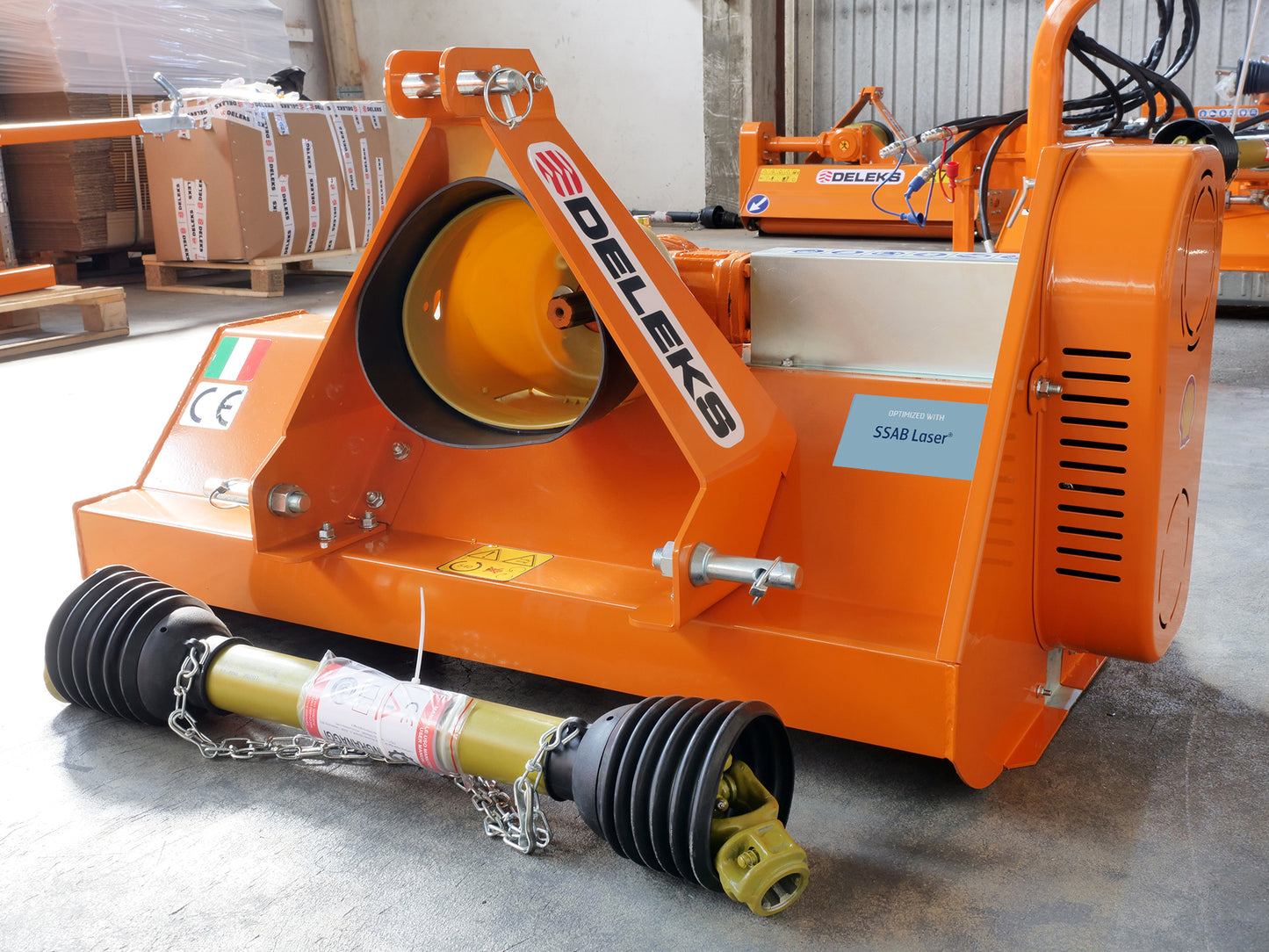

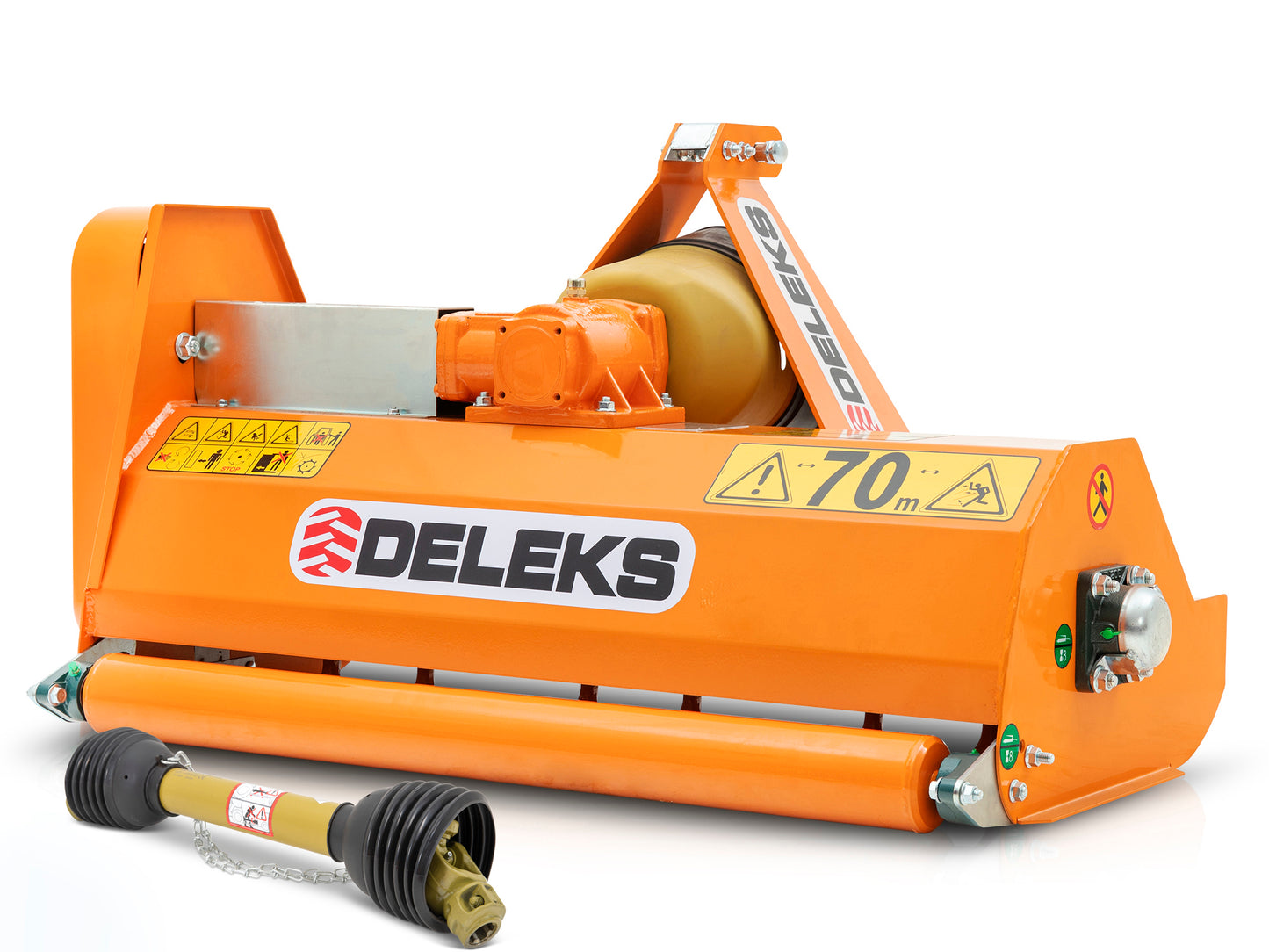

CTM's Flail Mowers are manufactured by Deleks of Italy and are high quality, robust mowers, suitable for cutting most things from normal grass to brambles and scrub.

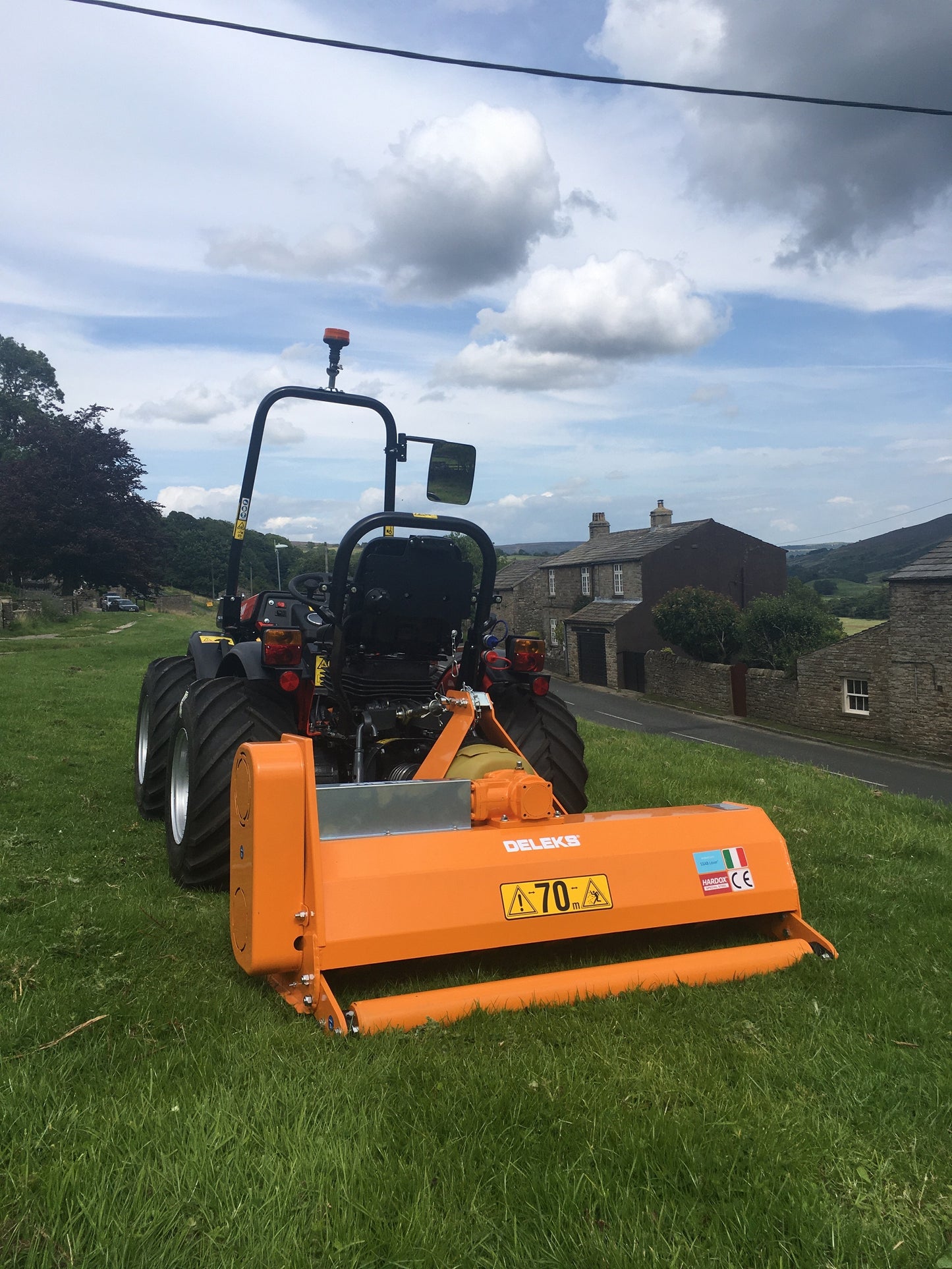

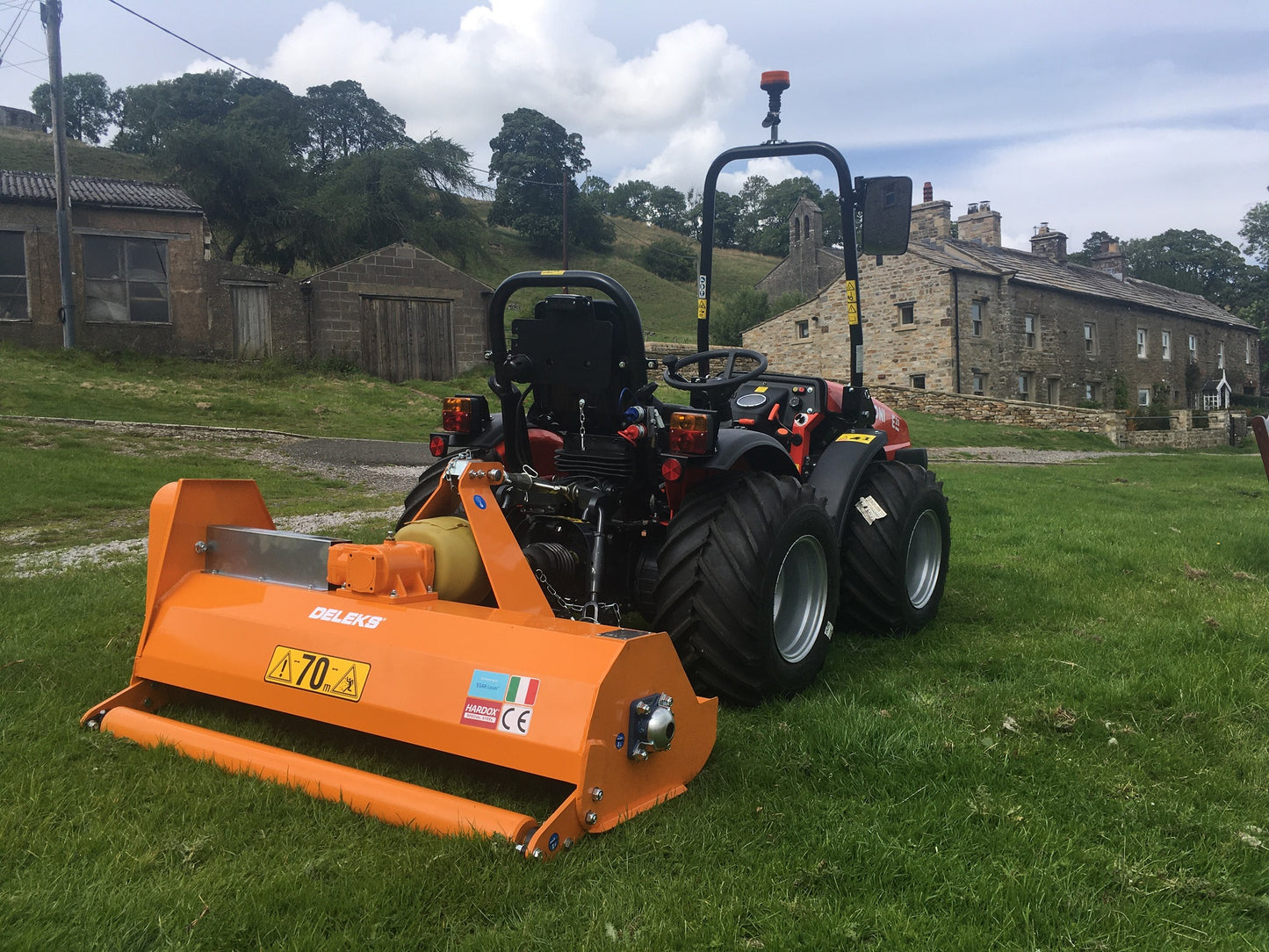

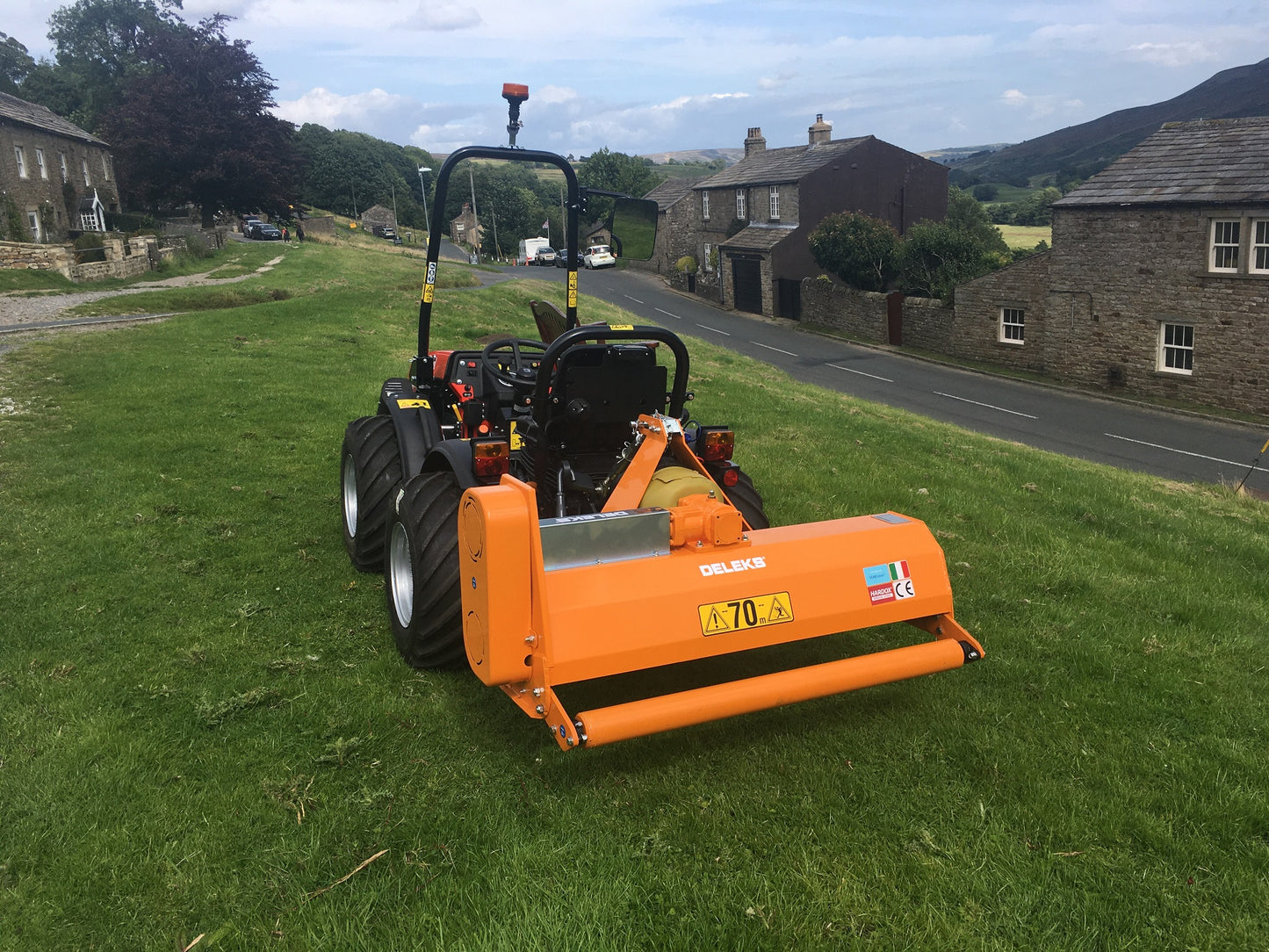

Designed for small and compact tractors from 16 hp to 30 hp. With either 1.0m or 1.2m working width.

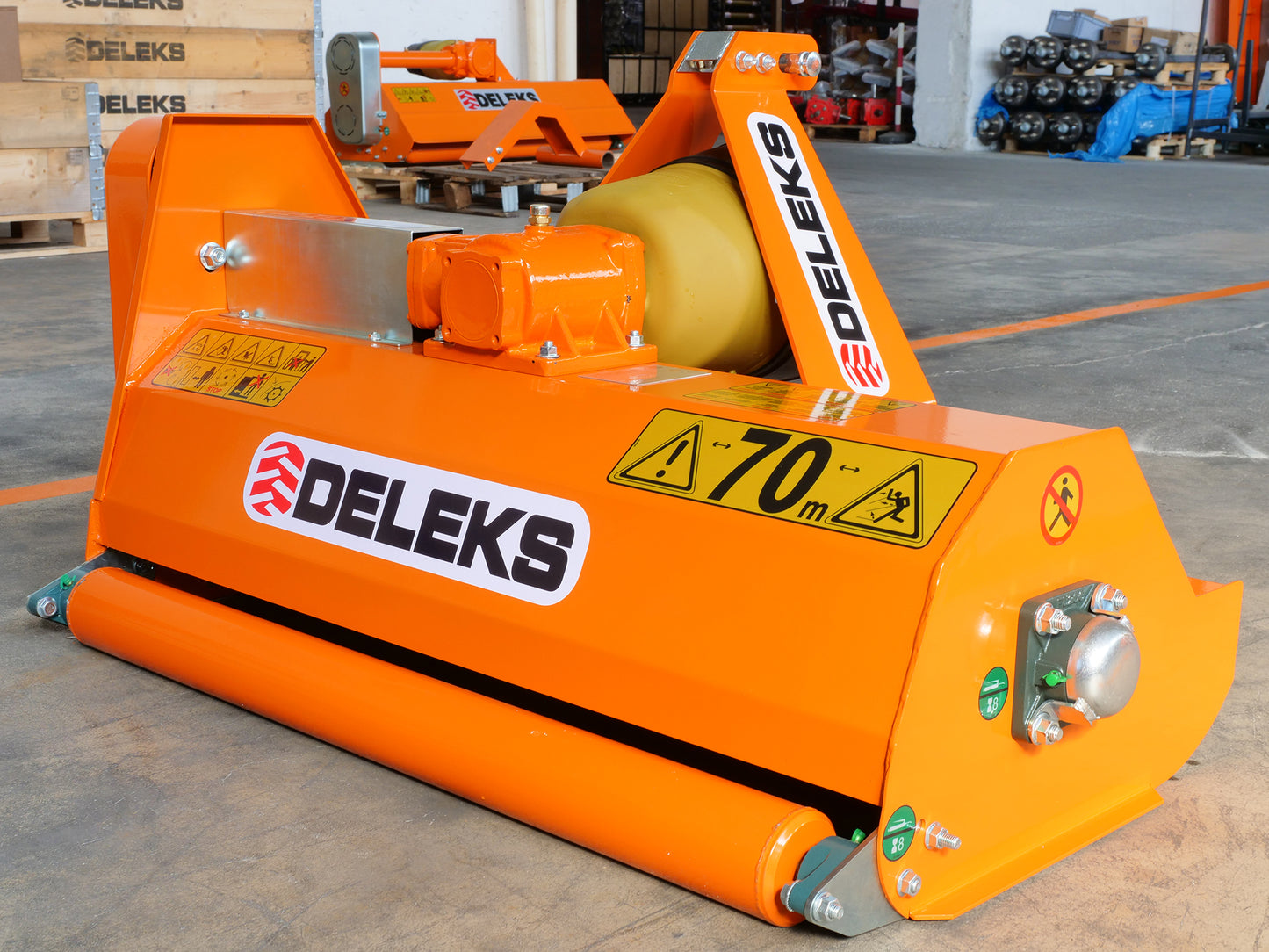

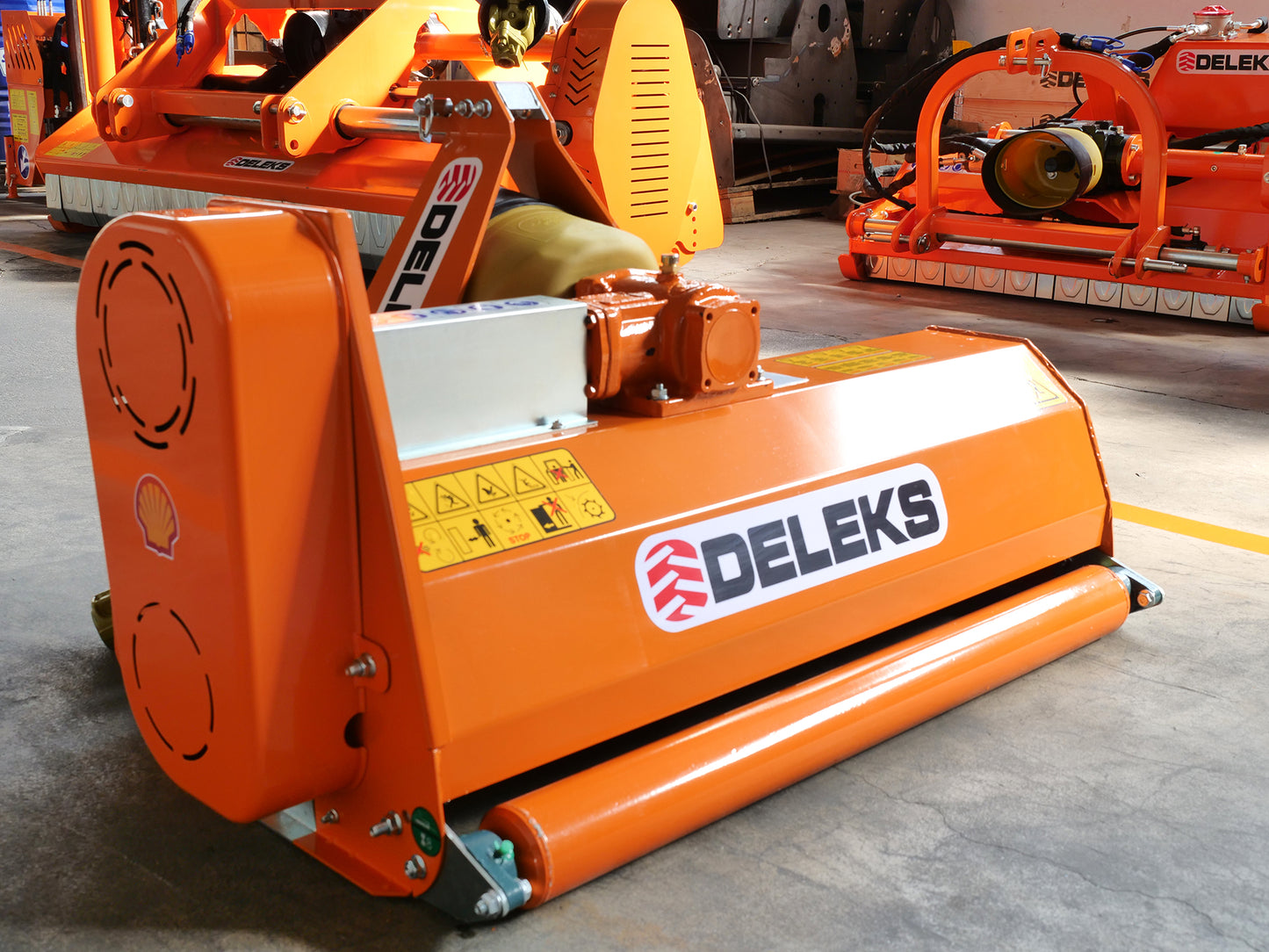

A flail mower has the added advantage of also shredding the growth, thereby leaving behind a minimal amount. A full width roller controls the exact cutting height.

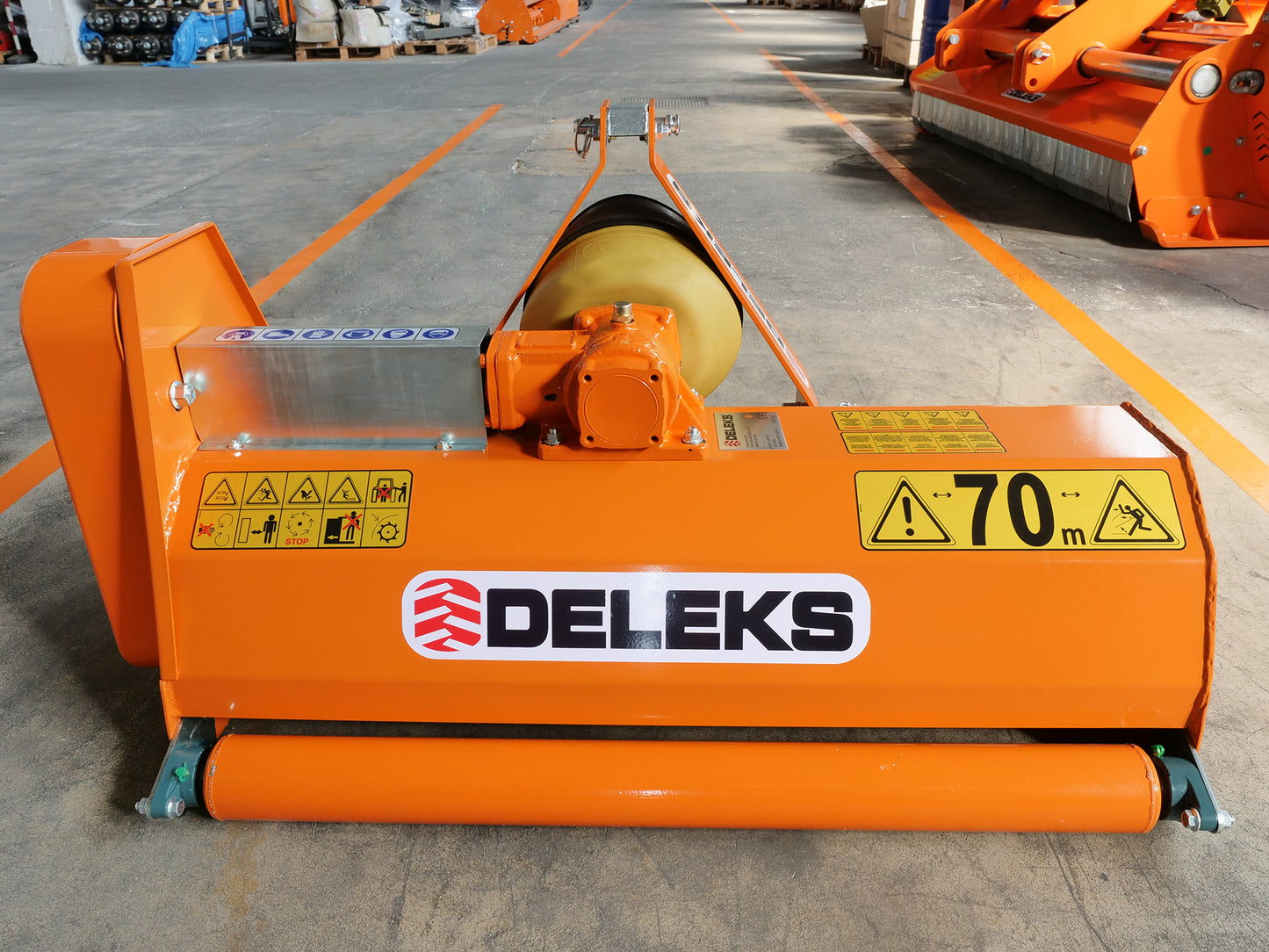

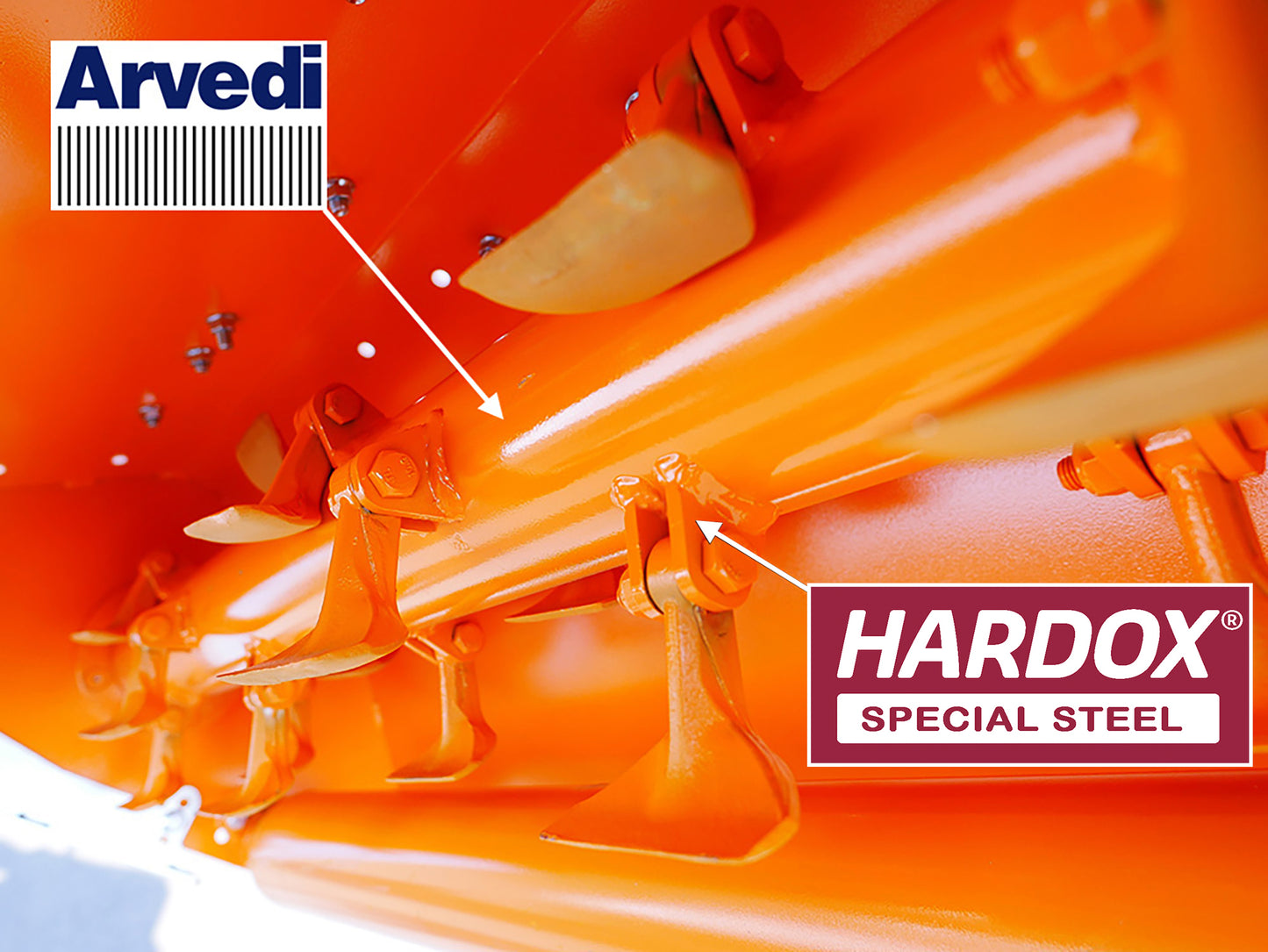

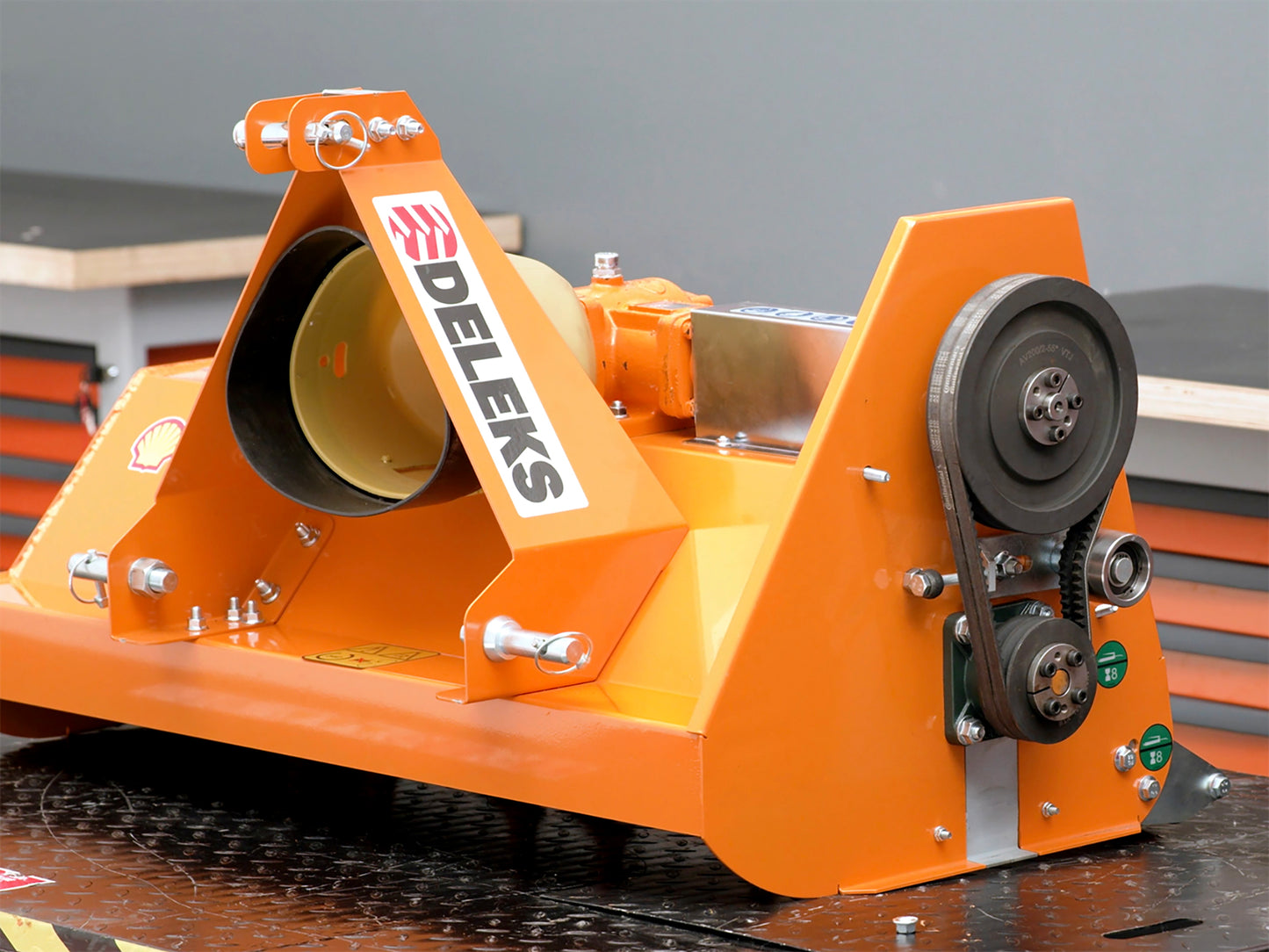

The drive for the machine is from the tractor PTO through a gearbox, and incorporates two heavy-duty drive belts with external adjustable tension control. With an electronically balanced rotor and forged steel hammers for cutting through grass and thicker vegetation.

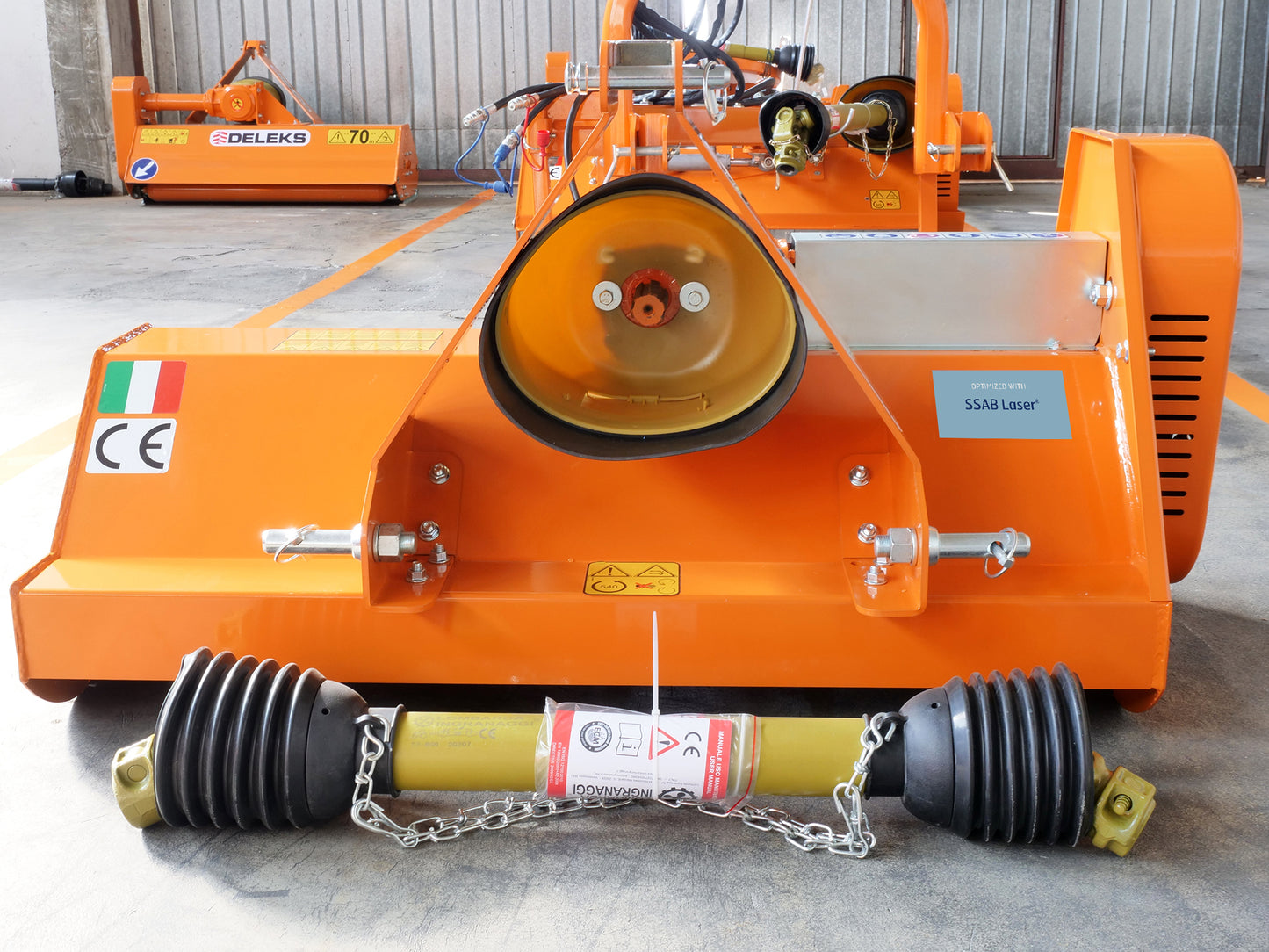

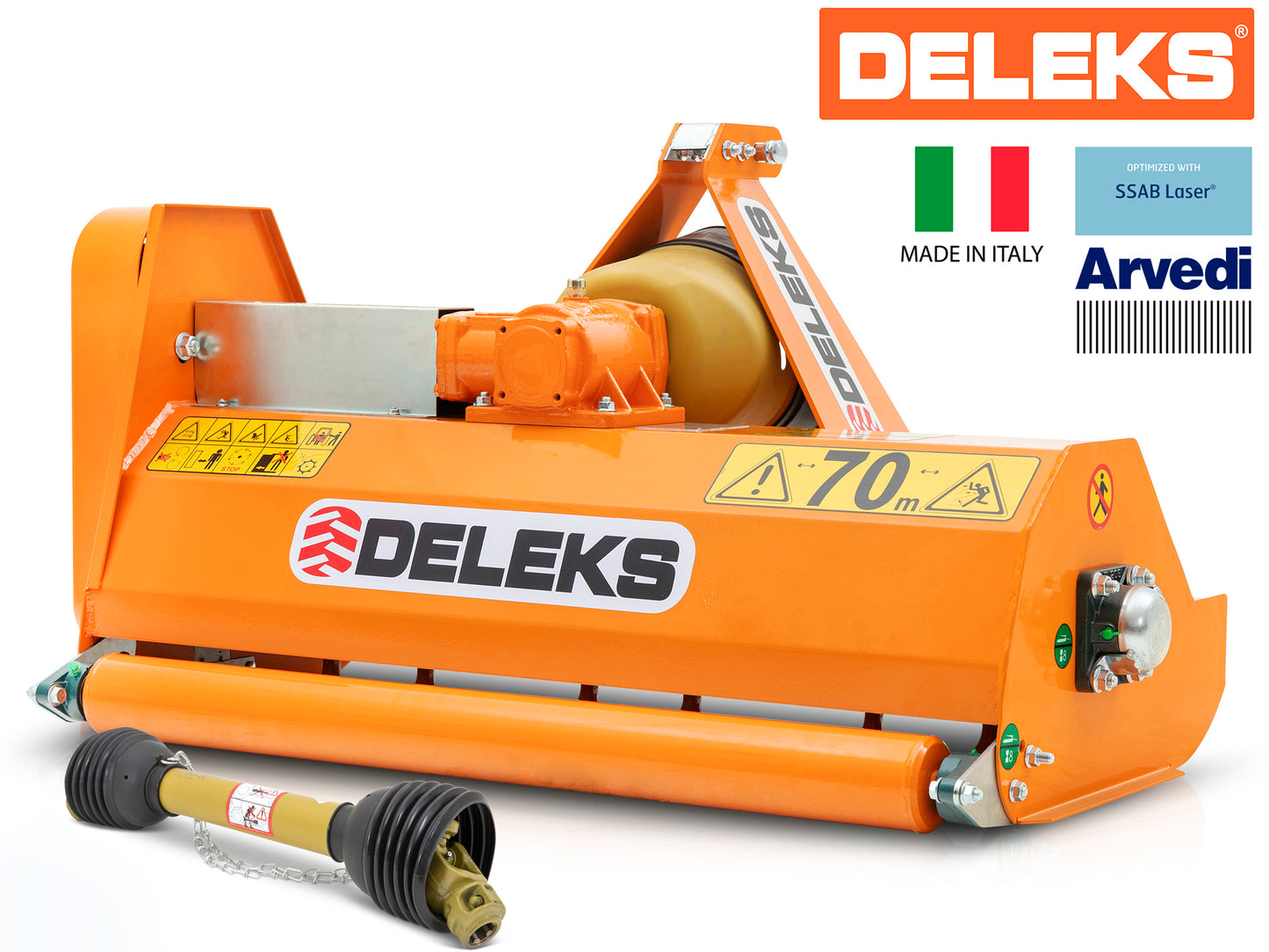

The frame is made from Swedish SSAB steel for strength and durability. Experience the power and versatility of Deleks APE Flail Mowers! Perfect for small and compact tractors from 16 hp to 30 hp, this mower offers a 1.0m or 1.2m working width and the added benefit of shredding growth for a clean, minimal finish. With a full-width roller and adjustable cutting height, you have precise control over your mowing.
The PTO-driven gearbox and two heavy-duty drive belts ensure efficient and reliable operation, while the electronically balanced rotor and forged steel hammers easily tackle both grass and thicker vegetation. Crafted from durable Swedish SSAB steel, you can trust in the strength and longevity of this flail mower.
Choose Deleks APE for your landscaping needs and experience the difference in quality and performance!
With Deleks 2 year warranty.
Specifications
APE-100 | APE-120 | |
---|---|---|
Working Width | 1000 mm | 1200 mm |
Overall Width | 1150 mm | 1350 mm |
Weight | 105 kg | 120 kg |
Tractor Power Range | 12 - 30 hp | 12 - 30 hp |
3-Point Linkage | Cat. 1 | Cat. 1 |
Number of Hammers | 24 | 28 |
Maximum Cutting Diameter | 10 - 20 mm | 10 - 20 mm |
Distance Between PTO Attachment and Ground | 385 mm | 385 mm |
Main Hood & Side Thickness | 3 mm | 3 mm |
Spacing Between 2 Lower Points | 380 - 580 mm | 380 - 580 mm |
Transmission : Drive Method | V Belts x 2 | V Belts x 2 |
Transmission : PTO | 540 r/min | 540 r/min |
Transmission : Rotation of Gearbox | Right Side | Right Side |
Transmission : Free Wheel | Yes | Yes |
Transmission : Rotor Speed | 3000 rpm | 3000 rpm |
Transmission : Oil in Gearbox | Yes / SAE 120 - ISO 72925 | Yes / SAE 120 - ISO 7295 |
Rotor Diameter | 76 mm | 76 mm |
Rotor Sheet Thickness | 8 mm | 8 mm |
Rotor Balancing | Electronic | Electronic |
Hammer Weight | 330 g | 330 g |
Rear Roller Diameter | 85 mm | 76 mm |
Rear Roller Sheet Thickness | 6.3 mm | 8 mm |

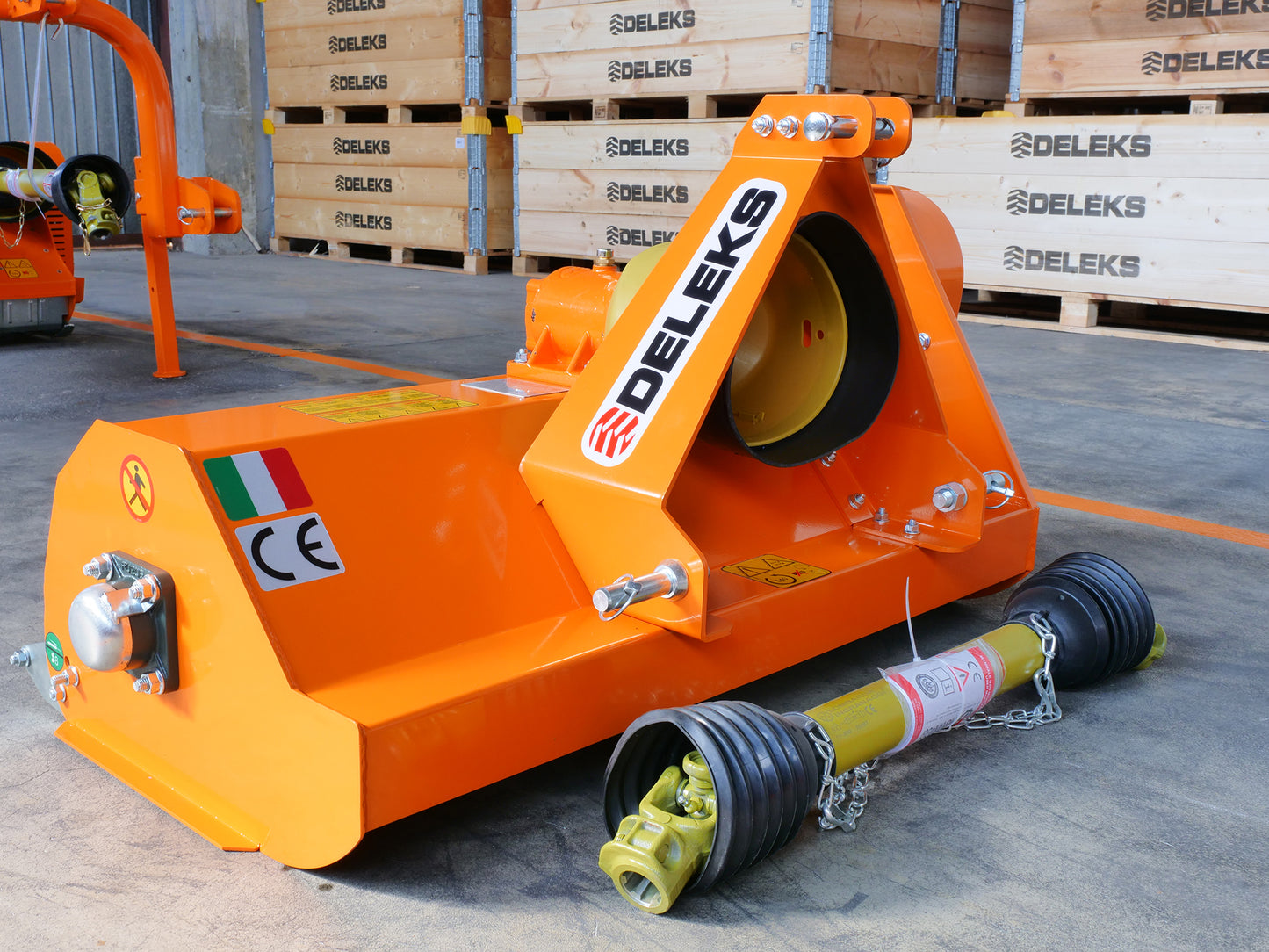

PTO Shaft | CE 2 x 800 mm | CE 2 x 800 mm |
Packing Size | 1200 x 800 x 660 mm | 1400 x 800 x 660 mm |
PRICE |
APE-100 |
APE-120 £1195 +VAT (£1434 inc VAT) |
All prices are quoted ex-works CTM and are subject to carriage/delivery charges and VAT at the current rate.
To order, or for further information, please contact us on 01748 886622 or complete our enquiry form to email us.
