Caron Series 100 EVO 4

Caron Series 100 EVO 4

Price on Request

Get in touch to discuss the Caron Series 100 EVO 4 with CTM experts to ensure the right solution for you.

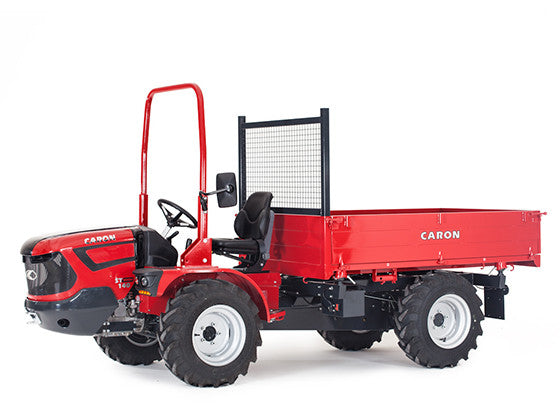

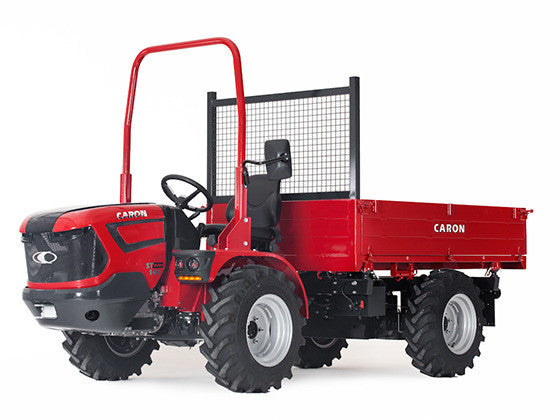

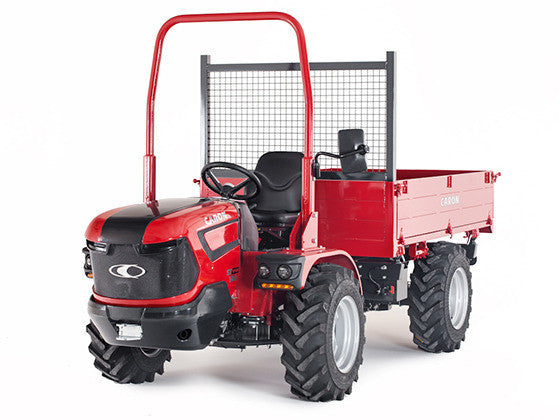

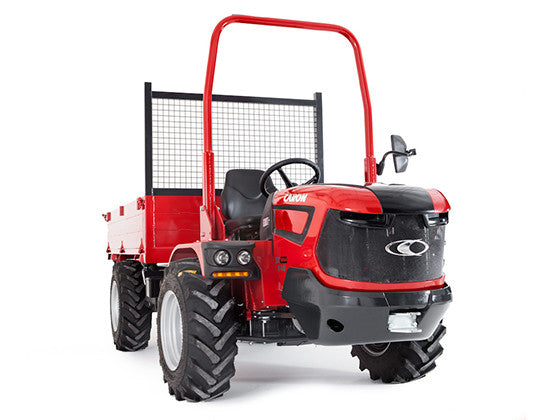

SERIES AR 100 EVO 4 – articulated

Series 100 is the "little" model of the Caron range.  Thanks to its lightweight and small size, this model is extremely agile and handy, ideal for private users.

Engines from 25hp to 40hp
Max speed 30-40 km/h
Total approved masses of 3,500 kg
Loading capacities up to 2,200 kg

With European Approval as agricultural tractor. Total approved mass 3,500 kg, towable mass of 1,000 kg (unbraked).



AR 190: 18 speed non-synchronized gearbox, 12fwd/6rev, 40hp
AR 140: 9 speed non-synchronized gearbox, 6fwd/3rev, 25hp

STANDARD FITTINGS
• Front standard protection arch approved as ROPS
• Driving platform on silent-blocks

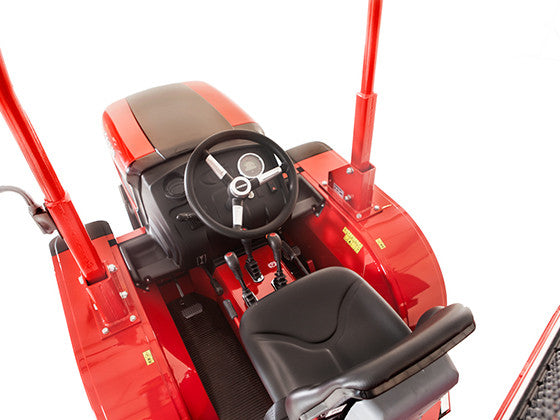

• Adjustable seat with mechanic suspensions, with safety belts
• Dashboard complete with chrono/rate gyroscope and warning lights
• Battery master-switch
• Toolbox
• Max speed 40 km/h (30 km/h for AR/ST 140)
• Central joint
• 4x4 Drive
• Rear axle lock
• Steering: hydraulic
• Brakes: dual hydraulic braking system, Ø 290mm, on the 4 wheels
• Handbrake: mechanic parking brake on rear wheels
• Wheelbase 2080 mm

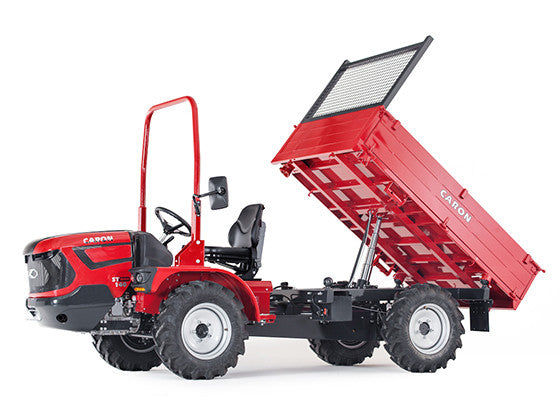

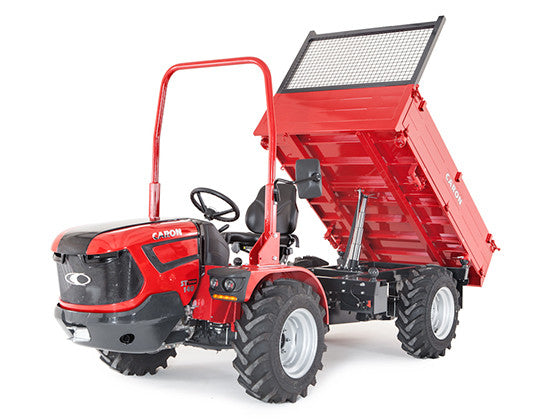

• 3-way hydraulic dump body (2100x1350x360 mm) with protection grid
