Caron Series 200/300 EVO 4

Series 200 and 300 are in the "middle" of the EVO4 Caron range.  Designed for those operators demanding the right balance between dimensions and loading capacity to work in very narrow plaes without giving up 2 tonnes of loading capacity.

Engines from 25hp to 40hp
Max speed 40 km/h
Total approved masses of 3,500 kg
Loading capacities up to 2,000 kg

European Approval as agricultural tractor.  1 seat with safety belt.
Total approved mass 3,500 kg, towable mass of 1,000 kg (unbraked)

ST 390: 24 speed, synchronised gearbox, 16 fwd / 8 rev, 40hp
ST 340: 24 speed, synchronised gearbox, 16 fwd / 8 rev, 25hp
ST 240: 18 speed, non-synchronised geabox, 12 fwd / 6 rev, 25hp

STANDARD FITTINGS

• Front standard protection arch approved as ROPS
• Driving platform on silent-blocks
• Adjustable seat with mechanic suspensions, with safety belts

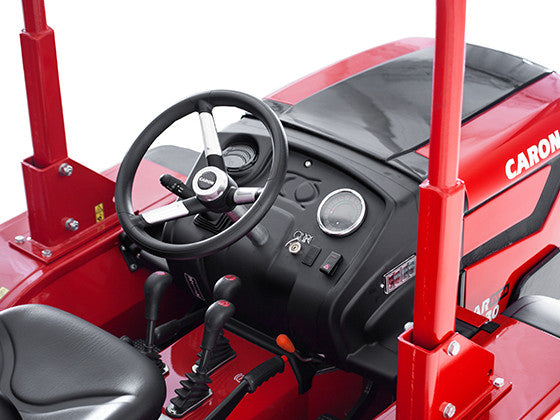

• Dashboard complete with chrono/rate gyroscope and warning lights
• Battery master-switch
• Toolbox
• Central joint
• 4x4 Drive, w/disengagement of front drive
• Rear axle lock
• Steering: hydraulic
• Brakes: dual hydraulic braking system on the 4 wheels, Ø 290mm
• Handbrake: mechanic parking brake on rear wheels
• Wheelbase 2220 mm

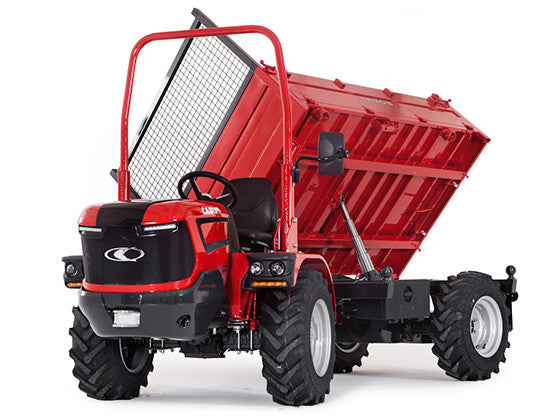

• 3-way hydraulic dump body (2300x1470x400 mm) with protection grid
