Caron Series 500/600 EVO 4

Caron Series 500/600 EVO 4

Price on Request

Get in touch to discuss the Caron Series 500/600 EVO 4 with CTM experts to ensure the right solution for you.

Series 500 and 600 are at the top of the Caron single-seat range.  These sturdy and professional tractors are designed for those operators requiring the greatest efficiency and reliability, but above all, safety.

Engines from 49hp to 63hp
Max speed 40 km/h
Total approved masses from 3,500 kg up to 5,000 kg
Loading capacities up to 3,300 kg

SERIES ST 600 EVO 4 – front steering wheels
European Approval as agricultural tractor with total approved mass 5,000 kg, towable mass of 1,000 kg (unbraked). 1 seat with safety belt

SERIES ST 500 EVO 4 – front steering wheels
European Approval as agricultural tractor with total approved mass 3,500 kg, towable mass of 1,000 kg (unbraked). 1 seat with safety belt



STANDARD FITTINGS

  • Front standard protection arch approved as ROPS

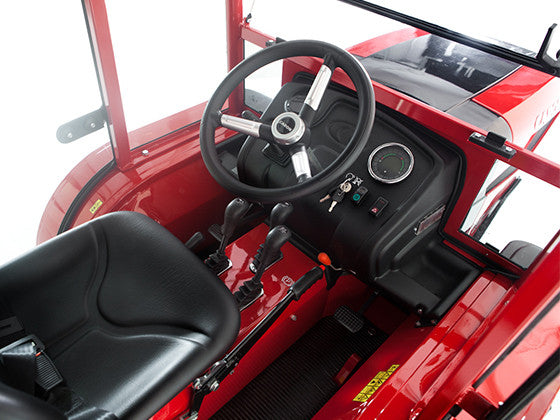

  • Driving platform on silent-blocks
  • Adjustable seat with mechanic suspensions, with safety belts
  • Dashboard complete with chrono/rate gyroscope and warning lights
  • Complete lights and Led daytime running lights
  • Battery master-switch
  • Toolbox
  • 24 speeds-synchronized gearbox, 16fwd/8rev, max speed 40 km/h
  • Central joint
  • 4x4 Drive, w/disengagement of front drive
  • Rear axle lock
  • Steering: hydraulic
  • Brakes: dual hydraulic braking system on the 4 wheels, Ø 290mm (Series 600: with floating jaws, “Miniservo” type)
  • Handbrake: mechanic parking brake on rear wheels
  • Wheelbase 2520 mm

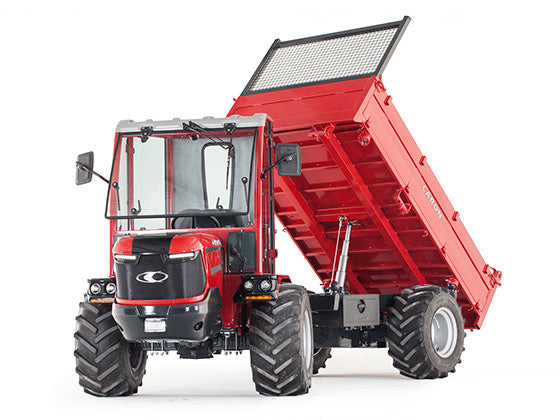

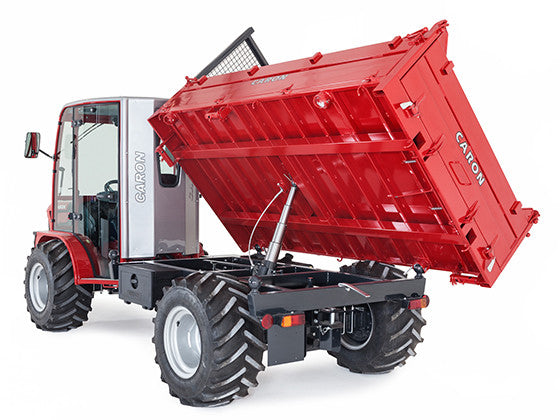

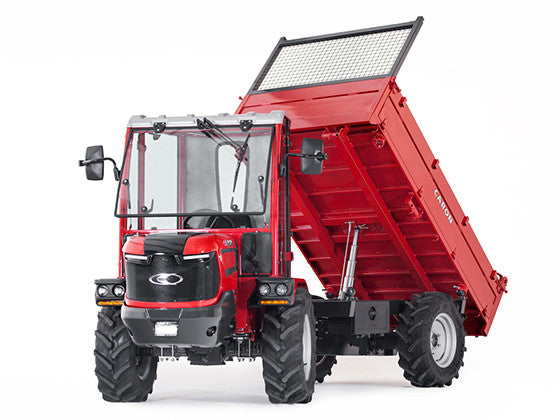

  • 3-way hydraulic dump body (2560x1470x400 mm) with protection grid
