Caron Series CTK

Caron Series CTK

Price on Request

Get in touch to discuss the Caron Series CTK with CTM experts to ensure the right solution for you.

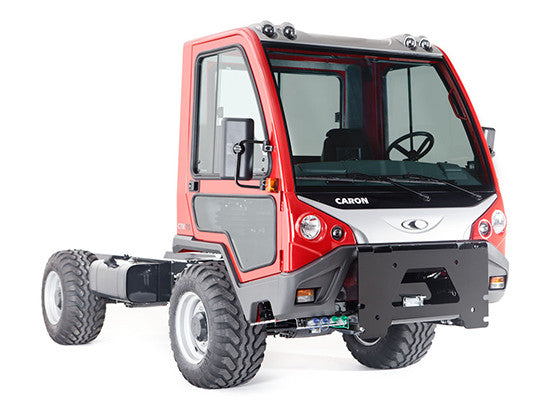

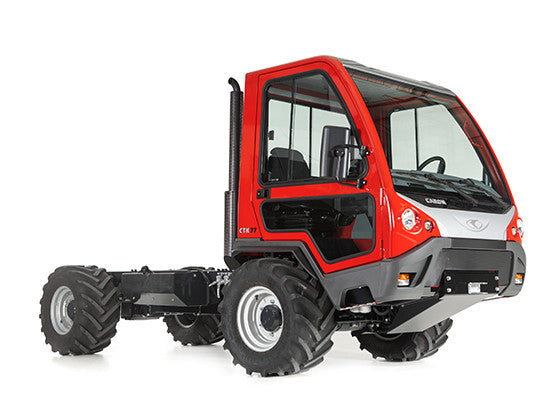

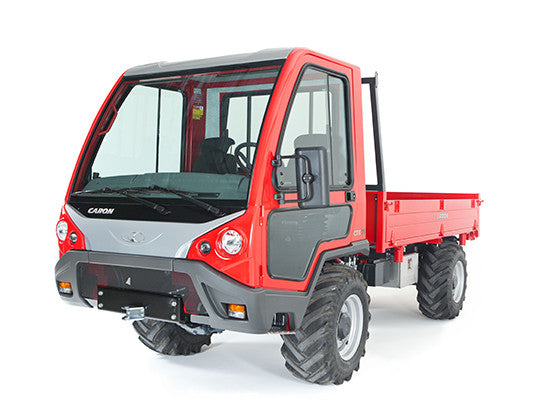

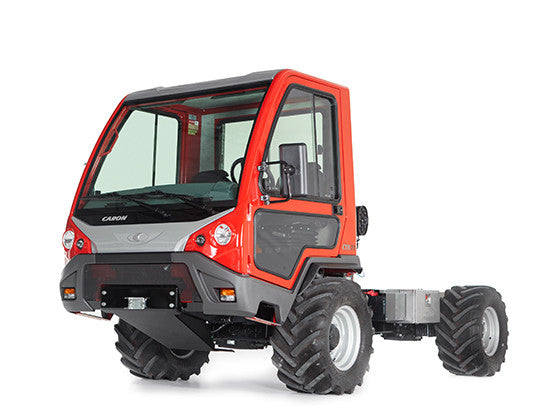

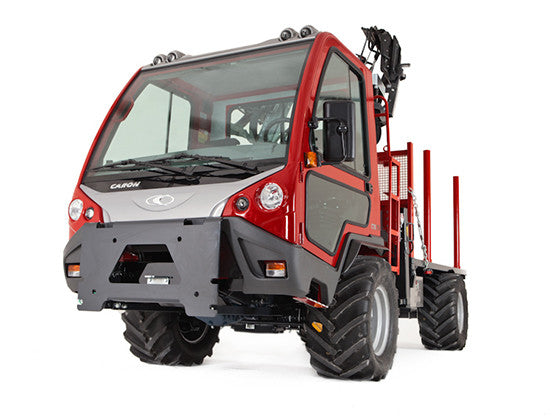

Series CTK - the newest addition to the range.  Reduced dimensions, high performance.

Same mechanical structure of the "older sisters".  Developed for those operators needing high performance and maximum work efficiency in very narrow places.

Engines of 75hp
Max speed 40 km/h
Total approved mass of 7,500 kg
Loading capacity up to 5,000 kg



European Approval as agricultural tractor with total mass 7,500 kg and towable mass of 1,000 kg (unbraked). Approved with passenger seat.

STANDARD FITTINGS

  • Dumping cab (forward) with doors and heating, approved as ROPS, mounted on shock absorbers and oil silent-blocs. With sliding rear glass.

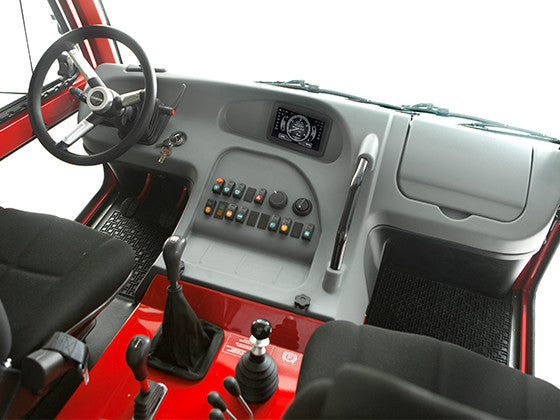

  • The 7” digital touch screen display provides all of the information for the proper use and maintenance of the vehicle.

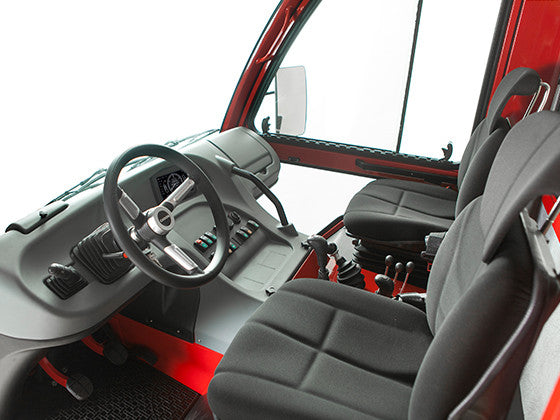

  • Adjustable fabric seats with mechanic suspensions, with safety belt
  • Battery master-switch
  • Toolbox
  • 24 speeds-synchronized gearbox, 12fwd/12rev, with synchronized Inverter, max speed 40 km/h
  • Front and rear axle without suspension
  • Central joint
  • 4x4 Drive with final planetary reduction gears and with electro-hydraulic disengagement of front drive
  • Electro-hydraulic front and rear differential locks
  • Hydraulic steering with adjustable steering wheel (height and inclination)
  • Brakes: dual hydraulic system on 4 wheels, with floating jaws
  • Parking spring brake on rear wheels acting with hand lever and hydraulic transmission
  • Mechanic PTO on rear axle (low outlet) with electro-hydraulic control, unified 1˝ 3/8, 540 RPM
  • Rear  drawbar hitch (fixed)
  • Wheelbase 2800 mm

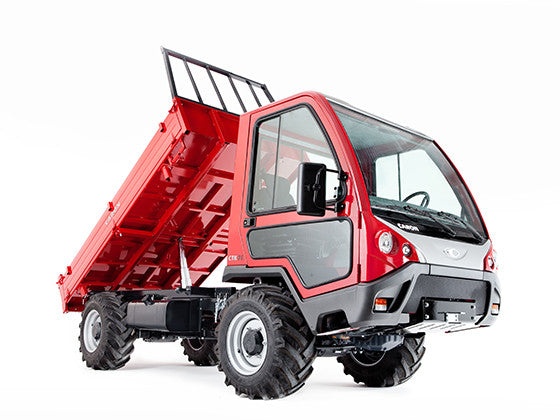

  • 3-way hydraulic dump body (3160x1720x400 mm) with protection grid
